D-Link DSL-2680 User Manual

52D-Link DSL-2680 User Manual
Chapter 4 - Advanced Setup

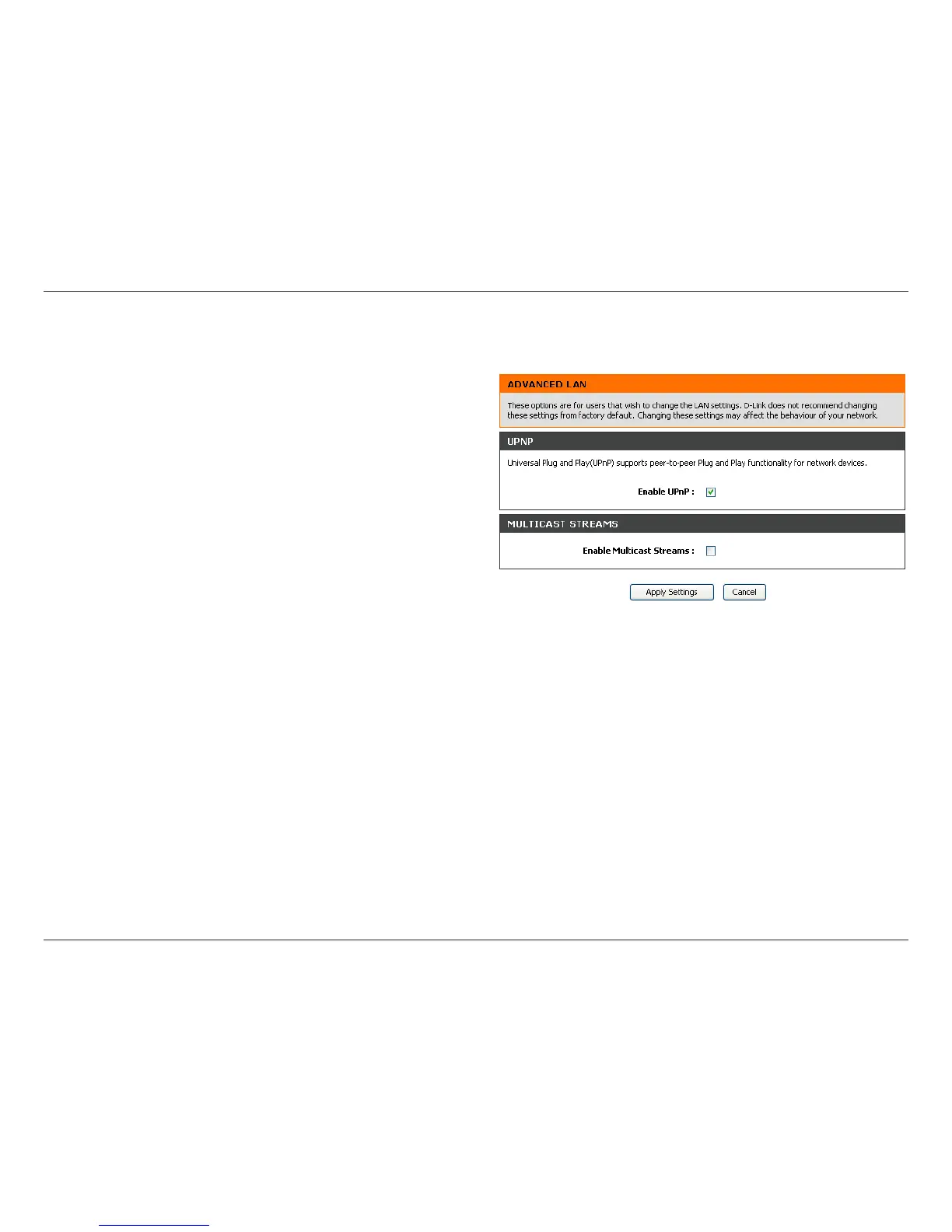

Advanced LAN
Use the Advanced LAN menu to enable or disable UPnP and multicast streaming.
UPnP or Universal Plug and Play is disabled by default. This network protocol is
used to simplify networking and is supported on many types of networking devices.
Devices that support UPnP advertise their services and capabilities to other UPnP
enabled devices to facilitate network applications such as streaming audio or video.
To use UPnP, tick the Enable UPnP check box.
Multicast streaming support is enabled by default to allow streaming of audio
and video and other multicast applications to pass through the Router. To disable
multicast streams, click the Enable Multicast Streams check box to remove the
tick. Keep in mind that Internet radio and similar multicast services will not function
if the Enable Multicast Streams option is not ticked.
Click the Apply Settings button to save and apply the advanced LAN conguration.
.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
