Chapter 3 - Setup

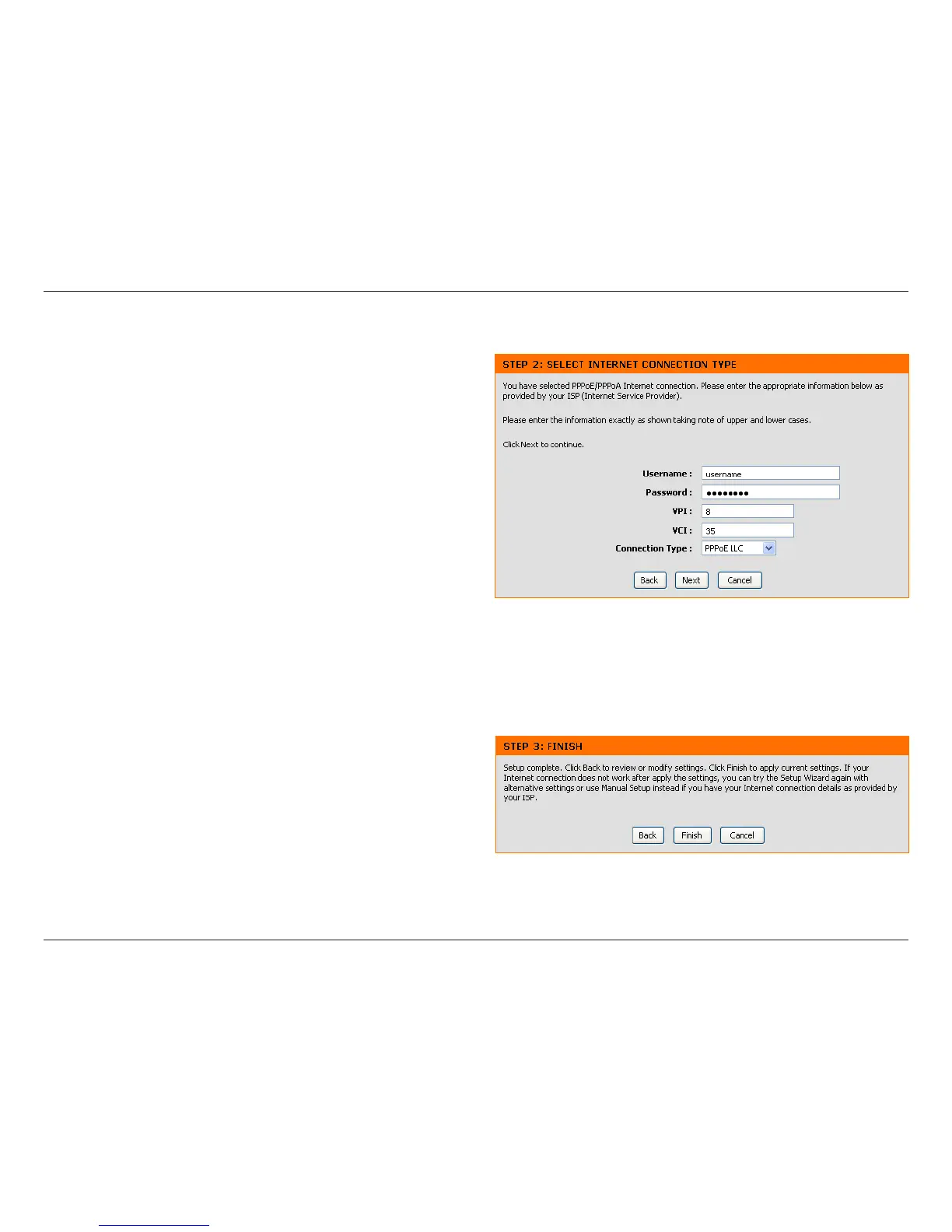

Setup Wizard Step 2: Internet Connection Type - PPPoE/PPPoA
Type in the Username and Password used to identify and verify your account to
the ISP.
If you are instructed to change the VPI or VCI number, type in the correct setting
in the available entry elds. Most users will not need to change these settings. The
Internet connection cannot function if these values are incorrect.
Some users may have to adjust the Connection Type from the drop-down menu.
Click Next to go to the last Setup Wizard menu.
Setup Wizard Step 3: Finish
Click the Finish button to save the conguration and restart the Router.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
