Chapter 3 - Setup

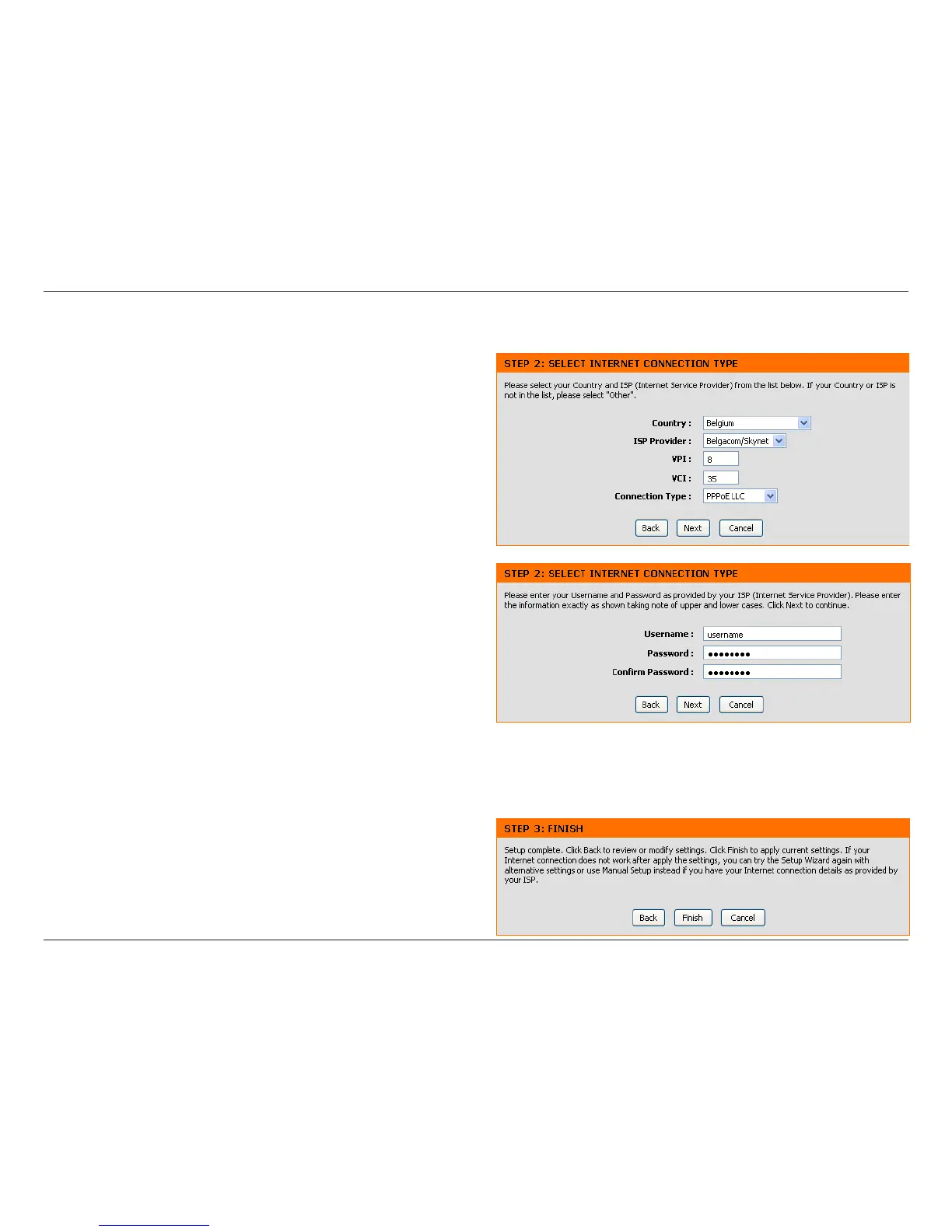

Setup Wizard Step 2: Internet Connection Type, Country and ISP
If your country appears listed in the Country menu options, select it and wait a few
seconds for the menu display to adjust. When the menu options reappear, there
will be options available to choose in the ISP Provider pull-down menu. Find your
ISP in the list, again the menu will be inoperable for a few seconds while it adjusts.
Some users will be required to select the Connection Type as well. If necessary,
choose the Connection Type and click the Next button and continue to congure the
connection as instructed by your ISP. If you are conguring a Bridged connection,
the Wizard will go to the Finish menu.
Many users will use a form of PPP connection. PPP connections require a Username
and Password to establish the Internet connection.
Setup Wizard Step 3: Finish
Click the Finish button to save the conguration and restart the Router.
After conguring the connection as instructed by your ISP, the Router will need to be restarted.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
