Chapter 4 - Advanced Setup

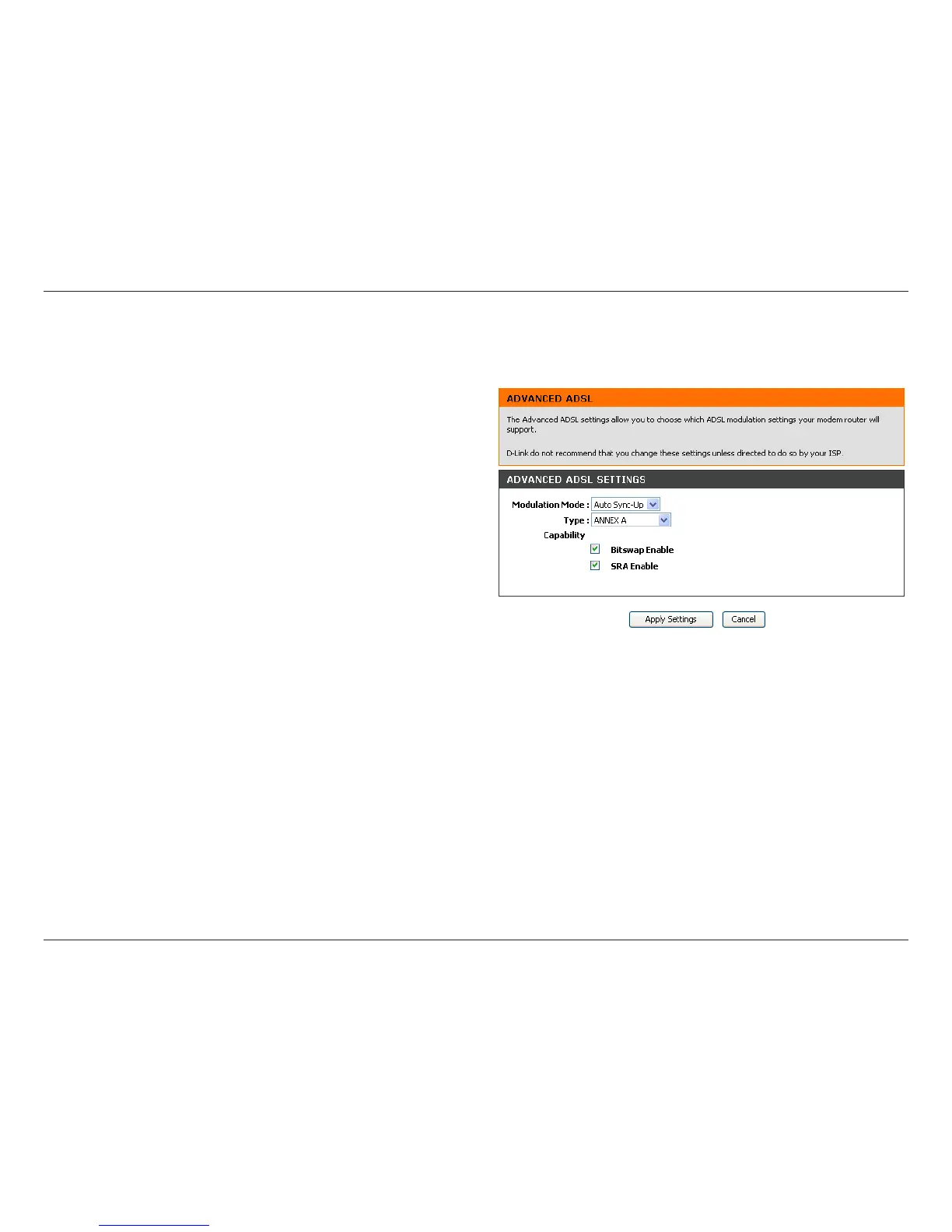

Advanced ADSL
ADSL modulation is congured in the Advanced ADSL menu. The default setting automatically detects the appropriate modulation for the connection, therefore it
should not be necessary to change this setting for the Router to function.
Modulation types supported by the Router include: ADSL2, ADSL2+, G.DMT T1.143
and G.lite. If the Modulation Mode is changed from the default Auto Synch-Up, the
mode used must be supported by the ISP in order for the ADSL signal to function.
Likewise for changing the ANNEX type, if the Type used is not supported by the
ISP in your region, the ADSL signal will not function.
The Bitswap and SRA (Seamless Rate Adaptation) features can be enabled here.
If your ADSL modulation is ADSL2 or ADSL2+, these features will only be useful if
supported by the ISP. If you opt to use either of these, some experimentation might
be advisable to test ADSL synchronization and signal performance for improvement
or degradation.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
