D-Link DSL-2680 User Manual

27D-Link DSL-2680 User Manual
Chapter 3 - Setup

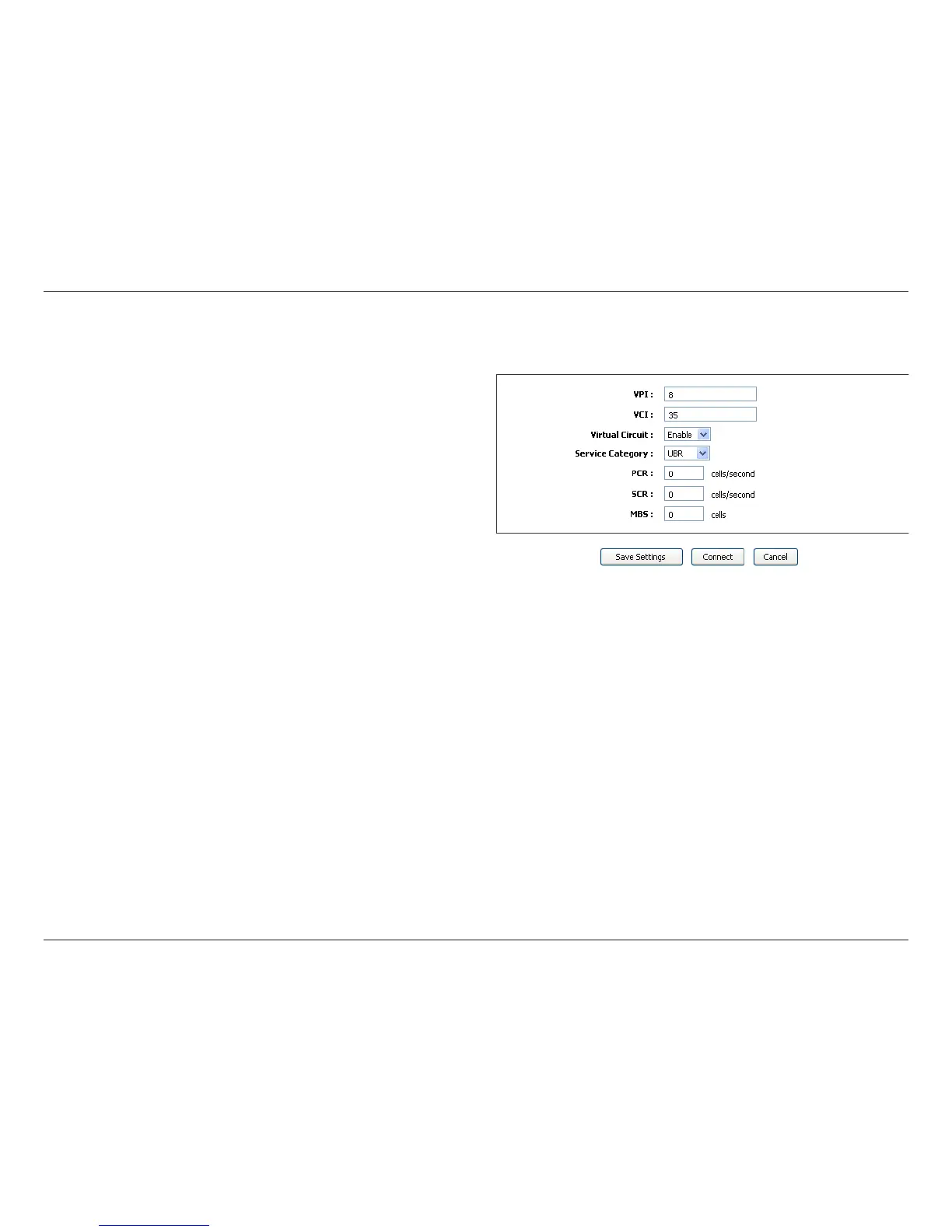

Congure VPI and VCI
Follow the instructions below to congure the virtual connection.
To congure the virtual connection, follow these steps:
1. Enter the values for the VPI and VCI given to you by your service provider.
2. Select Enable from the Virtual Circuit pull-down menu to make the connection
active. If you prefer to leave the connection inactive leave this as Disable, and
activate it when it is needed.
3. Choose the type of connection used for the virtual connection and congure the
settings according to the instructions of your service provider.
4. Click the Save Settings button to save the conguration. If you want to establish
the connection now, click the Connect button.
VPI - The Virtual Path Identier is used with the VCI to dene a dedicated circuit on the ATM network portion of the connection to the Internet and WAN. Most users
will not need to change this setting.
VCI - The Virtual Channel Identier is used with the VPI to dene a dedicated circuit on the ATM network portion of the connection to the Internet and WAN. Most
users will not need to change this setting.
Virtual Circuit - Use this to enable or disable the PVC you are currently conguring. By default, the PVC0 is set to Enable.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
