D-Link DSL-2680 User Manual

15D-Link DSL-2680 User Manual

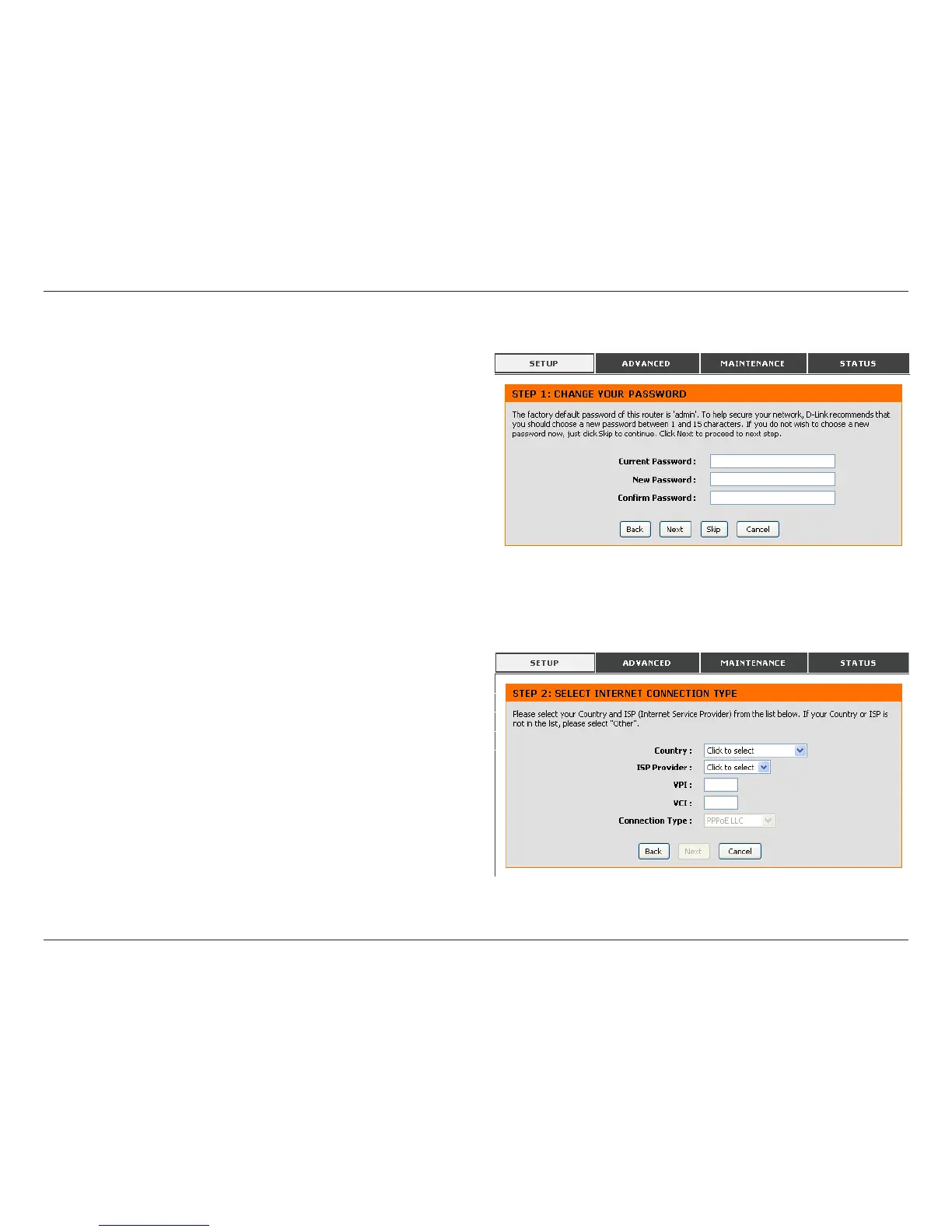

Chapter 3 - Setup
The password used for management access of the Router can be changed now if
desired. If you prefer to keep the existing password, click on the Skip button to go to
the next step without changing the password. Change the password and click Next
to set the new password and continue or click Skip to keep the existing password.
Setup Wizard Step 1: Change Password
Setup Wizard Step 2: Select Internet Connection Type
The new menu that appears is used to select the Internet connection type. Choose
your Country from the pull-down menu. If you see your country listed, follow the
instructions beginning on the next page. If you do not see your country listed, choose
Others and click Next, skip ahead to Setup Wizard Step 2: Internet Connection
– Other Connection Types.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
