Chapter 3 - Setup
WPS – Push Button method 2
The WPS Push Button technology requires a (virtual) button on your Wireless Client to establish a connection between the Router and your Wireless Client. Some
Wireless Clients work with a real button to activate the WPS Push Button technology; some Wireless Clients use a software-based virtual button.
Follow the steps below to activate and establish a WPS connection with the Push Button technology:

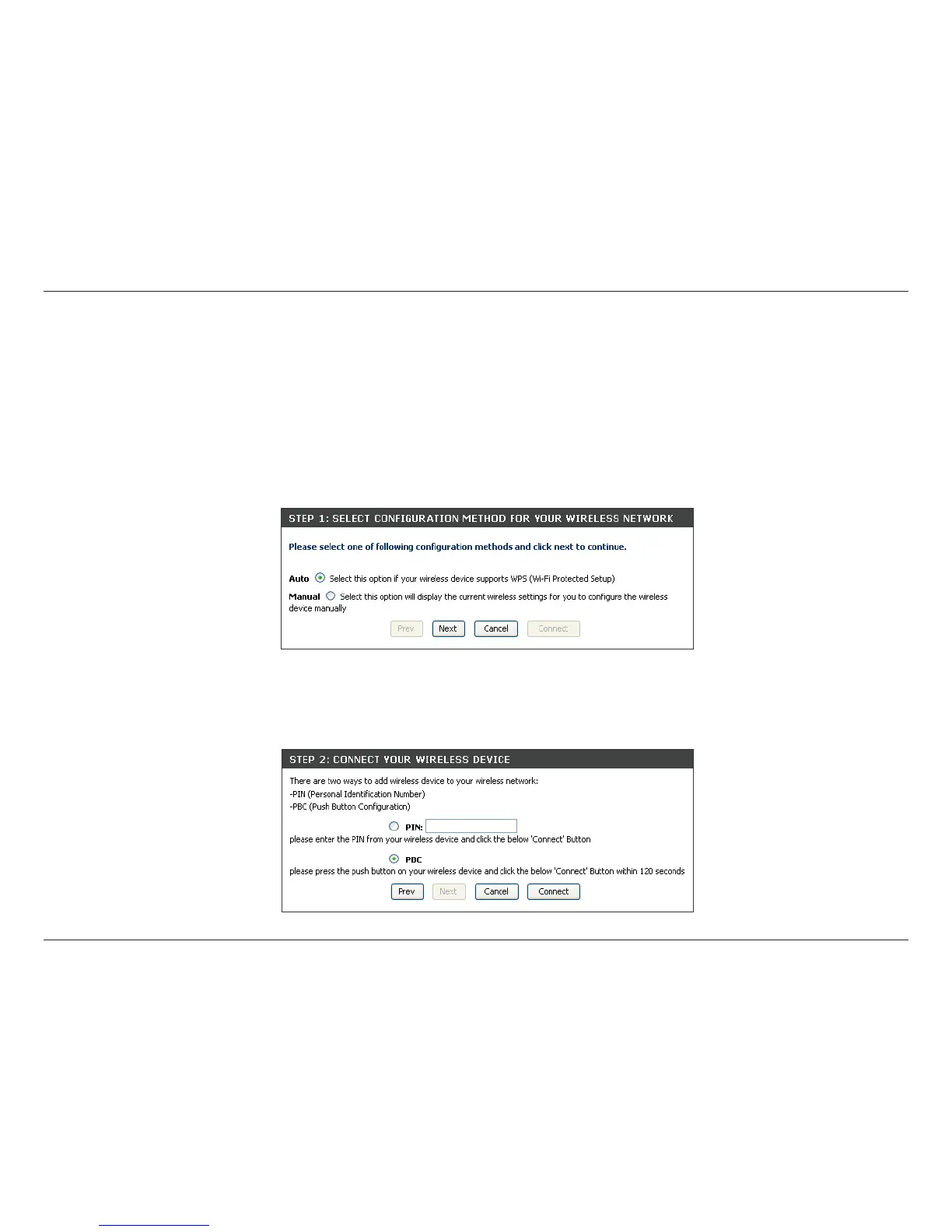

1. Click on the Add Wireless Device with WPS button in the Wireless Settings menu to launch the WPS (Wi-Fi Protected Setup) Wizard. Choose
the Auto option and click on the Next button.
Note: Click the Manual option to go to the manual conguration menu for wireless settings.
2. Choose the PBC option and click Connect.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
