4D-Link DSL-2680 User Manual
Chapter 1 - Overview

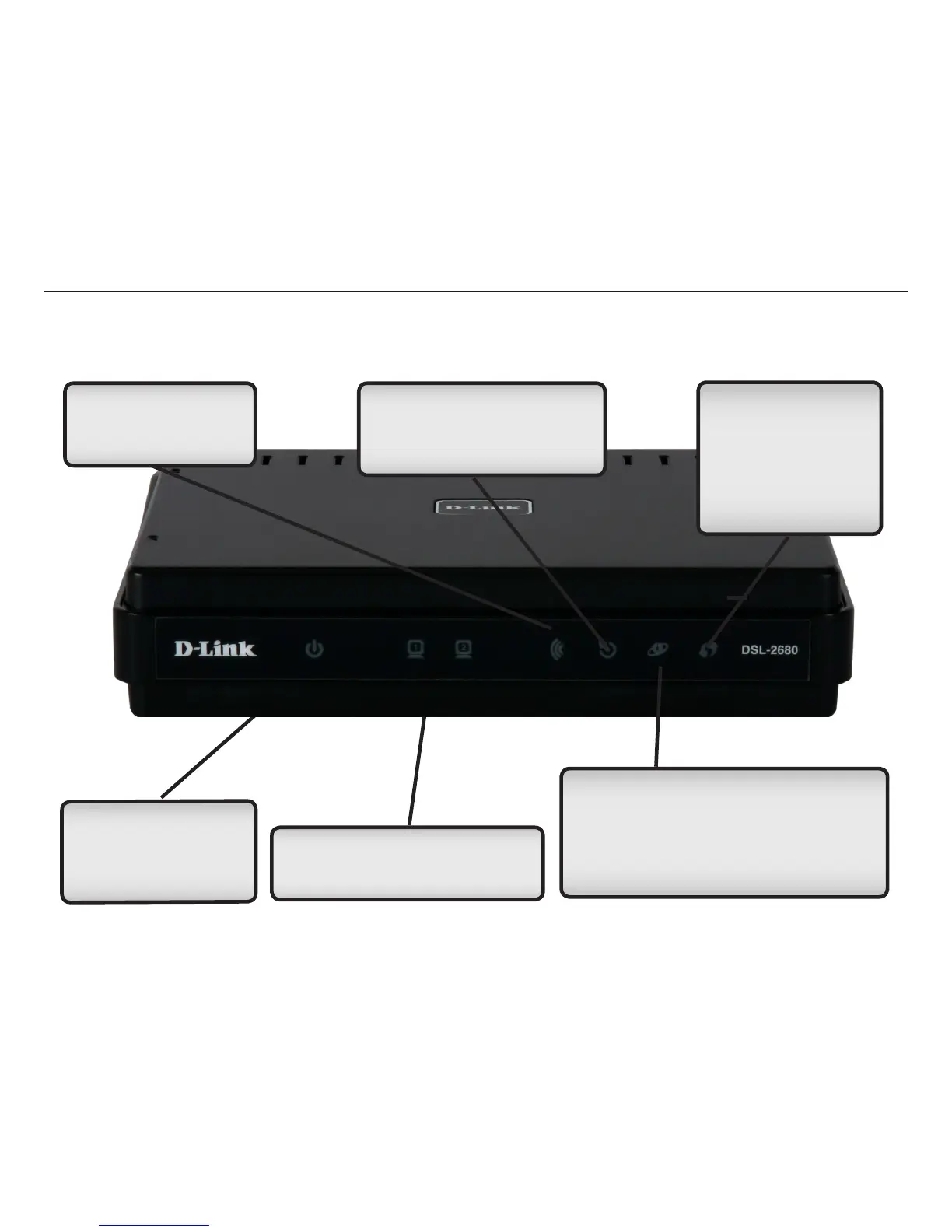

Front Panel - LED Indicators
Internet
A solid green light indicates that the WAN IP address from
IPCP or DHCP and DSL is up, or a static IP address is
configured and PPP negotiation has been successfully
completed. If the indicator blinks green, this means the Router
is active. If the Router power is off, this remains dark. A solid
red light indicates there is no DHCP response, no PPPoE
response, PPPoE authentication has failed, or there is no IP.
LAN
A solid green light indicates a valid link on startup.
This light will blink when there is activity currently
passing through the Ethernet port.
Power
A steady green light indicates the
unit is powered on. This remains
dark when power is off. A red
colored LED indicates system
failure.
WLAN
A steady green indicates a wireless
connection. A blinking green light
indicates activity on the wireless
LAN interface.
DSL
A steady green light indicates a valid ADSL
connection. This will light after the ADSL
negotiation process has been settled. A
blinking green light indicates the ADSL line
is in the process of synchronizing.
WPS
A steady green light indicates a
connection has been successfully
established between the Router
and the client. The LED will
remain solid for 5 seconds.
This light will blink when WPS
is successfully triggered. A dark
light means the device is ready
for new WPS setup.
