Chapter 3 - Setup
The rst menu of the Setup Wizard lists the basic steps in the process. These steps
are as follows:
1. Change the Router’s login password.
2. Congure the Internet connection
3. Finish.
Click Next to continue conguring the Router.

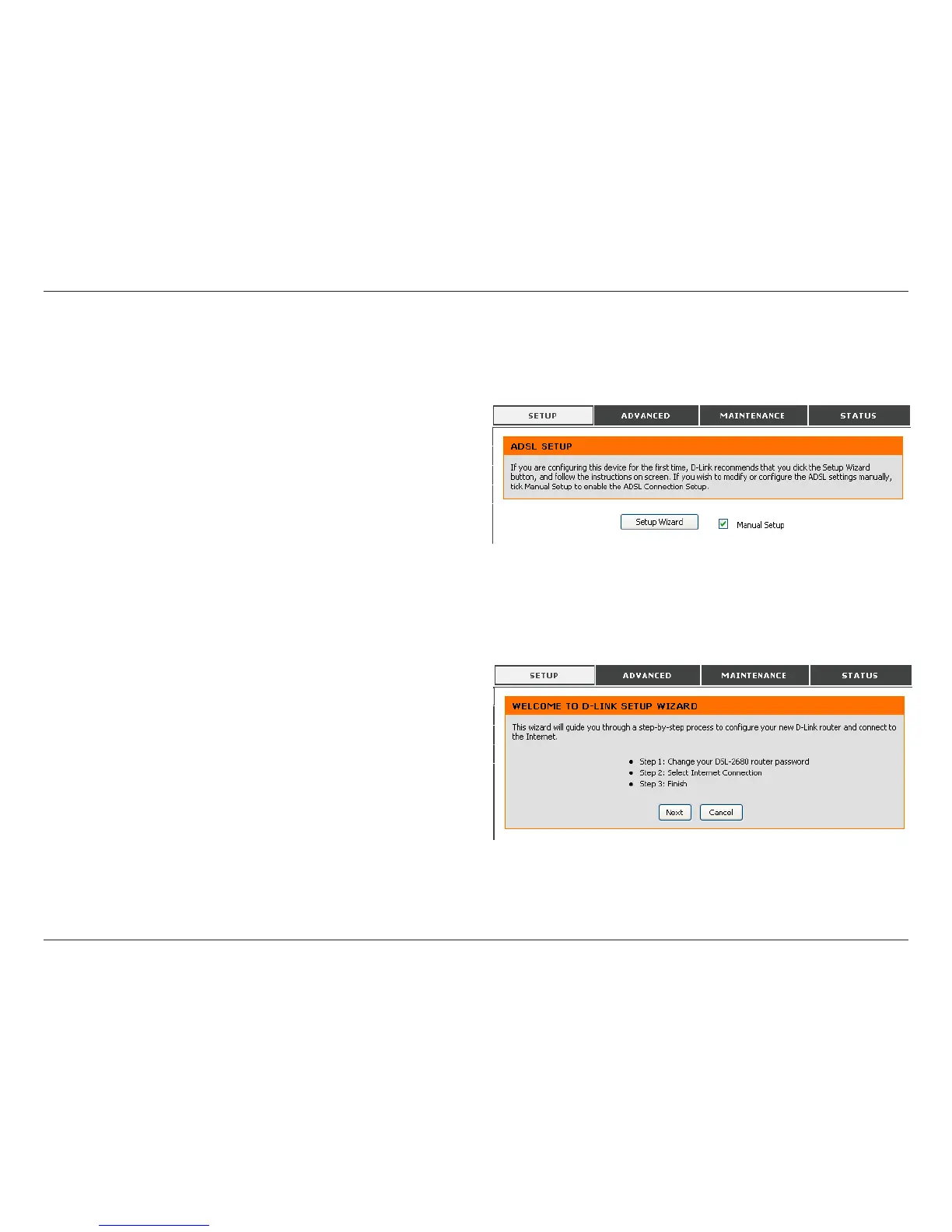

ADSL Setup - Setup Wizard
Go to the Setup directory to view the ADSL Setup menu.
To use the Setup Wizard, click the Setup Wizard button in the rst browser menu
and follow the instructions in the menus that appear.
The initial menu summarizes the setup process. Click the Next button to proceed.
You may stop using the Setup Wizard at any time by clicking the Cancel button. If
you exit the wizard you will return to the ADSL Setup menu without saving any of
the settings changed during the process
The quickest way for most users to establish the Internet connection is to use the Setup Wizard accessed from the ADSL Setup menu. Alternatively the WAN
connection can be set up manually by selecting the Manual Setup option and using the ADSL Setup menu to congure the device (described in ADSL Setup –
Manual Conguration below).

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
