Chapter 3 - Setup

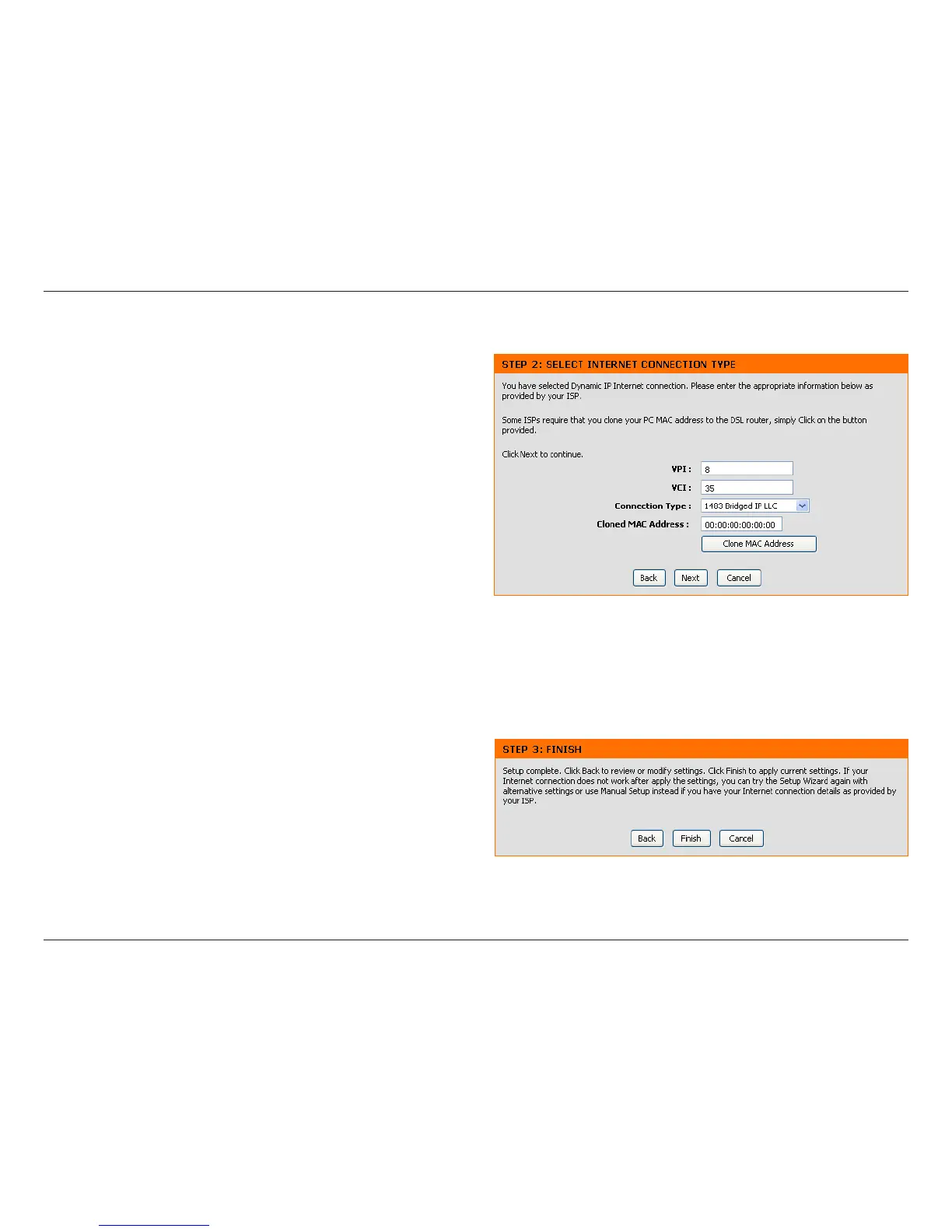

Setup Wizard Step 2: Internet Connection Type - Dynamic IP Address
If you are instructed to change the VPI or VCI numbers, type in the correct setting
in the available entry elds. Most users will not need to change these settings. The
Internet connection cannot function if these values are incorrect.
Select the specic Connection Type from the drop-down menu. You may want to
copy the MAC address of your Ethernet adapter to the Router. Some ISPs record
the unique MAC address of your computer’s Ethernet adapter when you rst access
their network. This can prevent the Router (which has a different MAC address)
from being allowed access to the ISPs network (and the Internet). To clone the MAC
address of your computer’s Ethernet adapter, type in the MAC address in the Cloned
MAC Address eld and click the Clone MAC Address button. This will copy the
information to a le used by the Router to present to the ISP’s server used for DHCP.
Click Next to go to the last Setup Wizard menu.
Setup Wizard Step 3: Finish
Click the Finish button to save the conguration and restart the Router.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
