VPI: Virtual path identifier (VPI) is the virtual path between two
points in an Asynchronous Transfer Network (ATM) network. Its
valid value is between 0 and 255. Enter the correct VPI provided
by your ISP.
VCI: Virtual channel identifier (VCI) is the virtual channel between
two points in an ATM network. Its valid value is between 32 and
65535. Enter the correct VCI provided by your ISP.
Virtual Circuit: Enable or disable virtual circuit.
Service Category: Select the Service Category your ISP uses. The options are CBR,
UBR, nrtVBR (non-realtime VBR), or rtVBR (realtime VBR)
PCR: Enter the Peak Cell Rate
If you selected nrtVBR or rtVBR congure the the following options:
SCR: Enter the Sustainable Cell Rate.
MBS: Enter the Maximum Burst Size.
If IPv6 is selected as the Connection IP Version, proceed to Dual Stack Lite on page 31.
Otherwise, click Save Settings or Connect to test your settings. Setup is complete.

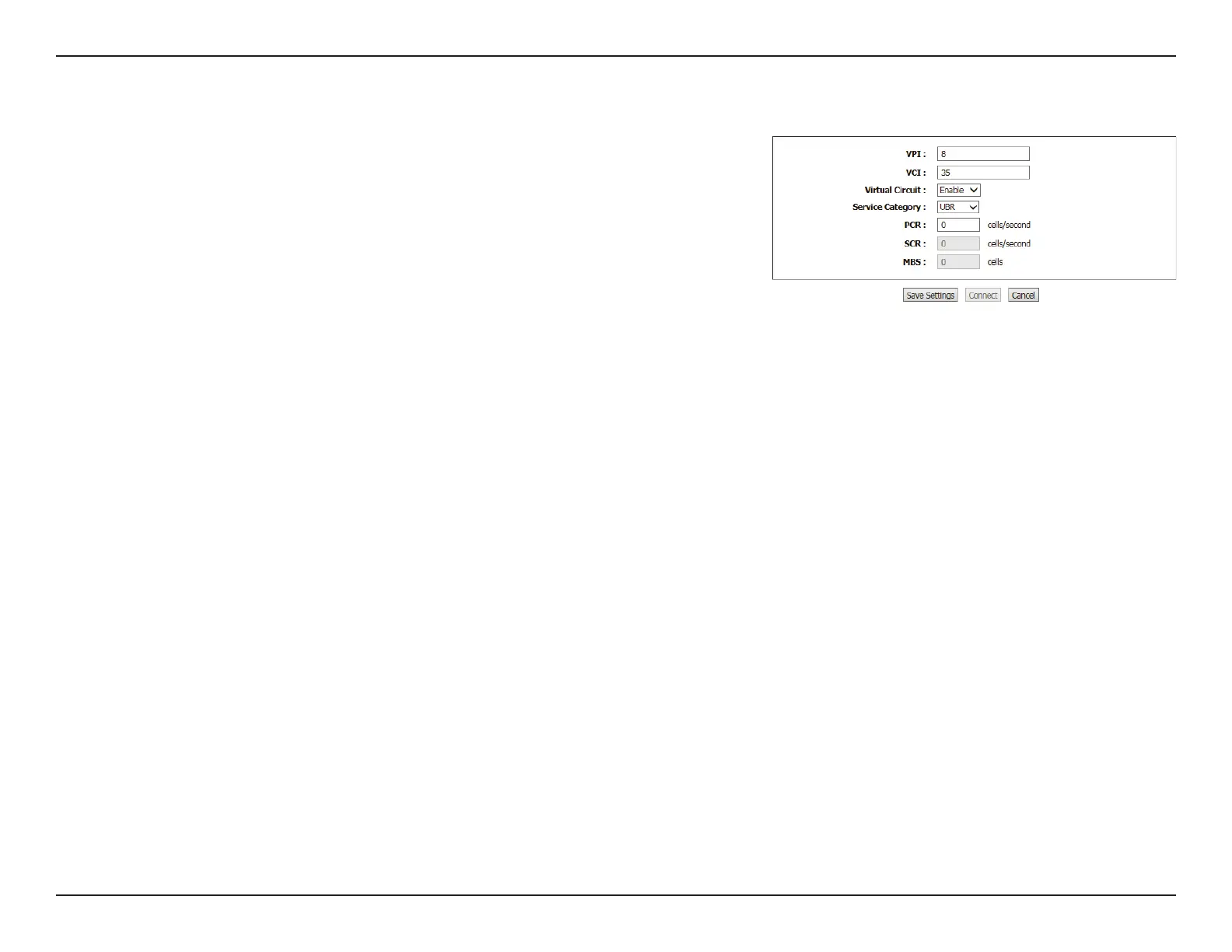

Virtual Circuit Settings
Once you have congured your ISP’s connection type, congure the Virtual Circuit Settings:

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
