Section 4 - Connecting to a Wireless Network

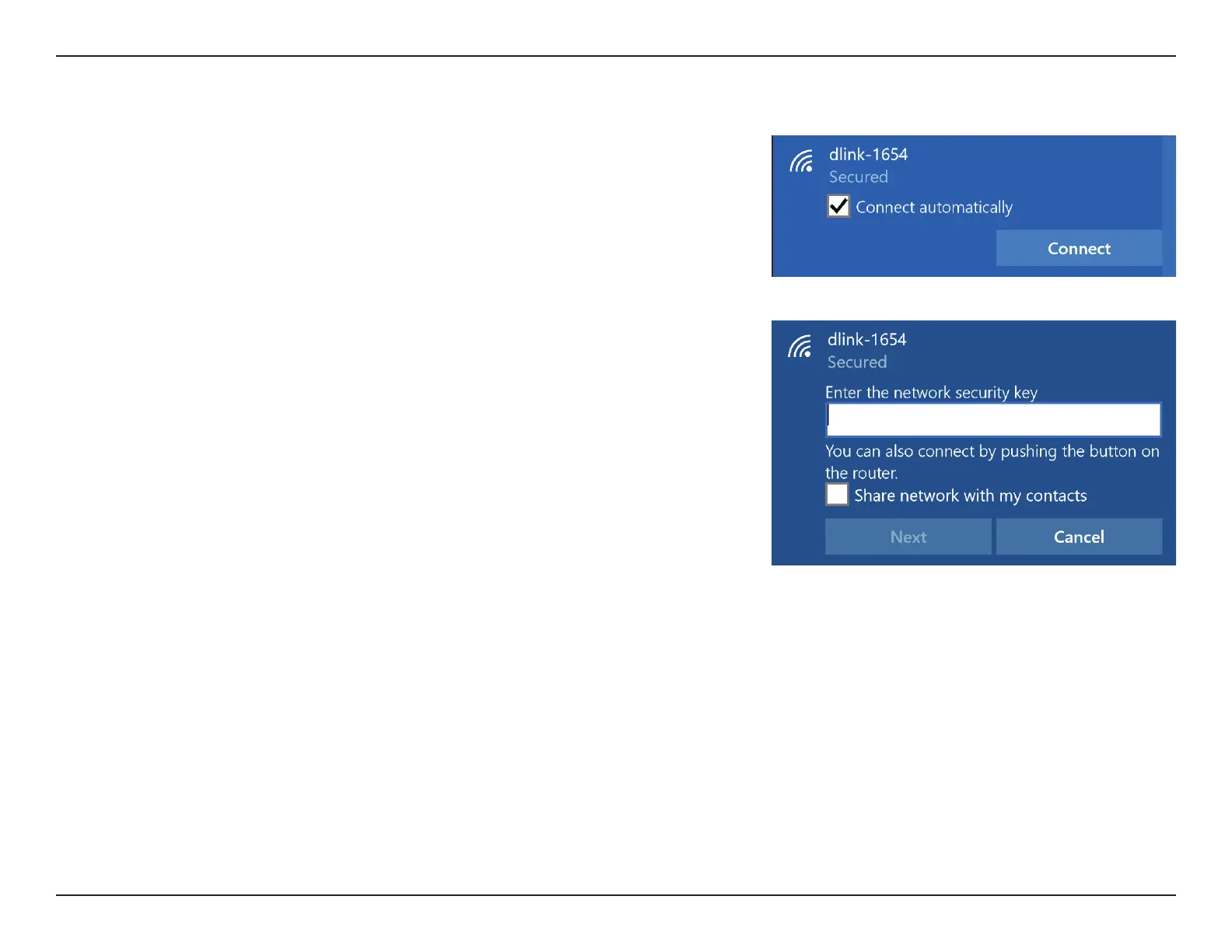

To connect to the SSID, click Connect.
To automatically connect to the router when your device detects the SSID, click the Connect
Automatically check box.
You will then be prompted to enter the Wi-Fi password (network security key) for the wireless
network. Enter the password into the box and click Next to connect to the network. Your
computer will now automatically connect to this wireless network when it is detected.
You can also use Wi-Fi Protected Setup (WPS) to connect to the router. Press the WPS button
on your D-Link device and you will be automatically connected.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
