D-Link DSL-2740M User Manual

82D-Link DSL-2740M User Manual
Section 4 - Connecting to a Wireless Network

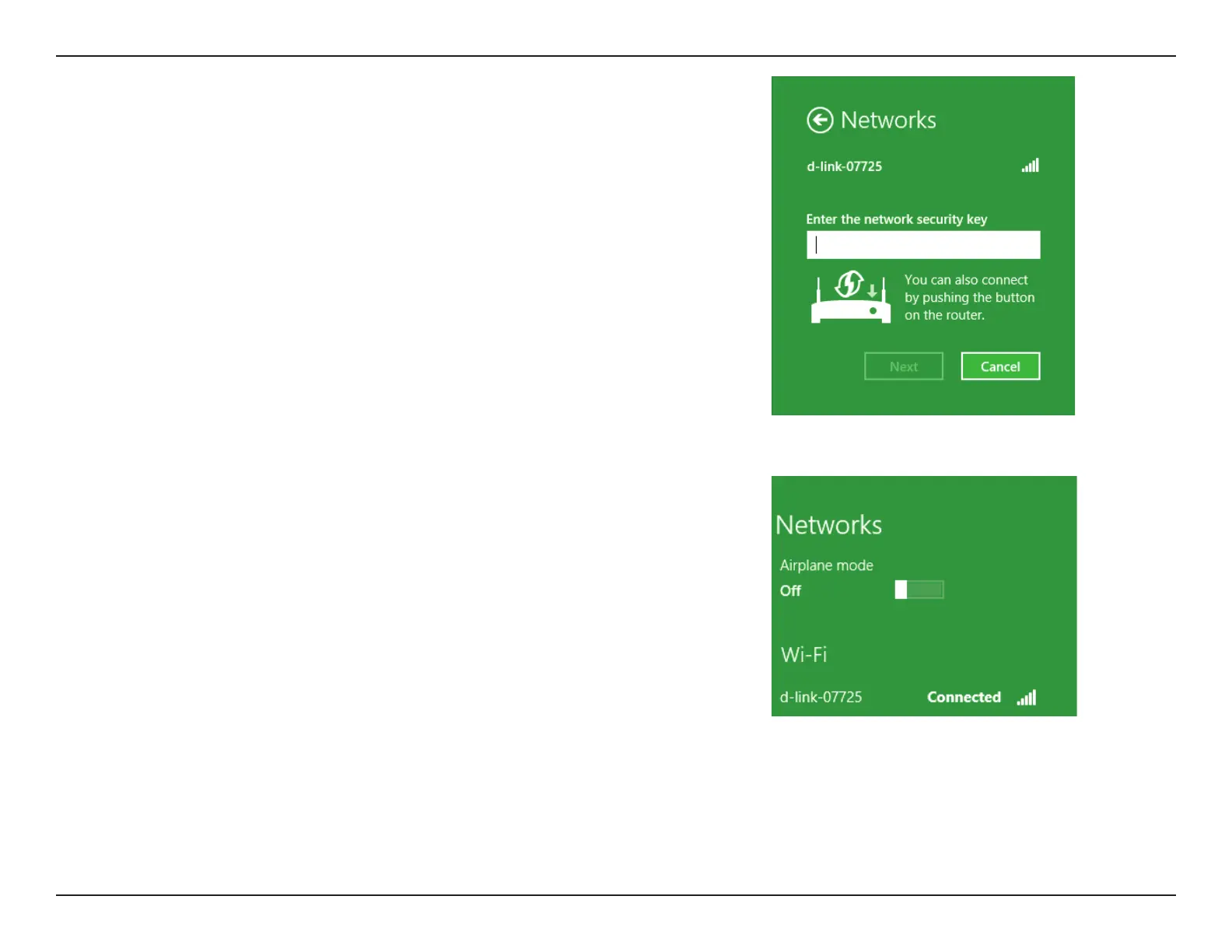

You will then be prompted to enter the network security key (Wi-Fi password) for the wireless
network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also press
the WPS button on your router during this step to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected to.

D-Link DSL-2740M Specifications

Ports & Interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4
Wireless Interface	IEEE 802.11n/g/b

Wireless Specifications

Wireless Bandwidth Rate IEEE 802.11b	11, 5.5, 2, and 1 Mbps
Wireless Bandwidth Rate IEEE 802.11g	54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Wireless Bandwidth Rate IEEE 802.11n 20 MHz	150, 130, 117, 104, 78, 52, 39, 26, 13 Mbps
Wireless Bandwidth Rate IEEE 802.11n 40 MHz	300, 270, 243, 216, 162, 108, 81, 54, 27 Mbps

Operating Environment

Operating Humidity	0% to 90% non-condensing
Non-Operating Humidity	5% to 95% non-condensing
Operating Temperature	0 to 40 °C (32 to 104 °F)
Non-Operating Temperature	-20 to 65 °C (-4 to 149 °F)

Power

Input Voltage	100~240 V AC (±20%), 50/60 Hz
Output Voltage	12 V DC
Output Current	0.5 A

Weight and Dimensions

Dimensions	160 x 120 x 25 mm (6.30 x 4.72 x 0.98 inches)
Weight	205 grams (7.2 ounces)
