5D-Link DSL-2790U Wireless N300 ADSL2+ Modem Router User Manual
Section 1 - Product Overview
Hardware Overview

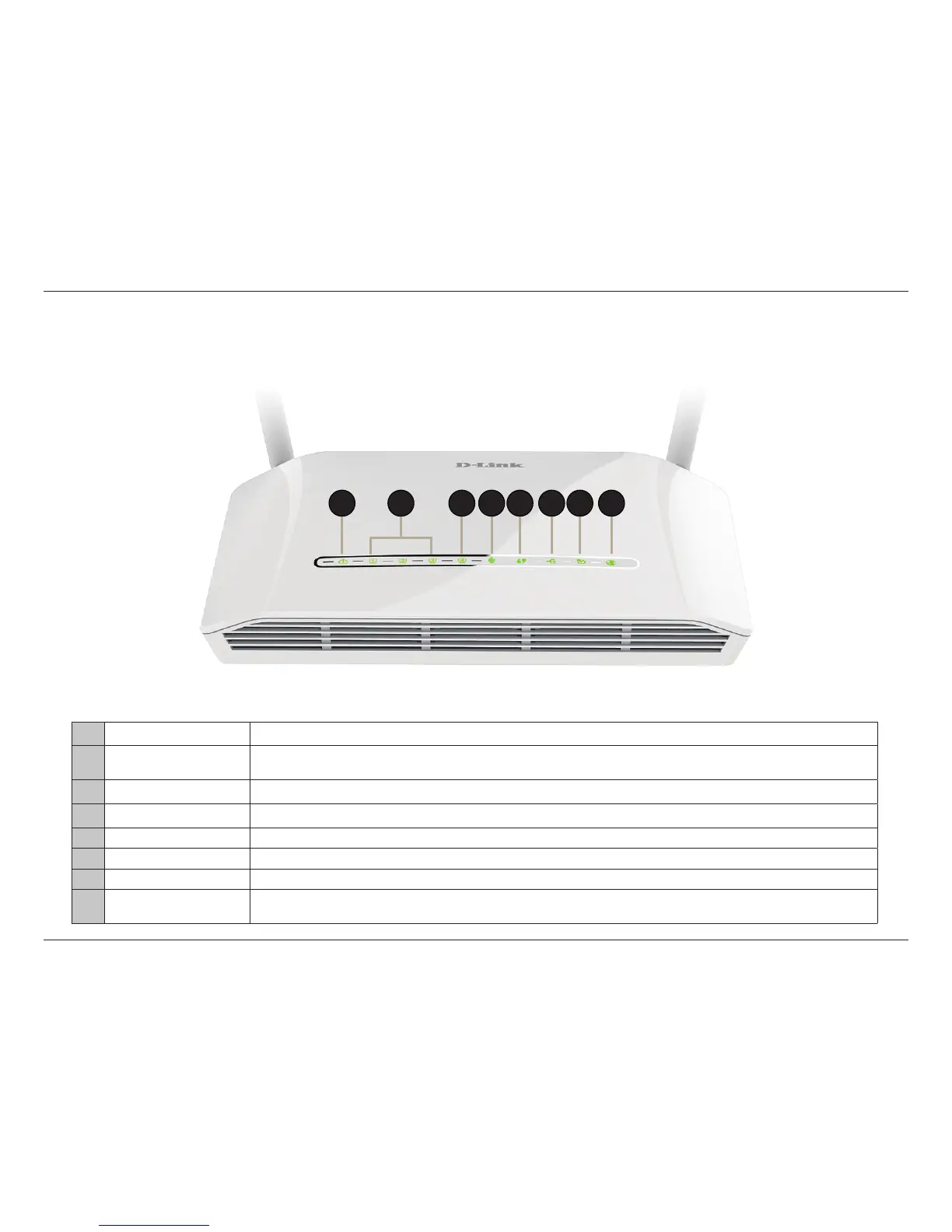

Front LED Panel
1 Power LED A solid green light indicates the unit is powered on. A red light indicates device malfunction.
2 LAN LEDs 1-3 A solid green light indicates a connection to a device. The light will blink during data transmission.
3 LAN4/WAN A solid green light indicates a connection to a device. The light will blink during data transmission.
4 WLAN LED A solid green light indicates that the Wi-Fi is ready.
5 WPS LED The light will blink during the WPS process.
6 USB LED A solid green light indicates a connection to a USB device.
7 DSL LED A solid green light indicates a proper connection to the ADSL enabled telephone line.
8 Internet
A solid green light indicates a proper connection to a broadband service. A red light indicates that IP
assignment has failed.
2 51 43
5
6 7 8
