6D-Link DSL-2790U Wireless N300 ADSL2+ Modem Router User Manual
Section 1 - Product Overview

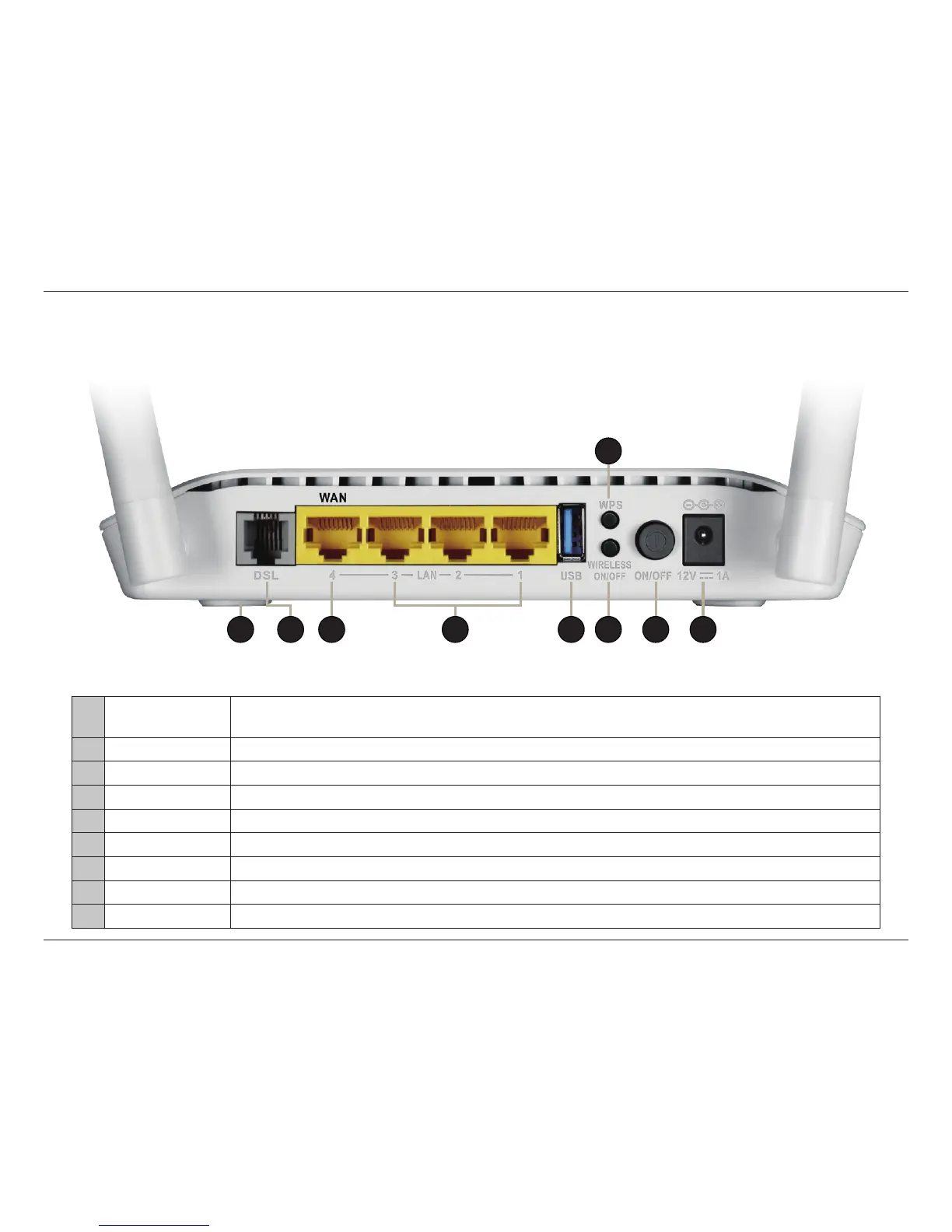

Hardware Overview
Back
1 Reset Button
Insert a paperclip in the hole on the bottom of the device located the serial number sticker and wait for
several seconds to reset the router to default settings.
2 DSL Port Connect to an DSL-enabled telephone line and with the supplied microlter/splitter.
3 WAN/LAN Port 4 This user-congurable Ethernet port may act as either a LAN Port or WAN port.
4 LAN Ports (1-3) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
5 USB Port Connect a USB storage device to this port to share media to your network.
6 Wireless On/O Press and hold this button for about 10 seconds to enable or disable the Wi-Fi network.
7 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
8 Power Button Press to power the router on or o.
9 Power Connector Connector for the supplied power adapter.
4 8 91 2 5 6
7
3
