D-Link DSL-2790U User Manual

9D-Link DSL-2790U Wireless N300 ADSL2+ Modem Router User Manual
Section 2 - Installation
1

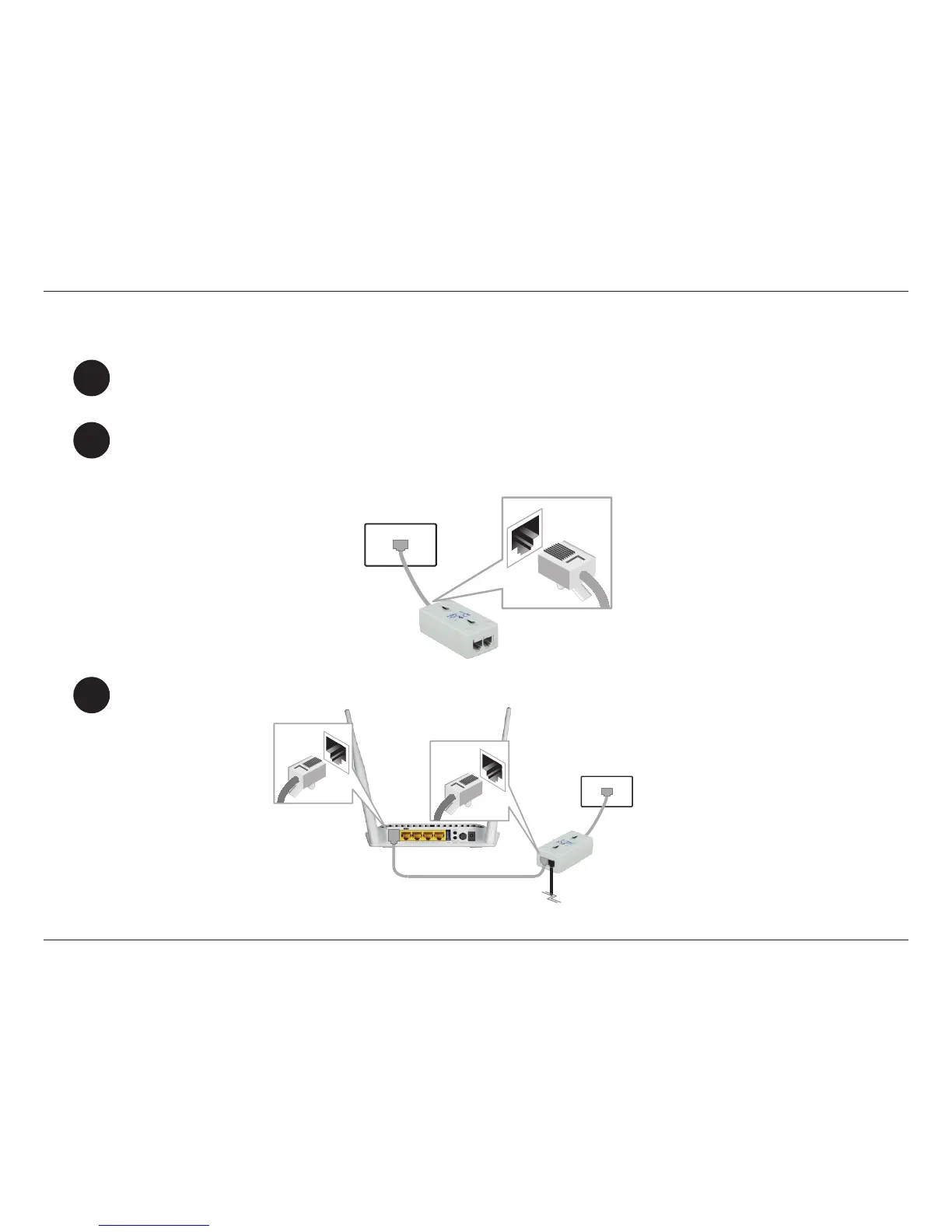

Connect your existing phone cable from a telephone outlet to the LINE port on the microsplitter and your
telephone handset into the PHONE port.
2
3
Connect the Phone cable from the DSL port on the microsplitter to the DSL port of the modem router.
Microlter
Telephone Outlet
PHONE
Phone Cable
DSL-2790U
Microlter
Position your router close to a wall jack which provides DSL service. Place the router in an open area of your
intended work area for better wireless coverage.
Manual Setup
Caution: - To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.

D-Link DSL-2790U Specifications

Ports & interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4 x 10/100BASE-TX
USB port	1 x USB 2.0

Power

Input voltage	100~240 V (±20%)
Input frequency	50~60 Hz
Output voltage	DC 12 V
Output current	1 A

Operating Environment

Operating temperature	0 to 40 °C (32 to 104 °F)
Non-operating temperature	-20 to 65 °C (-4 to 149 °F)
Operating humidity	0% - 90% non-condensing
Non-operating humidity	5% - 95% non-condensing

Weight and Dimensions

Dimensions	68 x 42 x 51 mm (2.68 x 1.65 x 2 inches)
Weight	113.4 grams (4 ounces)
