D-Link DSL-2790U User Manual

86D-Link DSL-2790U Wireless N300 ADSL2+ Modem Router User Manual
Section 4 - Conguration

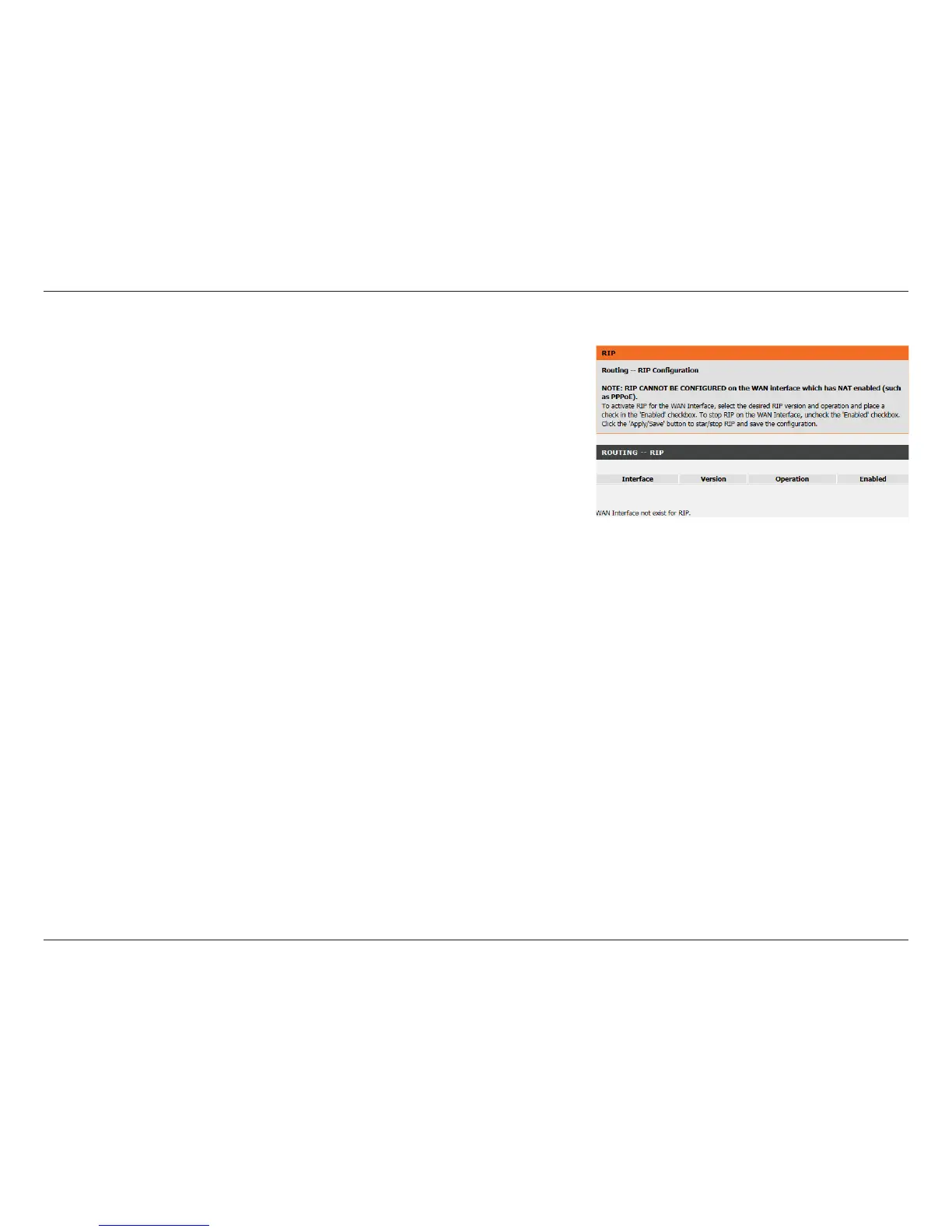

RIP
From this page advanced users can congure the router to use the Routing Internet Protocol
(RIP). RIP is an Internet protocol you can set up to share routing table information with other
routing devices on your LAN, at your ISP’s location, or on remote networks connected to
your network via the ADSL line.

D-Link DSL-2790U Specifications

Ports & interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4 x 10/100BASE-TX
USB port	1 x USB 2.0

Power

Input voltage	100~240 V (±20%)
Input frequency	50~60 Hz
Output voltage	DC 12 V
Output current	1 A

Operating Environment

Operating temperature	0 to 40 °C (32 to 104 °F)
Non-operating temperature	-20 to 65 °C (-4 to 149 °F)
Operating humidity	0% - 90% non-condensing
Non-operating humidity	5% - 95% non-condensing

Weight and Dimensions

Dimensions	68 x 42 x 51 mm (2.68 x 1.65 x 2 inches)
Weight	113.4 grams (4 ounces)
