D-Link DSL-2790U User Manual

24D-Link DSL-2790U Wireless N300 ADSL2+ Modem Router User Manual
Section 4 - Conguration

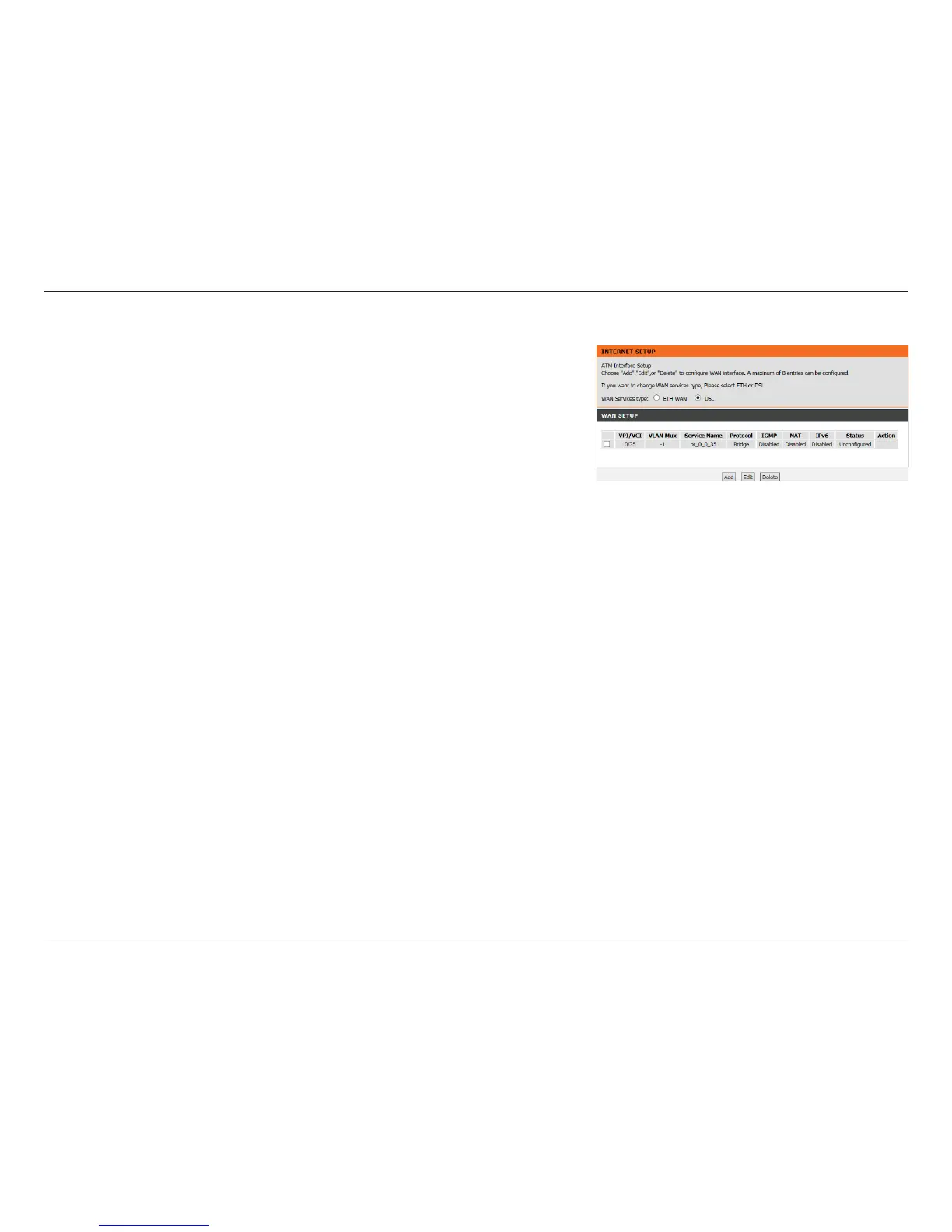

Internet Setup
Click Internet Setup on the left menu to congure your connection manually.
This section is only recommended for advanced users. It is recommended to
use the Setup Wizard to set up your Internet connection.
Select whether to use an Ethernet WAN connection or DSL connection.
Click the Add button to reveal the DSL/Ethernet WAN conguration options,
or click Edit to change an existing conguration. Click Delete to remove a
connection.
For instructions on adding an Ethernet WAN connection refer to Add an
Ethernet WAN Connection on page 25.
For instructions on adding a DSL connection refer to Add a DSL WAN
Connection on page 30.

D-Link DSL-2790U Specifications

Ports & interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4 x 10/100BASE-TX
USB port	1 x USB 2.0

Power

Input voltage	100~240 V (±20%)
Input frequency	50~60 Hz
Output voltage	DC 12 V
Output current	1 A

Operating Environment

Operating temperature	0 to 40 °C (32 to 104 °F)
Non-operating temperature	-20 to 65 °C (-4 to 149 °F)
Operating humidity	0% - 90% non-condensing
Non-operating humidity	5% - 95% non-condensing

Weight and Dimensions

Dimensions	68 x 42 x 51 mm (2.68 x 1.65 x 2 inches)
Weight	113.4 grams (4 ounces)
