Section 6 - Connecting To Your Wireless Network
Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with
connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

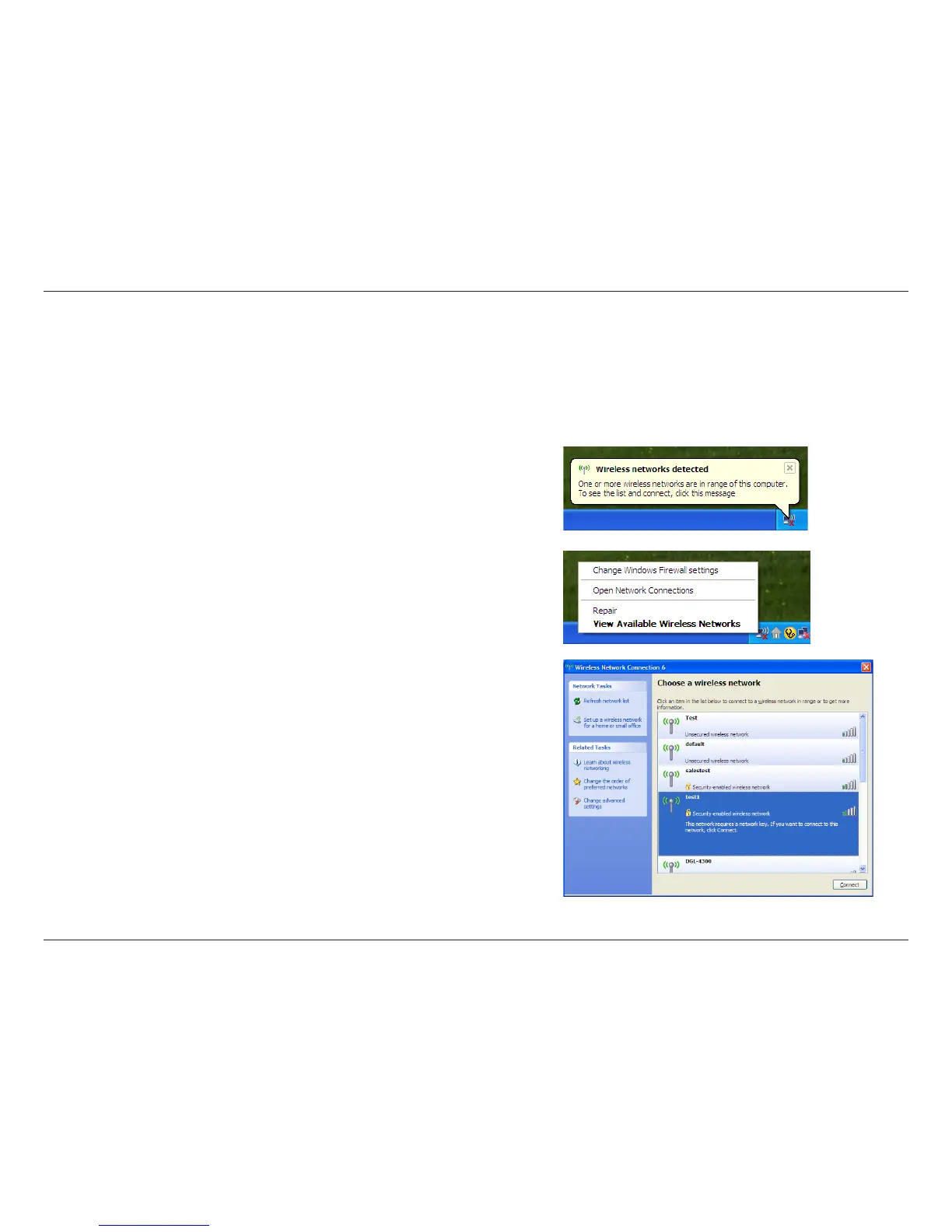

Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a Wi-Fi network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.

D-Link DSL-2790U Specifications

Ports & interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4 x 10/100BASE-TX
USB port	1 x USB 2.0

Power

Input voltage	100~240 V (±20%)
Input frequency	50~60 Hz
Output voltage	DC 12 V
Output current	1 A

Operating Environment

Operating temperature	0 to 40 °C (32 to 104 °F)
Non-operating temperature	-20 to 65 °C (-4 to 149 °F)
Operating humidity	0% - 90% non-condensing
Non-operating humidity	5% - 95% non-condensing

Weight and Dimensions

Dimensions	68 x 42 x 51 mm (2.68 x 1.65 x 2 inches)
Weight	113.4 grams (4 ounces)
