D-Link DSL-2790U User Manual

70D-Link DSL-2790U Wireless N300 ADSL2+ Modem Router User Manual
Section 4 - Conguration

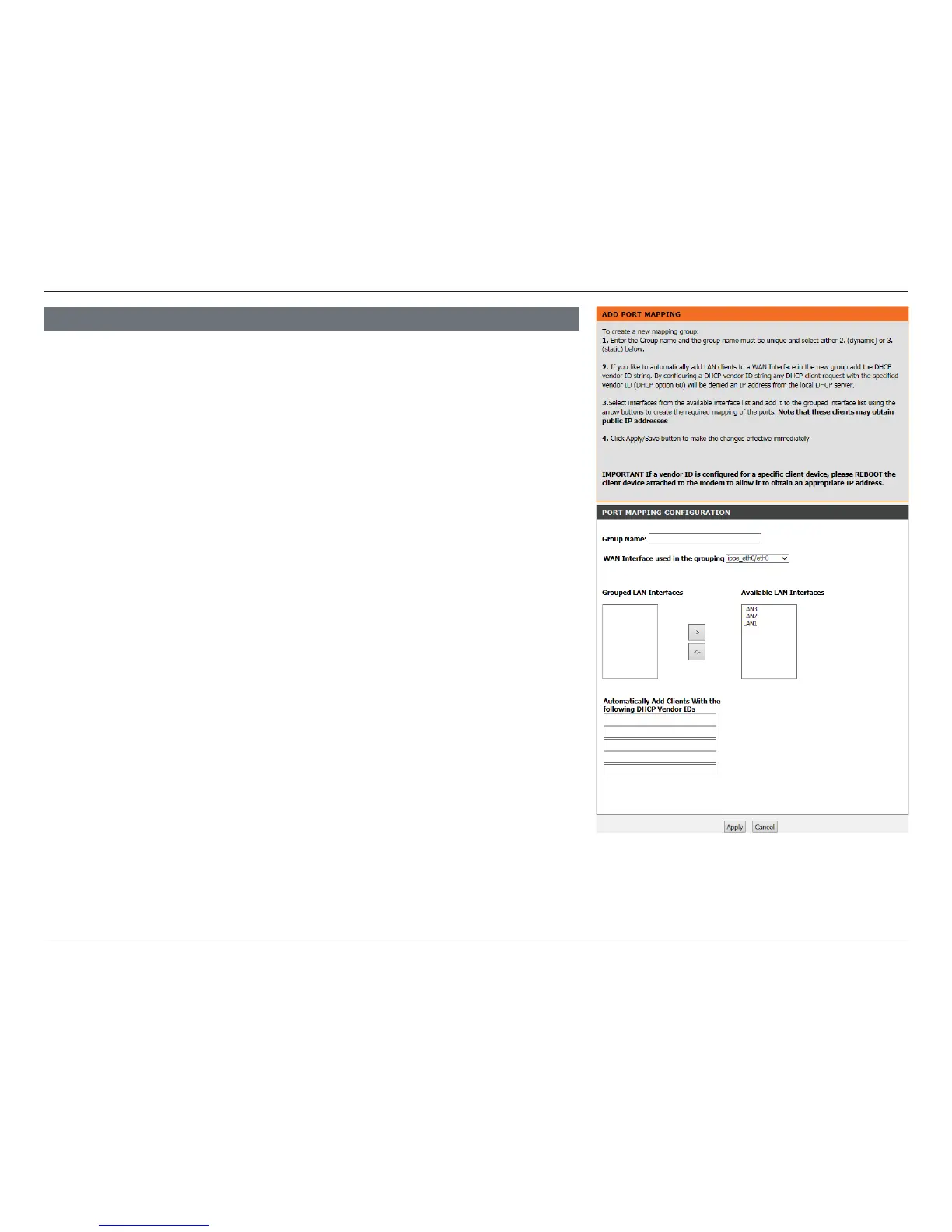

PORT MAPPING CONFIGURATION
Enter the Group Name. Next, select a WAN Interface you wish to use for the group. Finally,
from the Available LAN Interfaces box, click the left arrow to move any LAN interfaces
you want to include in the group into the Grouped LAN Interfaces box.
Click Apply when you are done.

D-Link DSL-2790U Specifications

Ports & interfaces

RJ-11 ADSL port	1
RJ-45 Ethernet ports	4 x 10/100BASE-TX
USB port	1 x USB 2.0

Power

Input voltage	100~240 V (±20%)
Input frequency	50~60 Hz
Output voltage	DC 12 V
Output current	1 A

Operating Environment

Operating temperature	0 to 40 °C (32 to 104 °F)
Non-operating temperature	-20 to 65 °C (-4 to 149 °F)
Operating humidity	0% - 90% non-condensing
Non-operating humidity	5% - 95% non-condensing

Weight and Dimensions

Dimensions	68 x 42 x 51 mm (2.68 x 1.65 x 2 inches)
Weight	113.4 grams (4 ounces)
