D-Link DWR-922 User Manual

11D-Link DWR-922 User Manual

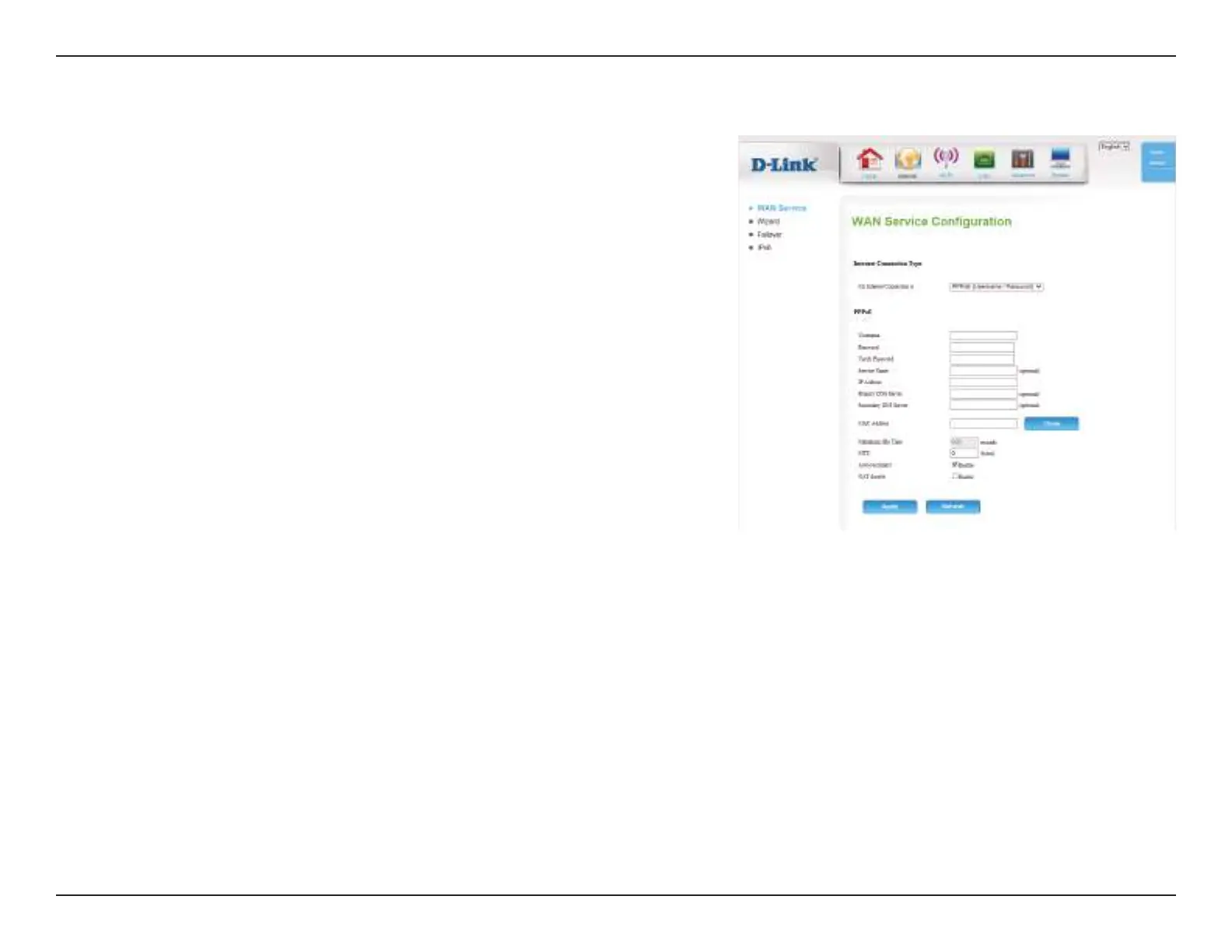

Section 4 - Conguration
The username/account name that your ISP provides to you for
PPPoE dial-up.
Password that your ISP provides to you for PPPoE dial-up.
Re-type your password in this eld.
Fill in if provided by your ISP. (Optional)
Fill in if provided by your ISP. If not, keep the default value.
Fill in if provided by your ISP. If not, keep the default value
(optional).
Fill in if provided by your ISP. If not, keep the default value
(optional).
The default MAC address is set to the WAN port’s physical interface
MAC address on the router. It is not recommended that you
change the default MAC address unless required by your ISP. You
can use the Clone button to replace the WAN port’s MAC address
with the MAC address of your PC.
The amount of time of inactivity before disconnecting an
established PPPoE session. Set it to zero or enable auto-reconnect
to disable this feature.
You may need to change the Maximum Transmission Unit (MTU)
for optimal performance. The default value is 0.
Username:
Password:
Verify Password:
Service Name:
IP Address:
Primary DNS
Server:
Secondary DNS
Server:
MAC Address:
Maximum Idle
Time:
MTU:
PPPoE (Username / Password)

D-Link DWR-922 Specifications

Wireless Specifications

LTE Band	800 / 900 / 1800 / 2600 MHz
UMTS/HSDPA/HSUPA Band	900 / 2100 MHz
Data Rates 802.11n	Up to 300 Mbps
Data Rates 802.11g	6 / 9 / 11 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Data Rates 802.11b	1 / 2 / 5.5 / 11 Mbps
LTE Uplink	Up to 50 Mbps
LTE Downlink	Up to 100 Mbps

Ports & Interfaces

LAN Ports	Four (RJ-45)
WAN Port	One (RJ-45)
Phone Port	One (RJ-11)
USIM Slot	Standard 6-pin SIM card interface

Dimensions and Antenna

Dimensions	190 x 111.5 x 23.5 mm
Dimensions (inches)	7.48 x 4.39 x 0.93 inches
Antenna	Two detachable 3G/4G antennas

Operating Environment

Operating Temperature	0 to 40 ˚C
Operating Temperature (Fahrenheit)	32 to 104 ˚F
Operating Humidity	10% to 90% (Non-condensing)
