D-Link DWR-922 User Manual

19D-Link DWR-922 User Manual
Section 4 - Conguration

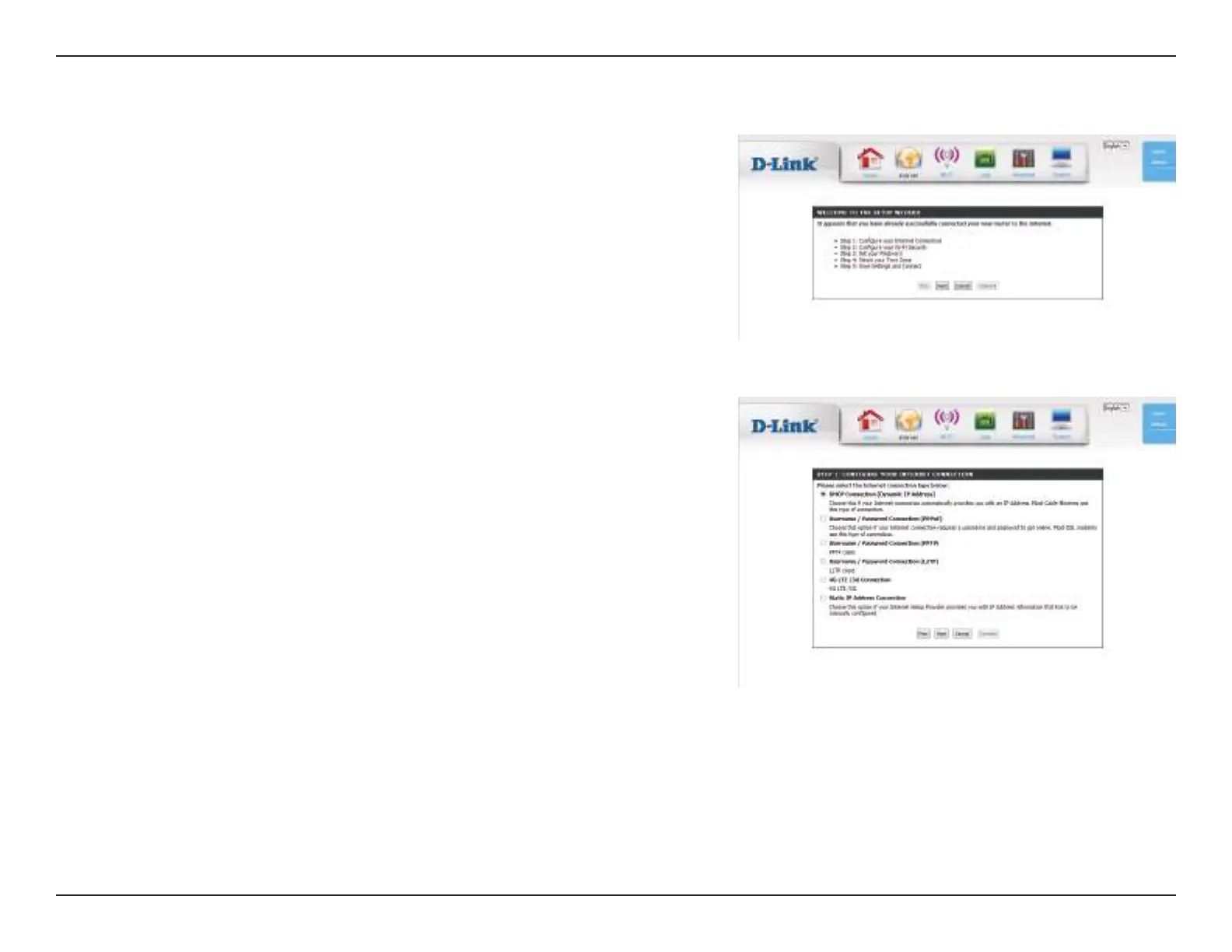

Wizard
This wizard will guide you through a step-by-step process to congure your router
to connect to the Internet.
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous step,
or you can click Cancel to close the wizard.
Select the Internet connection type you use. The connection types are explained on
the following page. If you are unsure which connection type you should use, contact
your Internet Service Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close the wizard.
Note: The DWR-922 has a WAN failover feature that allows the router to switch to a
3G/4G connection if the WAN connection is down or unavailable. To congure
this feature, please refer to Failover on page 23.

D-Link DWR-922 Specifications

Wireless Specifications

LTE Band	800 / 900 / 1800 / 2600 MHz
UMTS/HSDPA/HSUPA Band	900 / 2100 MHz
Data Rates 802.11n	Up to 300 Mbps
Data Rates 802.11g	6 / 9 / 11 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Data Rates 802.11b	1 / 2 / 5.5 / 11 Mbps
LTE Uplink	Up to 50 Mbps
LTE Downlink	Up to 100 Mbps

Ports & Interfaces

LAN Ports	Four (RJ-45)
WAN Port	One (RJ-45)
Phone Port	One (RJ-11)
USIM Slot	Standard 6-pin SIM card interface

Dimensions and Antenna

Dimensions	190 x 111.5 x 23.5 mm
Dimensions (inches)	7.48 x 4.39 x 0.93 inches
Antenna	Two detachable 3G/4G antennas

Operating Environment

Operating Temperature	0 to 40 ˚C
Operating Temperature (Fahrenheit)	32 to 104 ˚F
Operating Humidity	10% to 90% (Non-condensing)
