D-Link DWR-922 User Manual

50D-Link DWR-922 User Manual
Section 4 - Conguration
Select the appropriate Time Zone from the drop-down box.
Check the box to allow for daylight saving adjustments. Use the
drop-down boxes to specify a start date and end date for daylight
saving time adjustments.
Check the box to allow the router to use an NTP server to update
the router’s internal clock.
Enter an NTP server to use for time synchronization, or use the
drop-down box to select one. Click the Update Now button to
synchronize the time with the NTP server.
Click Apply to save your settings, or Refresh to revert to your
previous settings.

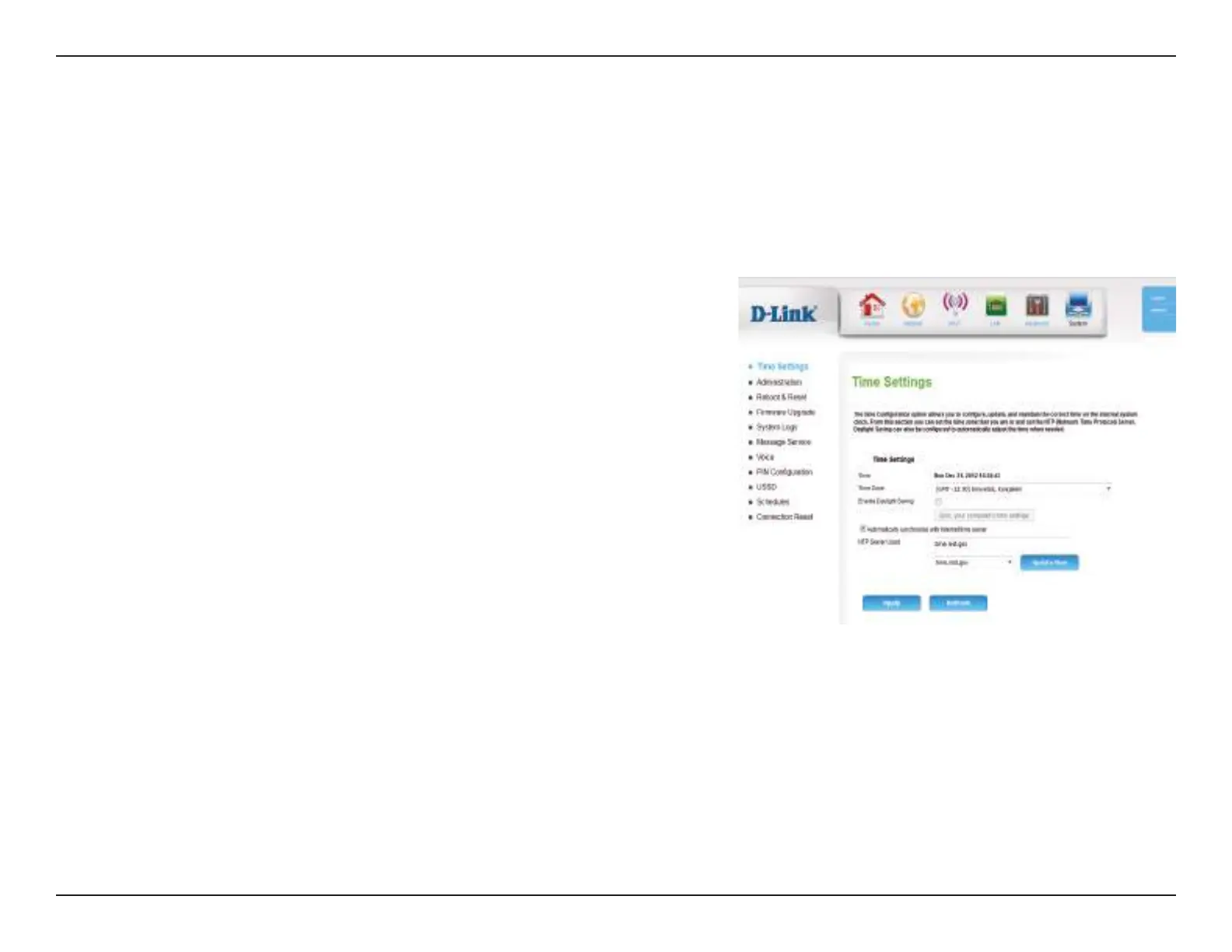

This section will help you set the time zone that you are in and an NTP (Network Time Protocol) server to use. Daylight Saving can also be congured
to adjust the time when needed.
Time Zone:
Enable Daylight
Saving:
Automatically
synchronize with
Internet time
server:
NTP Server Used:
System
Time Settings

D-Link DWR-922 Specifications

Wireless Specifications

LTE Band	800 / 900 / 1800 / 2600 MHz
UMTS/HSDPA/HSUPA Band	900 / 2100 MHz
Data Rates 802.11n	Up to 300 Mbps
Data Rates 802.11g	6 / 9 / 11 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Data Rates 802.11b	1 / 2 / 5.5 / 11 Mbps
LTE Uplink	Up to 50 Mbps
LTE Downlink	Up to 100 Mbps

Ports & Interfaces

LAN Ports	Four (RJ-45)
WAN Port	One (RJ-45)
Phone Port	One (RJ-11)
USIM Slot	Standard 6-pin SIM card interface

Dimensions and Antenna

Dimensions	190 x 111.5 x 23.5 mm
Dimensions (inches)	7.48 x 4.39 x 0.93 inches
Antenna	Two detachable 3G/4G antennas

Operating Environment

Operating Temperature	0 to 40 ˚C
Operating Temperature (Fahrenheit)	32 to 104 ˚F
Operating Humidity	10% to 90% (Non-condensing)
