Section 1 - Product Overview
Hardware Overview

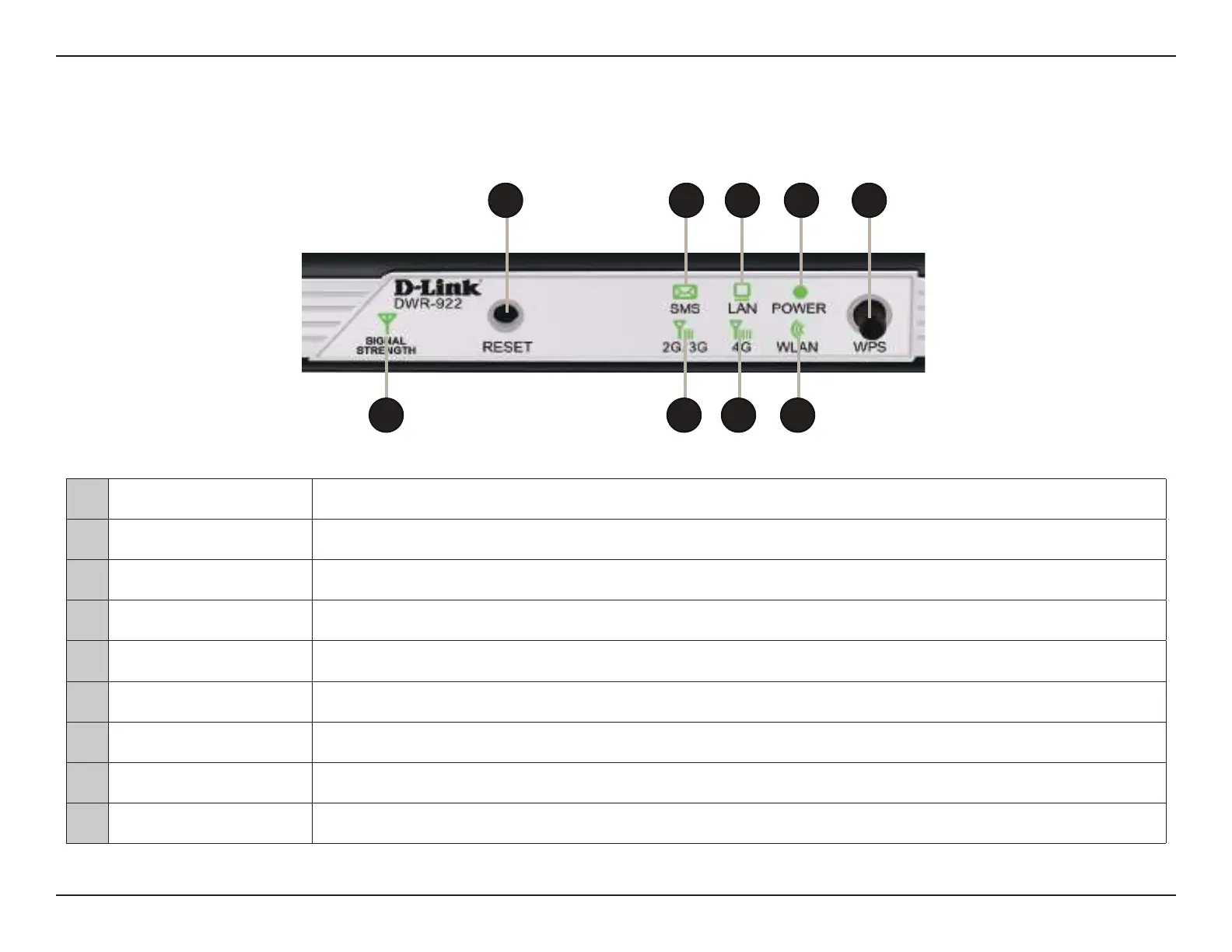

Front View
1 Reset Button Press this button with an unfolded paperclip and hold for ten seconds to reset the device.
2 SMS LED Will be solid green if the SMS inbox is full, or blinking if there is an unread new SMS message.
3 LAN LED Will be lit if an Ethernet connection is established, and will blink when data is being transferred.
4 Power LED Will be lit if the device is powered on and working.
5 WPS Button Press this button to initiate a new WPS connection. See WPS Button on page 62 for details.
6 Signal Strength LED Will blink red if there is no SIM card / signal. Solid red/amber/green indicates the signal strength.
7 2G/3G LED Will be lit if a 2G or 3G connection is established, and will blink when data is being transferred.
8 4G LED Will be lit if a 4G LTE connection is established, and will blink when data is being transferred.
9 WLAN LED Will be lit if the wireless function is enabled, and will blink when wireless data is being transferred.
1 5
6 7 98
2 3 4

D-Link DWR-922 Specifications

Wireless Specifications

LTE Band	800 / 900 / 1800 / 2600 MHz
UMTS/HSDPA/HSUPA Band	900 / 2100 MHz
Data Rates 802.11n	Up to 300 Mbps
Data Rates 802.11g	6 / 9 / 11 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Data Rates 802.11b	1 / 2 / 5.5 / 11 Mbps
LTE Uplink	Up to 50 Mbps
LTE Downlink	Up to 100 Mbps

Ports & Interfaces

LAN Ports	Four (RJ-45)
WAN Port	One (RJ-45)
Phone Port	One (RJ-11)
USIM Slot	Standard 6-pin SIM card interface

Dimensions and Antenna

Dimensions	190 x 111.5 x 23.5 mm
Dimensions (inches)	7.48 x 4.39 x 0.93 inches
Antenna	Two detachable 3G/4G antennas

Operating Environment

Operating Temperature	0 to 40 ˚C
Operating Temperature (Fahrenheit)	32 to 104 ˚F
Operating Humidity	10% to 90% (Non-condensing)
