Section 4 - Conguration

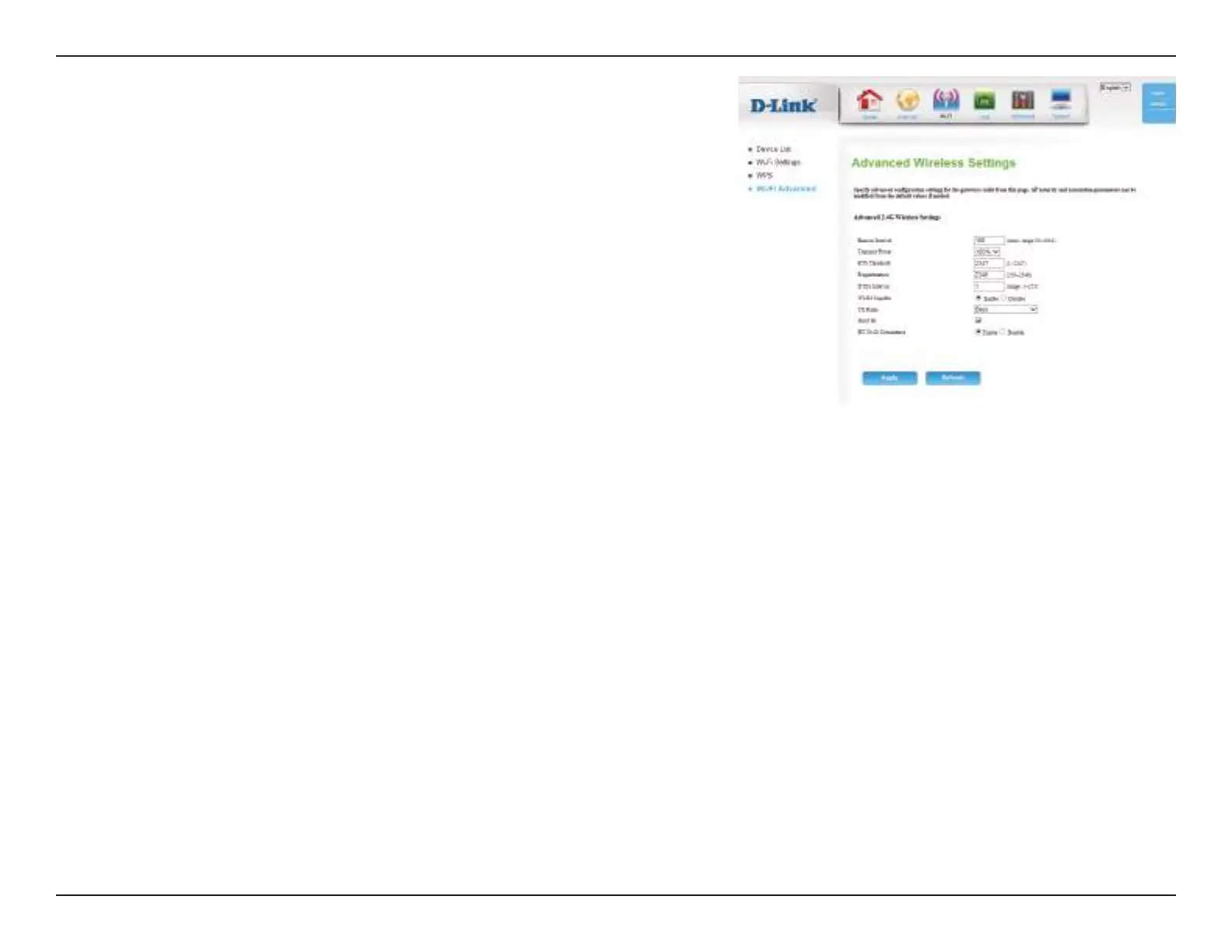

Check this box to reduce the guard interval to 400 ns. This can
increase the throughput rate provided that the delay spread of the
connection is also low. However, it can also increase error rate in
some installations, due to increased sensitivity to radio-frequency
reections. Select the option that works best for your installation.
Enable this option to reduce interference from other wireless
networks in your area. If the channel width is operating at 40 MHz
and there is another wireless network’s channel over-lapping
and causing interference, the router will automatically change to
20MHz.
Click Apply to save your settings, or Refresh to revert to your
previous settings.
Short GI:
HT 20/40
Coexistence:

D-Link DWR-922 Specifications

Wireless Specifications

LTE Band	800 / 900 / 1800 / 2600 MHz
UMTS/HSDPA/HSUPA Band	900 / 2100 MHz
Data Rates 802.11n	Up to 300 Mbps
Data Rates 802.11g	6 / 9 / 11 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Data Rates 802.11b	1 / 2 / 5.5 / 11 Mbps
LTE Uplink	Up to 50 Mbps
LTE Downlink	Up to 100 Mbps

Ports & Interfaces

LAN Ports	Four (RJ-45)
WAN Port	One (RJ-45)
Phone Port	One (RJ-11)
USIM Slot	Standard 6-pin SIM card interface

Dimensions and Antenna

Dimensions	190 x 111.5 x 23.5 mm
Dimensions (inches)	7.48 x 4.39 x 0.93 inches
Antenna	Two detachable 3G/4G antennas

Operating Environment

Operating Temperature	0 to 40 ˚C
Operating Temperature (Fahrenheit)	32 to 104 ˚F
Operating Humidity	10% to 90% (Non-condensing)
