D-Link DWR-922 User Manual

71D-Link DWR-922 User Manual
Section 5 - Connecting to a Wireless Network

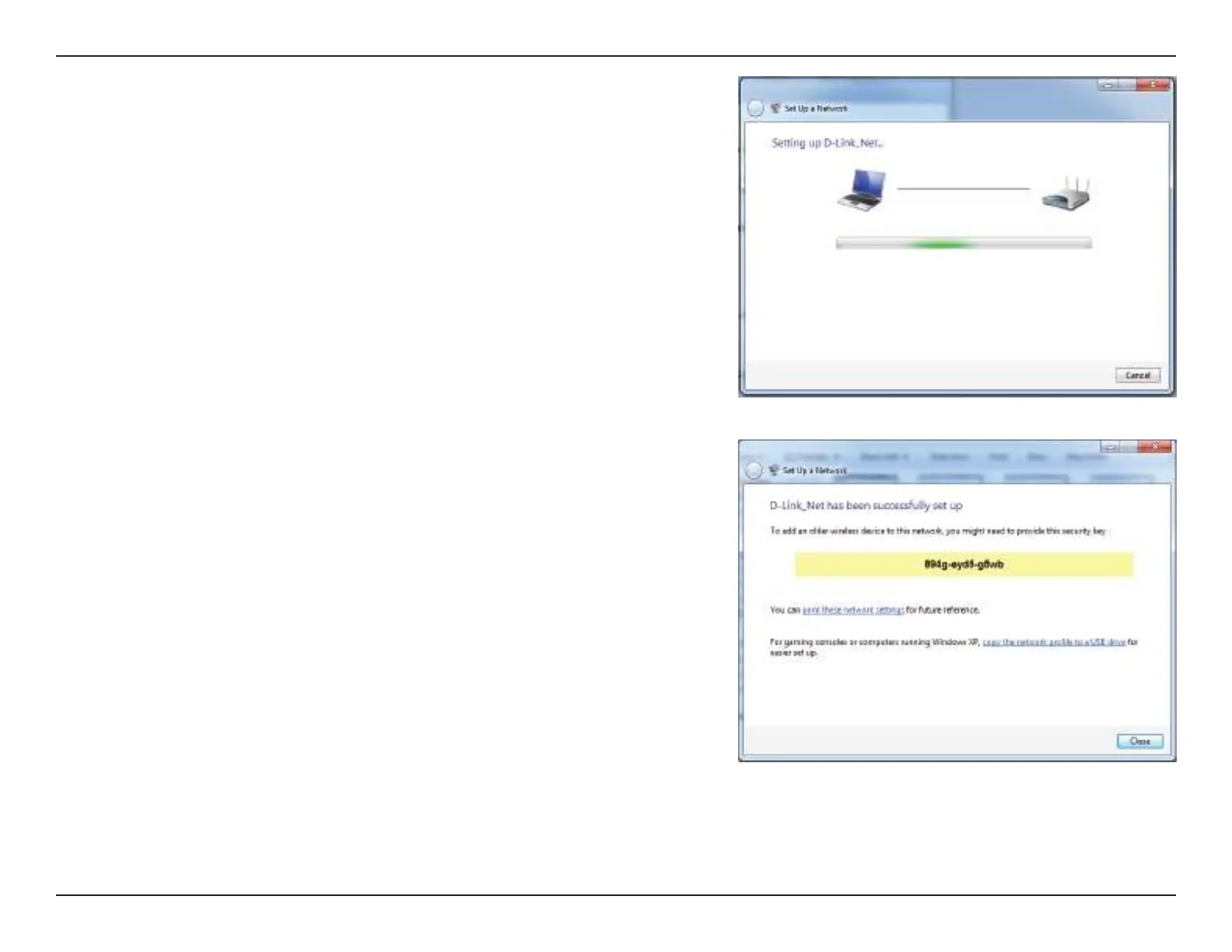

7. The following window appears while the router is being congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the router has been
set up successfully.
Make a note of the security key as you may need to provide this security
key if adding an older wireless device to the network in the future.
9. Click Close to complete WPS setup.

D-Link DWR-922 Specifications

Wireless Specifications

LTE Band	800 / 900 / 1800 / 2600 MHz
UMTS/HSDPA/HSUPA Band	900 / 2100 MHz
Data Rates 802.11n	Up to 300 Mbps
Data Rates 802.11g	6 / 9 / 11 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
Data Rates 802.11b	1 / 2 / 5.5 / 11 Mbps
LTE Uplink	Up to 50 Mbps
LTE Downlink	Up to 100 Mbps

Ports & Interfaces

LAN Ports	Four (RJ-45)
WAN Port	One (RJ-45)
Phone Port	One (RJ-11)
USIM Slot	Standard 6-pin SIM card interface

Dimensions and Antenna

Dimensions	190 x 111.5 x 23.5 mm
Dimensions (inches)	7.48 x 4.39 x 0.93 inches
Antenna	Two detachable 3G/4G antennas

Operating Environment

Operating Temperature	0 to 40 ˚C
Operating Temperature (Fahrenheit)	32 to 104 ˚F
Operating Humidity	10% to 90% (Non-condensing)
