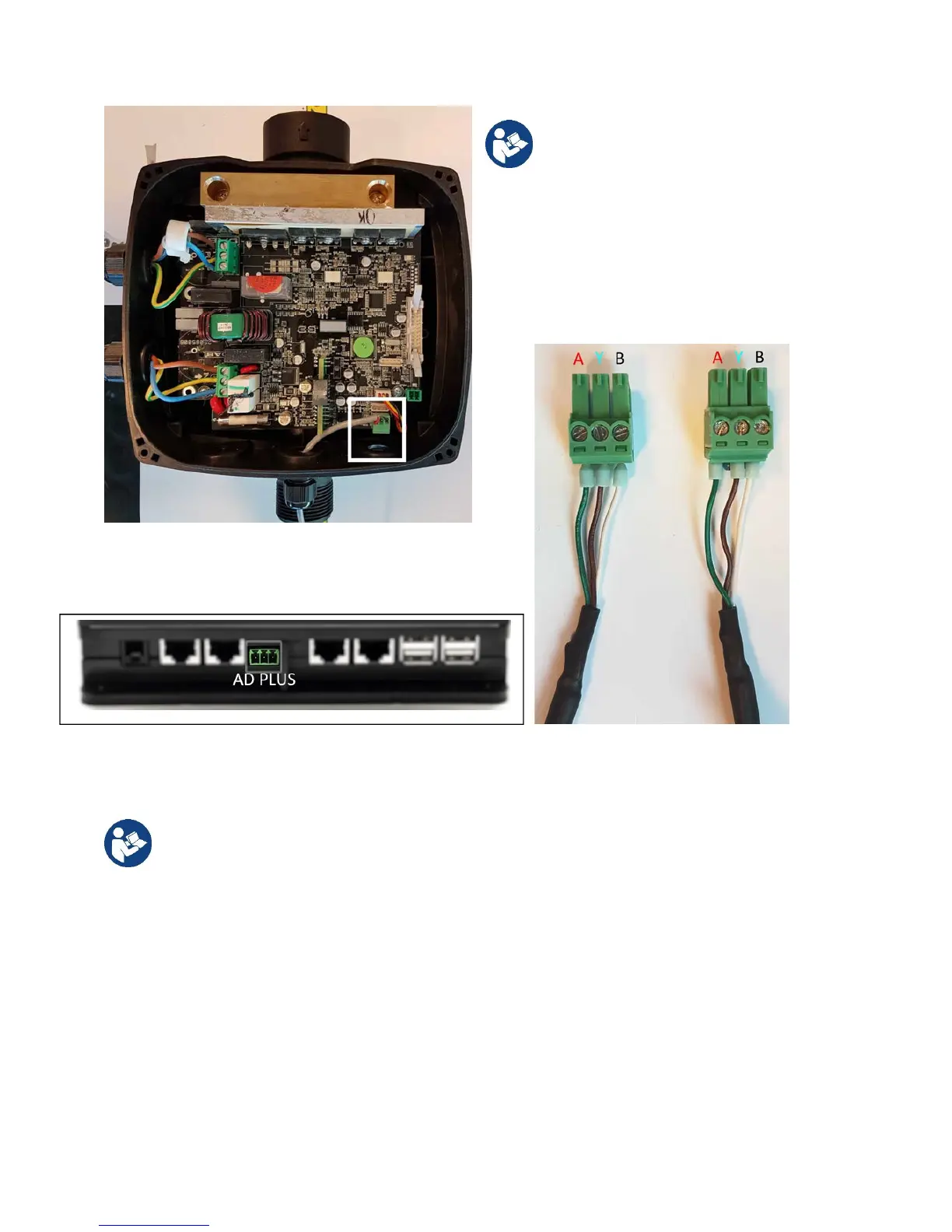

Figure 9A - Connector position in the AD plus and DConnect box, e.g. can-bus straight cable connection,
connector name DConnect box for connection with AD plus
Note: depending on the Active Driver
Plus model, the 3-pole connector used for
communication to other Active Driver Plus
and/or the DConnect Box units may be in a
different position, refer to the manual of the
specific model. The (Y) screen is always
connected to the central pin of the
connector.
Note: If you connect an ACTIVE DRIVER PLUS to the DConnect Box, you will not be able
to connect ADAC/MCE on the CANBUS1 port indicated, so use CANBUS2 or the special RJ45-
3pole adapter cable.
