14. Attaching the ferrite Core

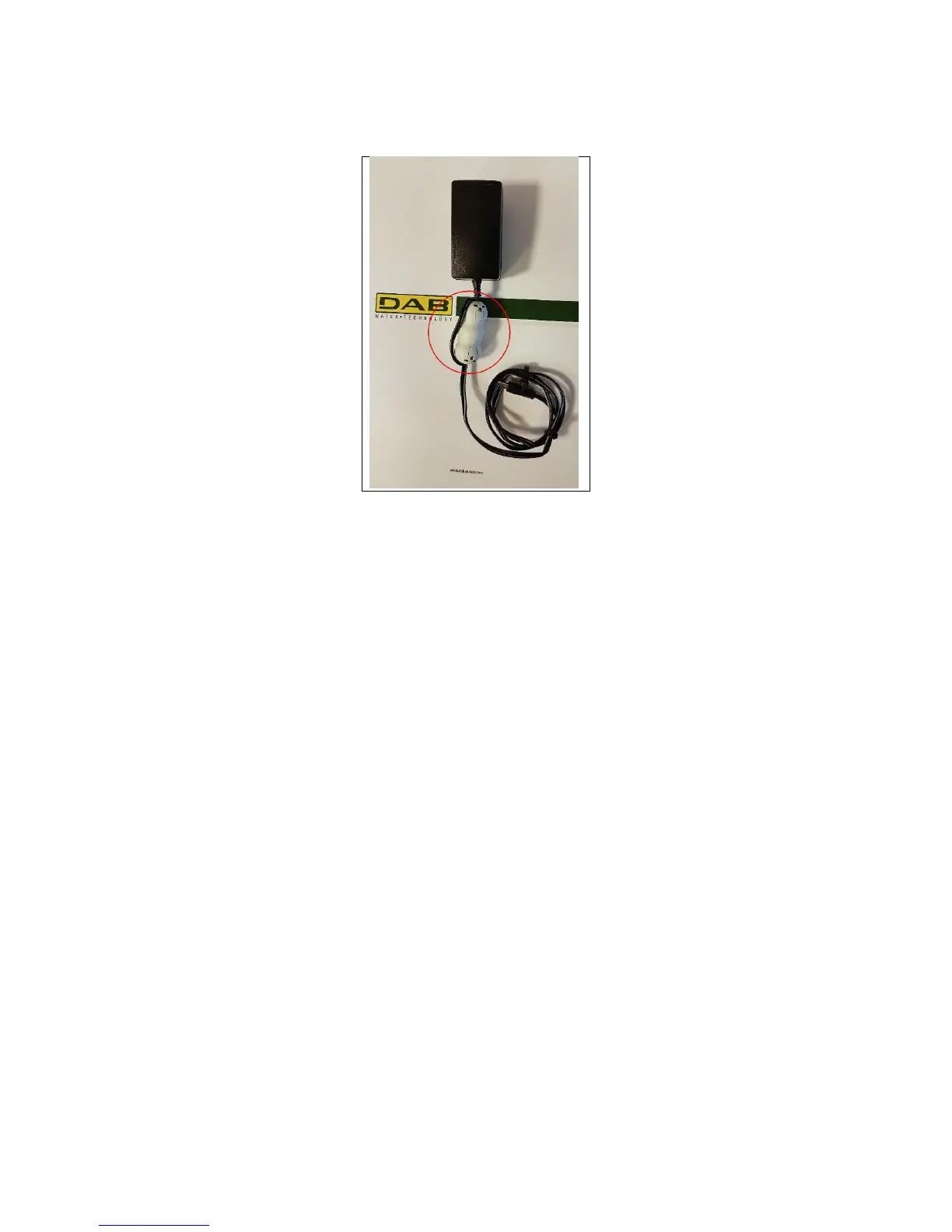

Figure 11 - Position of the Ferrite Core
Before turning the power on, in order to reduce electromagnetic interference conducted and irradiated by power and
data cables, attach the supplied ferrite cores.
Ferrite cores on the power-output cable, ss shown in the illustration. Make 2 turns of cable through the Ferrite core.
