ENGLISH
69

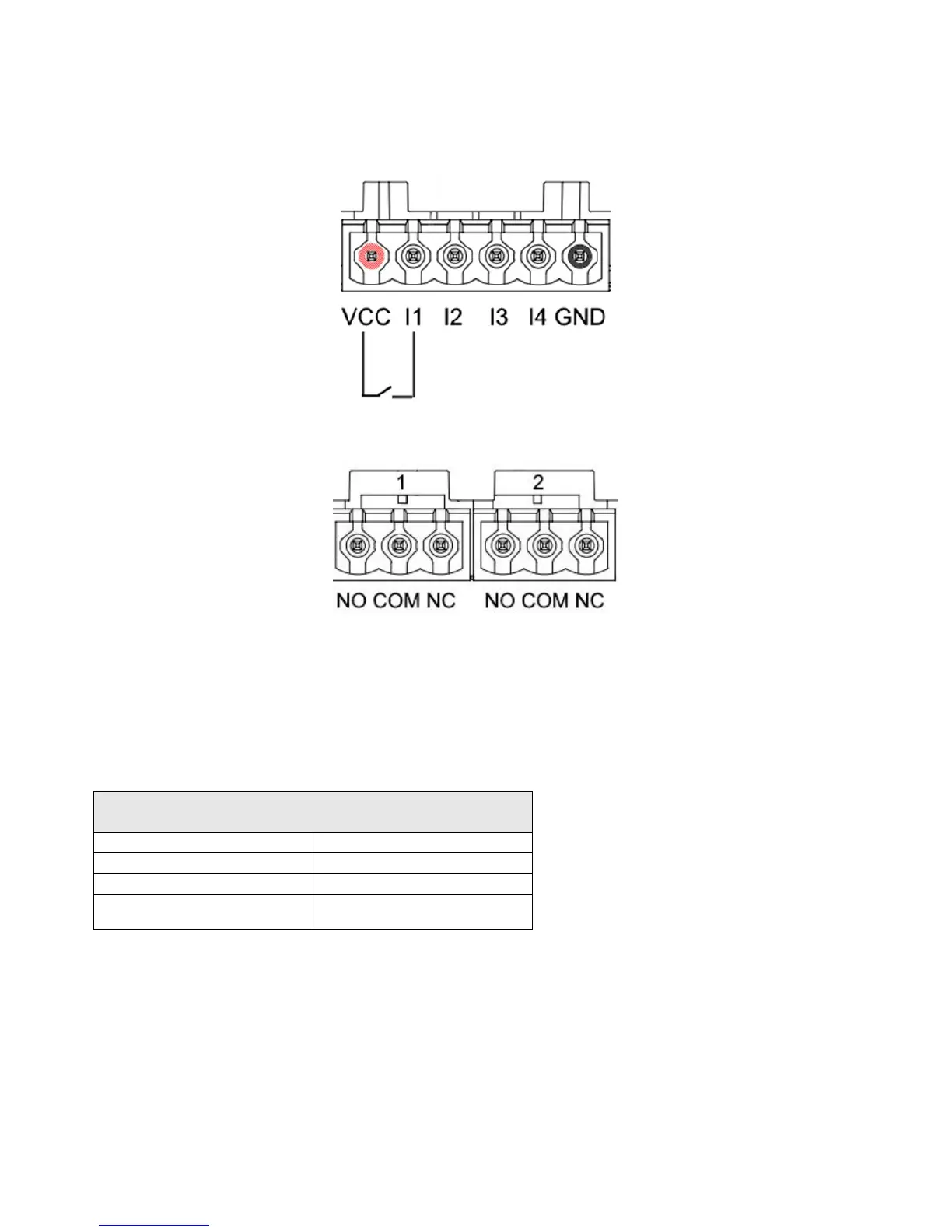

Connecting the VCC contact and the input I1 to a clean contact (e.g. float, pressure switch,
etc.).
When the clean contact (e.g. float) closes, input I1 of the DConnect Box will be active.
Output Contacts OUT1, OUT2:
Figure 9F – OUT 1 3-pole and OUT2 3-pole terminal board
The DConnect Box is equipped with two relay outputs OUT1 and OUT2
The Table describes the characteristics and the limits of the output contacts:
Characteristics of the output contacts
(OUT1,OUT2)
Type of contact NO, NC
Max. bearable voltage 230 VAC
Max. bearable current 3 A
Accepted cable section
0.205-3.31 [mm²]
24-12 [AWG]
