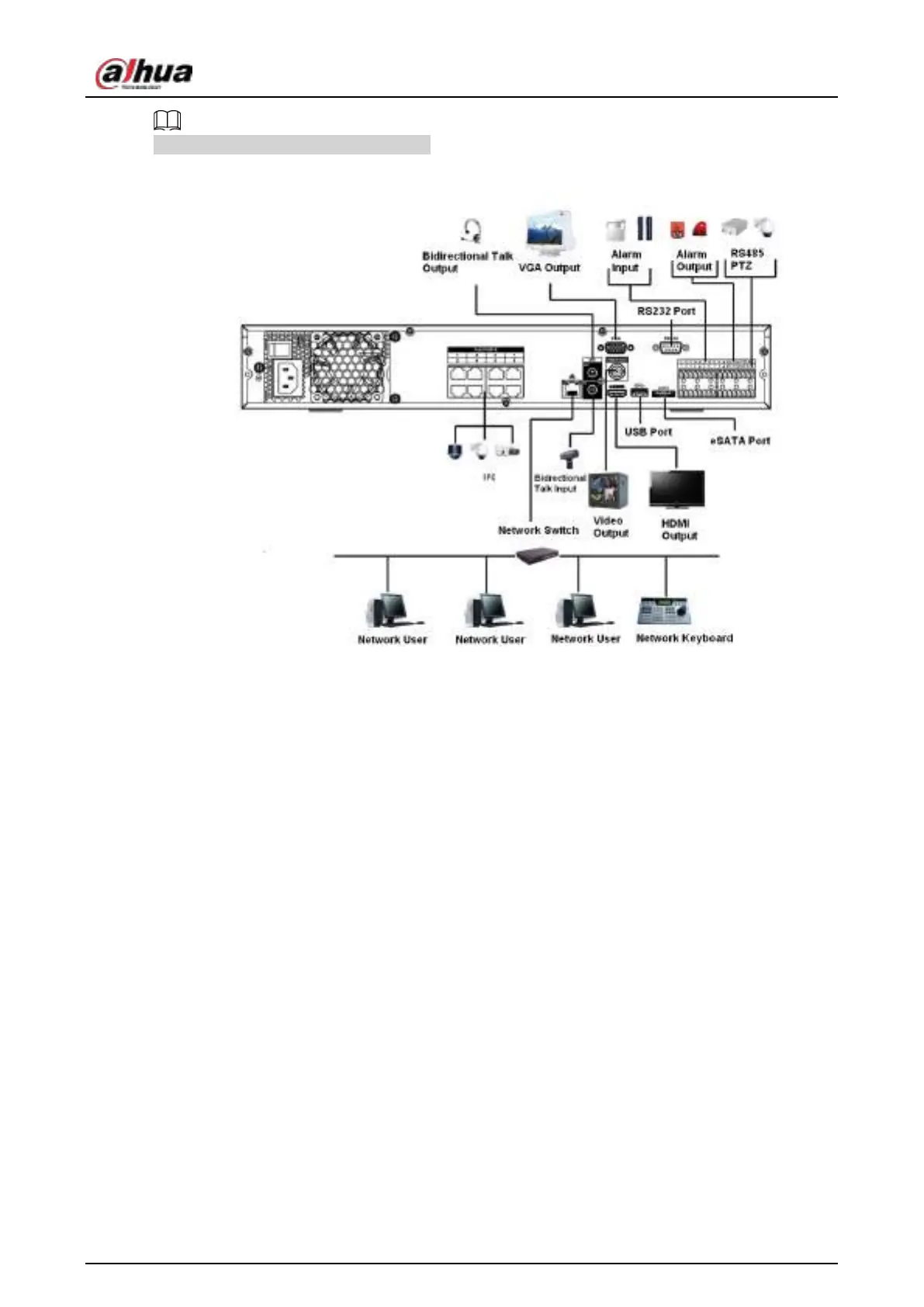

Figure 2-52

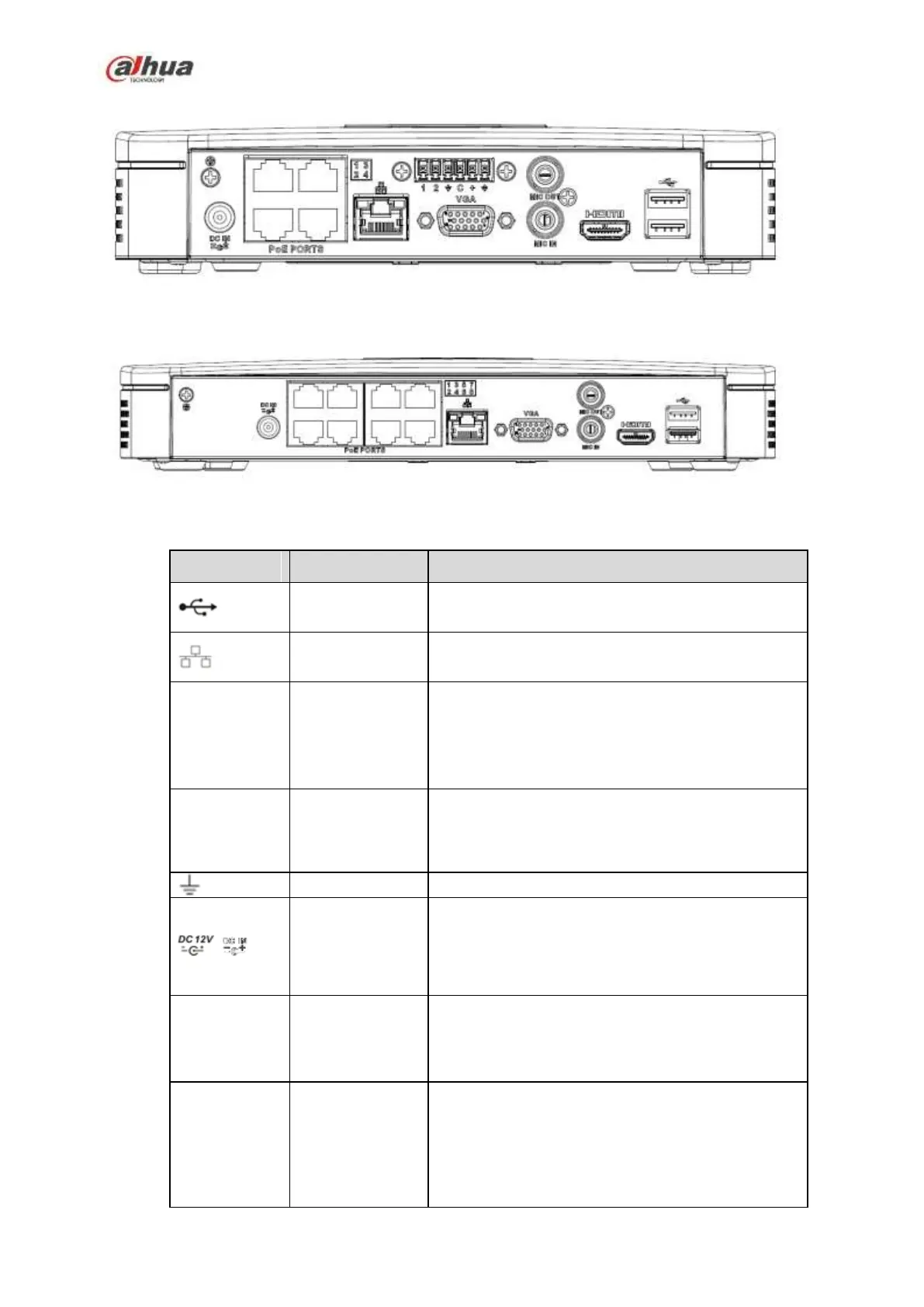

The NVR41-8P-4KS2 series rear panel is shown as below. See Figure 2-53.
Figure 2-53
Please refer to the following sheet for detailed information.
Port Name
Connection
Function
USB port
USB port. Connect to mouse, USB storage device,
USB burner and etc.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view analog
video.
GND
Ground end
/
Power input port
Power socket.
For NVR41-4KS2: DC 12V/2A power.
For NVR41-P-4KS2: DC 48V/72W power.
For NVR41-8P-4KS2: DC 48V/96W power.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
MIC OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
