2.1.12 NVR608-4KS2 Series
The following figures are for reference only. The actual product shall prevail.

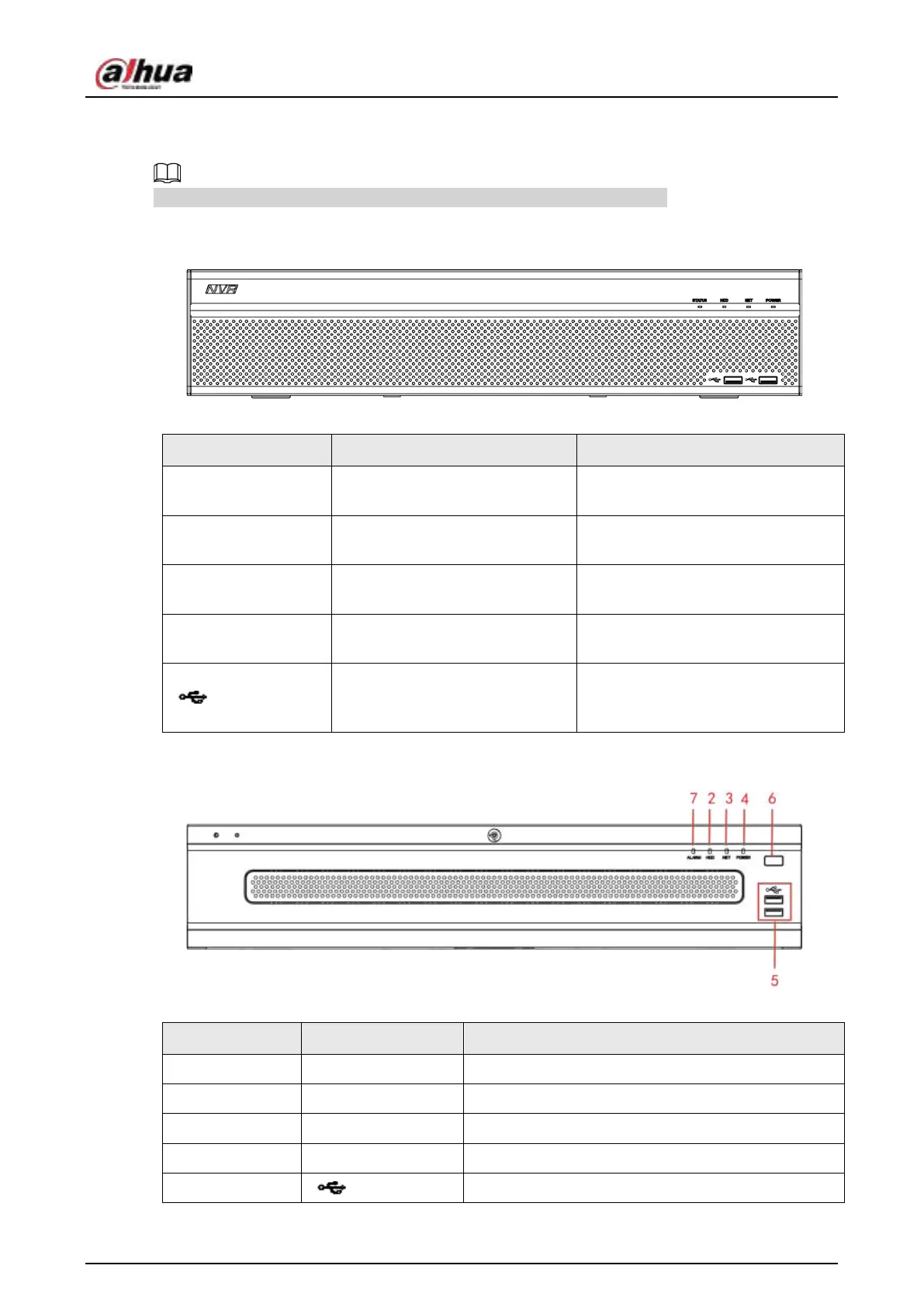

The NVR608-32-4KS2 front panel is shown as below.
Figure 2-20 Front panel
Table 2-11 Icons
Icon Name Function
STATUS Status indicator light
The blue light is on when the device
is working properly.
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
POWER Power status indicator light
The blue light is on when the power
connection is OK.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
etc.
The NVR608-64-4KS2, NVR608-128-4KS2 front panel is shown as below.
Figure 2-21 Front panel
Table 2-12 Icons
SN Icon Name
1 STATUS Status indicator light
2 HDD HDD status indicator light
3 NET Network status indicator light
4 POWER Power status indicator light
5 USB 2.0 port
