Dahua L Series

User's Manual
13
The figure is for reference only. The actual product shall prevail.

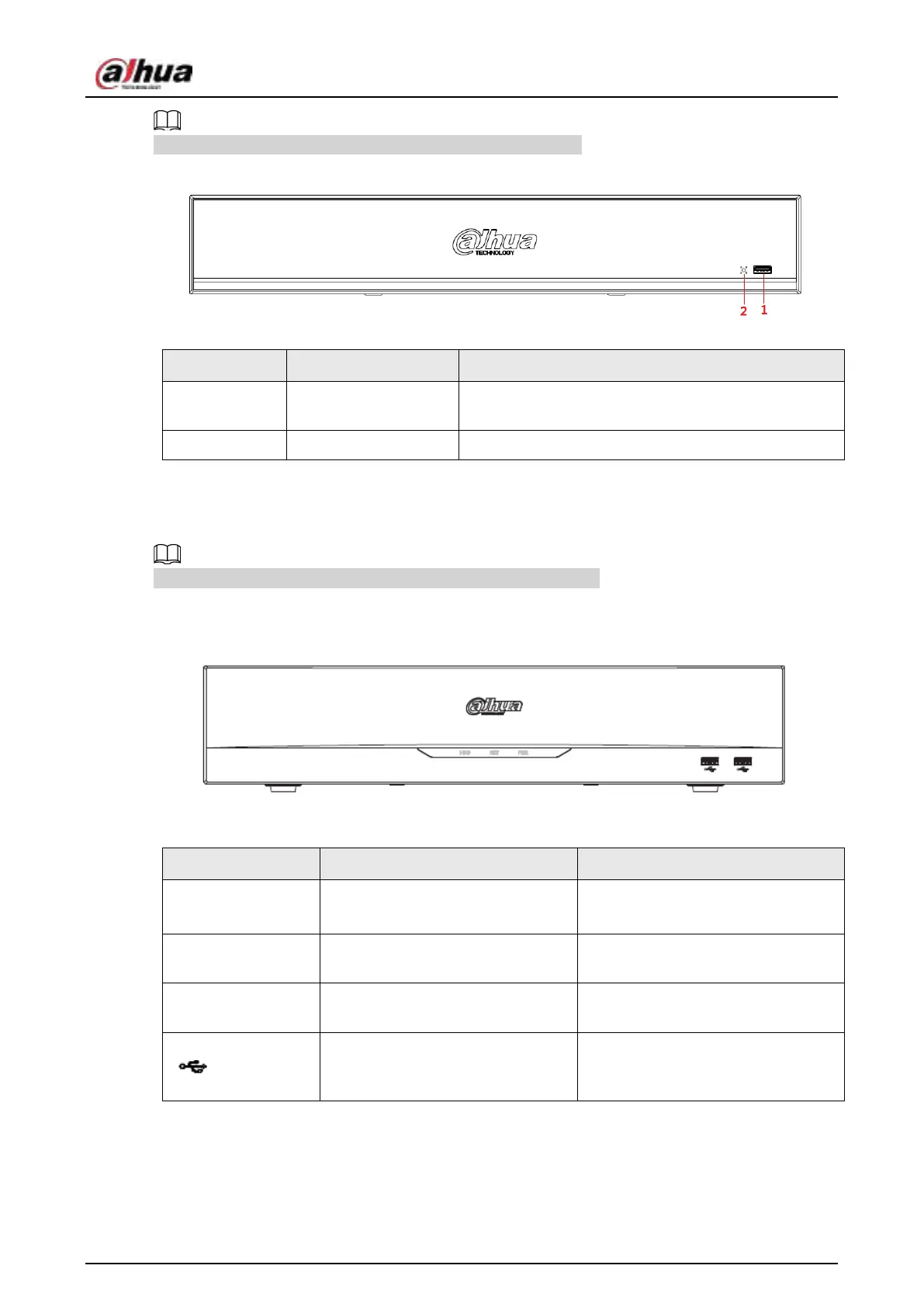

Figure 2-18 Front panel
Table 2-9 Icons
No. Port Name Function
1 USB port
Connects to the external devices such as keyboard,
mouse, and USB storage device.
2 IR indicator Receive signals from the remote control.
2.1.11 NVR48-4KS2/I/NVR48-16P-4KS2/I Series
The figures are for reference only. The actual product shall prevail.
The NVR48-4KS2/I/NVR48-16P-4KS2/I series front panel is shown as below.
Figure 2-19 Front panel
Table 2-10 Icons
Icon Name Function
HDD
HDD status indicator
light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
PWR Power status indicator light
The blue light is on when the power
connection is OK.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
etc.
