Dahua L Series

User's Manual
7

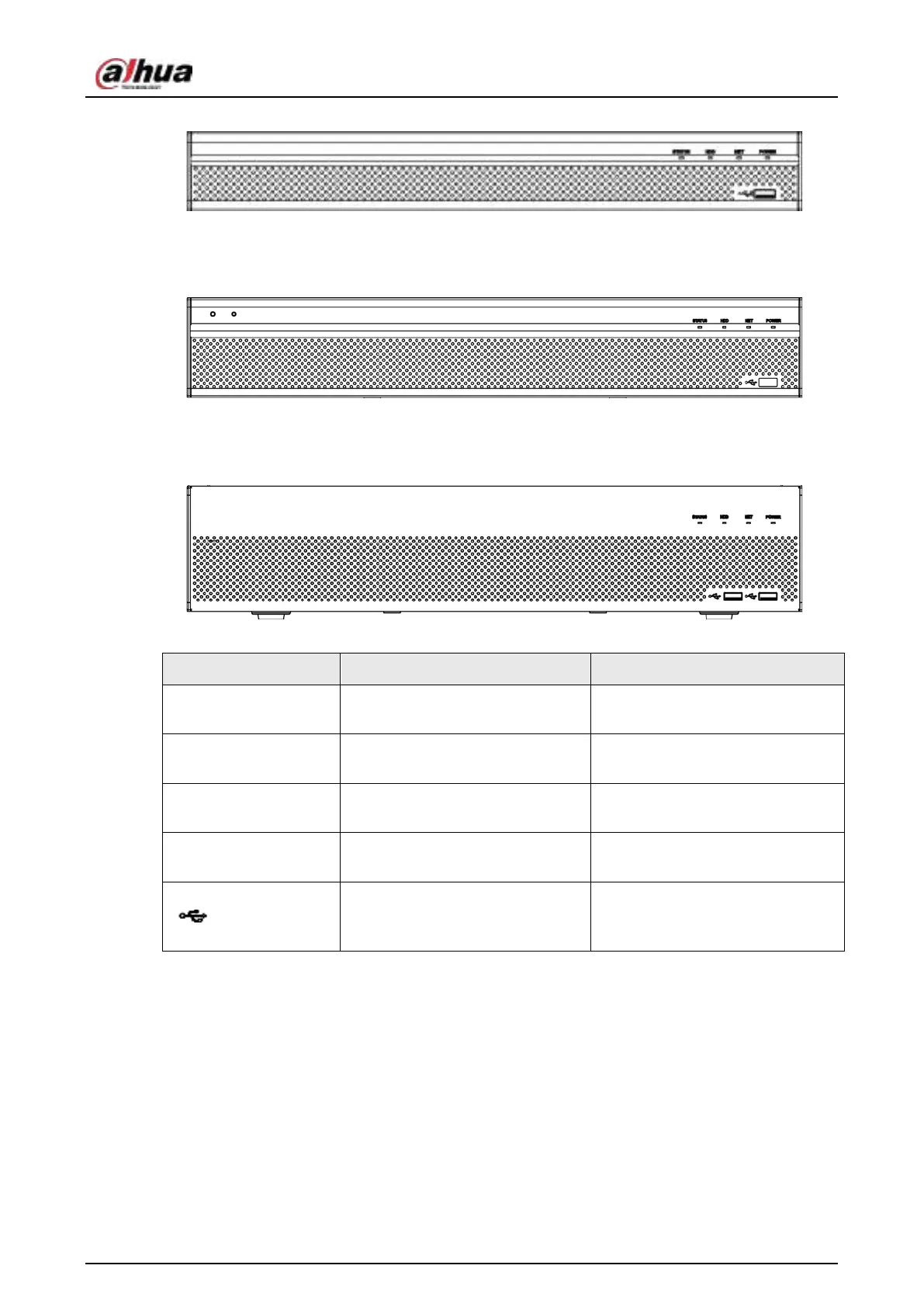

Figure 2-4 Front panel
The NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P-
4KS2/L/NVR54-24P-4KS2/NVR54-16P-4KS2E series front panel is shown as below.
Figure 2-5 Front panel
The NVR58-4KS2/NVR58-16P-4KS2/NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P-
4KS2/L/NVR58-16P-4KS2E series front panel is shown as below
Figure 2-6 Front panel
Table 2-3 Icons
Icon Name Function
STATUS Status indicator light
The blue light is on when the
device is working properly.
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
POWER Power status indicator light
The blue light is on when the
power connection is OK.
USB2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner
and etc.
2.1.4 NVR21-W-4KS2 Series
The front panel is shown as below.
