Dahua L Series - Rear Panel; NVR21-4 KS2;NVR21-P-4 KS2;NVR21-8 P-4 KS2 Series

User's Manual
17

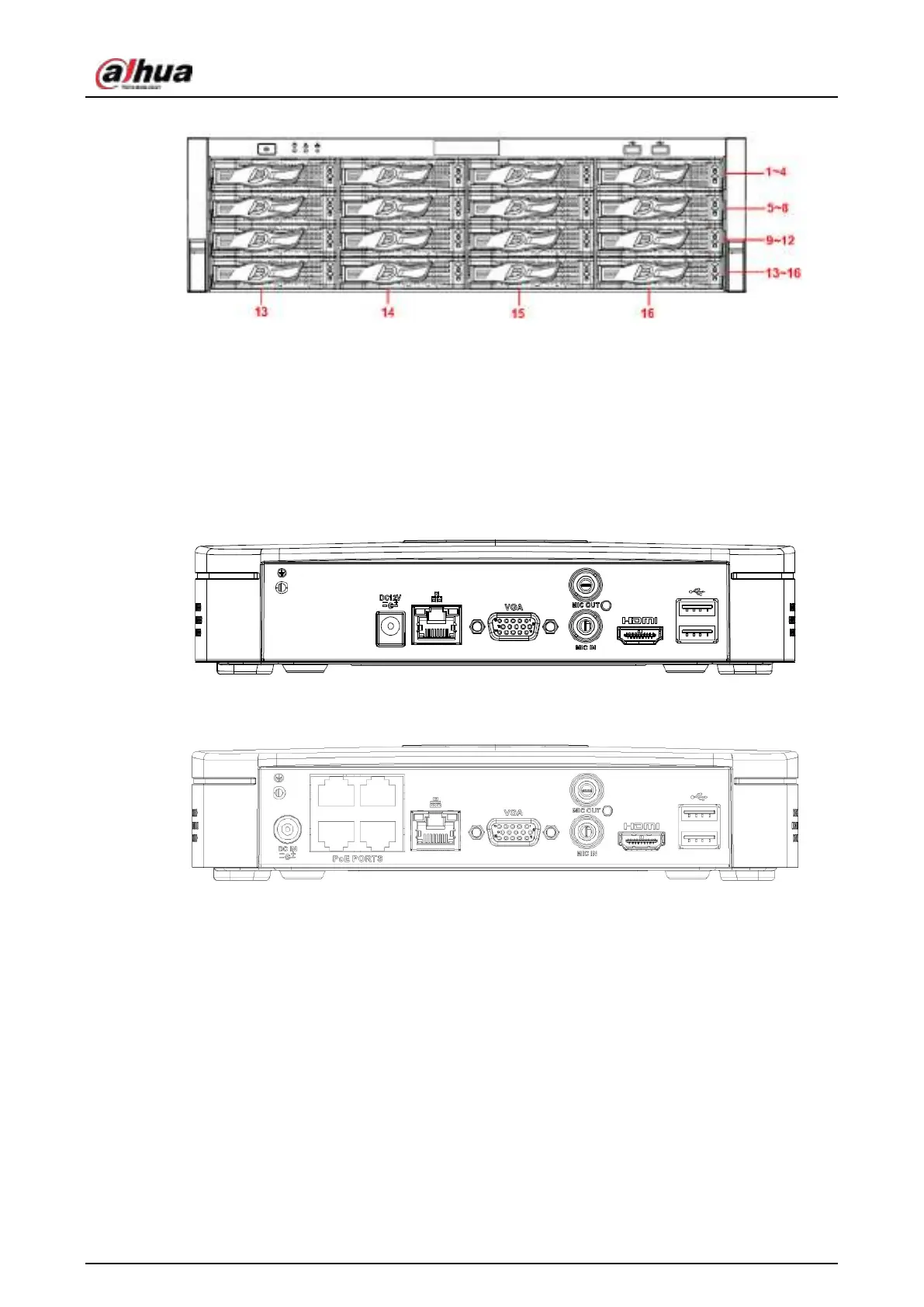

Figure 2-24 Front panel
2.2 Rear Panel
2.2.1 NVR21-4KS2/NVR21-P-4KS2/NVR21-8P-4KS2 Series
The NVR21-4KS2 is shown as below.
Figure 2-25 Rear panel
The NVR21-P-4KS2 is shown as below.
Figure 2-26 Rear panel
The NVR21-8P-4KS2 is shown as below.
