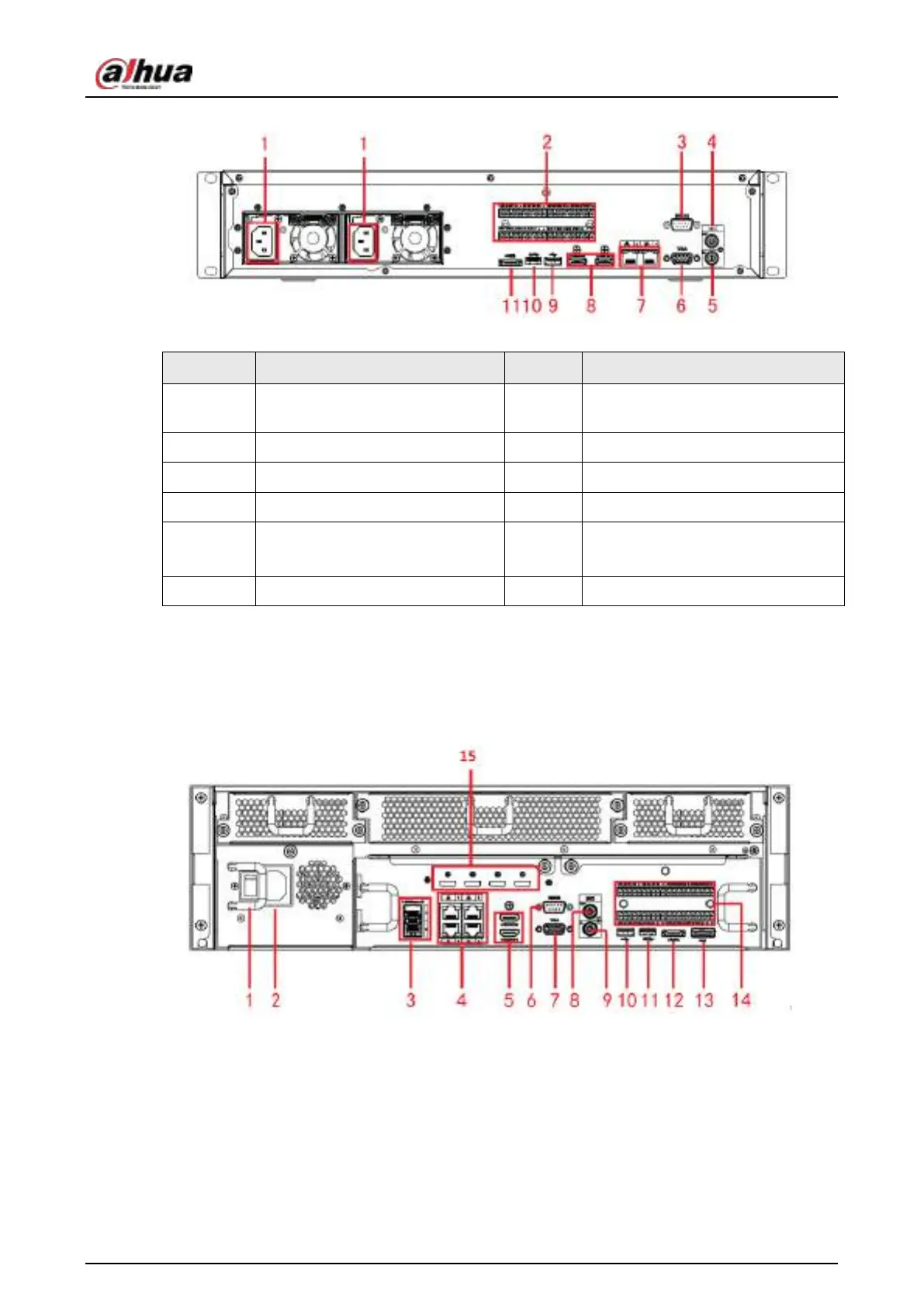

Figure 2-76 Rear panel
Table 2-38 Ports
SN Function SN Function
1 Power socket 2
Alarm input/alarm output/RS485
port
3 RS-232 port 4 Audio output
5 Audio input 6 VGA port
7 Network port 8 HDMI port
9
●
NVR608-4K: USB 2.0 port.
●
NVR608-4KS2: USB 3.0 port
10 USB 3.0 port
11 eSATA port
2.2.28 NVR616-4KS2 Series
The general series rear panel of NVR616-4KS2 is shown as below.
Figure 2-77 Rear panel
The redundant power series rear panel of NVR616-4KS2 is shown as below.
