Dahua L Series

User's Manual
136
Step 5 Click
Apply
to complete the settings.
Enable auto record function so that the record plan can become activated. Refer to
"4.1.4.6.3 Record Control" for detailed information.
4.1.4.6.2 Snapshot Schedule
Background Information
You can set schedule snapshot period.
After set schedule snapshot, device can snapshot image according to the period you set here. For
example, the alarm snapshot period is from 6:00–18:00 Monday, device can snapshot during the
6:00–18:00 when an alarm occurs.
Procedure
Step 1 Right-click on the live view interface, and then select
Main Menu
>
STORAGE
>
Schedule
>
Snapshot
.

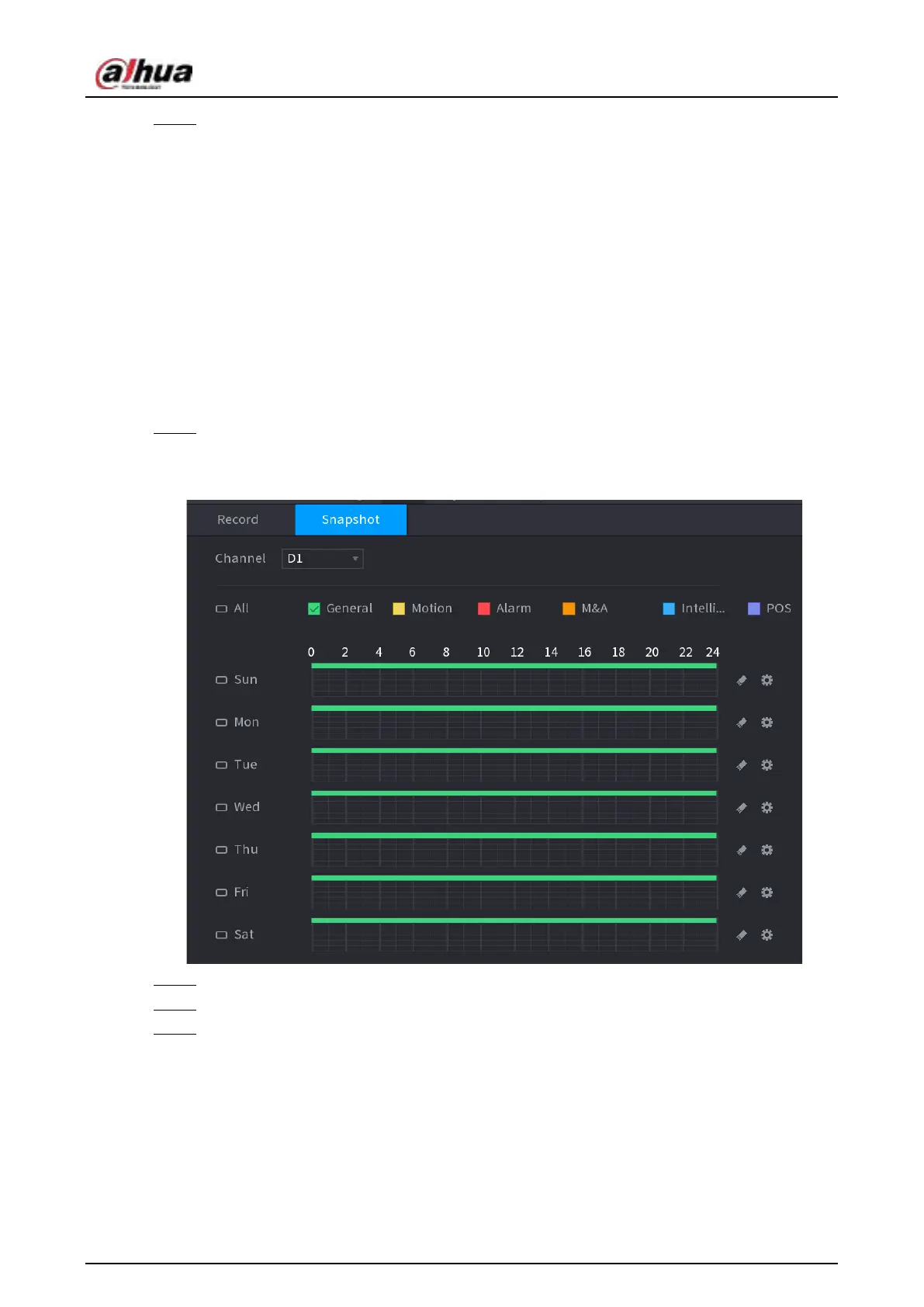

Figure 4-35 Snapshot
Step 2 Select a channel to set schedule snapshot.
Step 3 Set snapshot type as schedule. Refer to "4.2.6.2 Snapshot" for detailed information.
Step 4 Check the box to set alarm type. See Figure 4-36.
