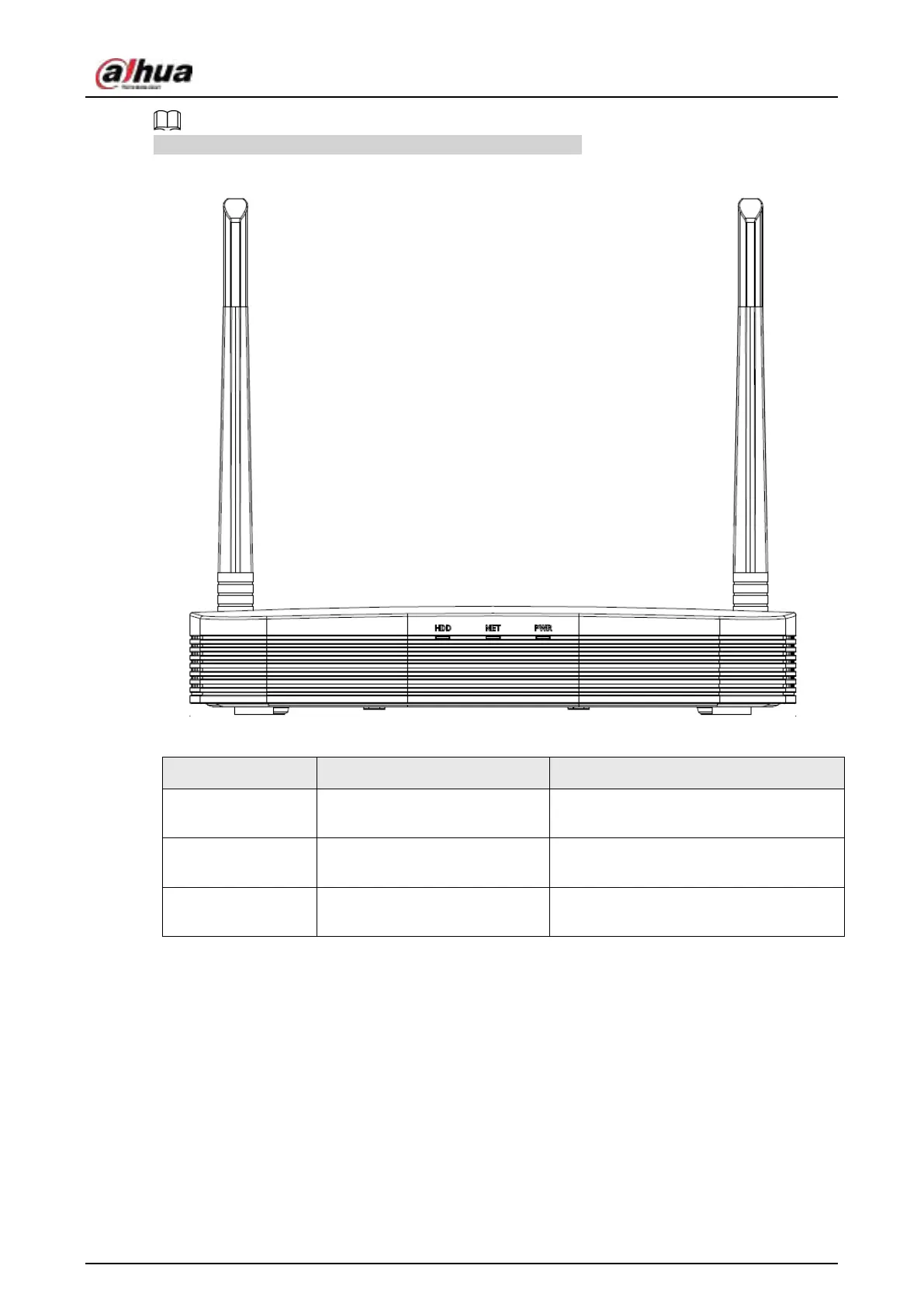

The figure is for reference only. The actual product shall prevail.
Figure 2-7 Front panel
Table 2-4 Icons
Icon Name Function
HDD HDD status indicator light
The blue light is on when the HDD is
malfunction.
NET Network status indicator light
The blue light is on when the network
connection is abnormal.
PWR Power status indicator light
The blue light is on when the power
connection is OK.
2.1.5 NVR21HS-W-4KS2 Series
The front panel is shown as below.
