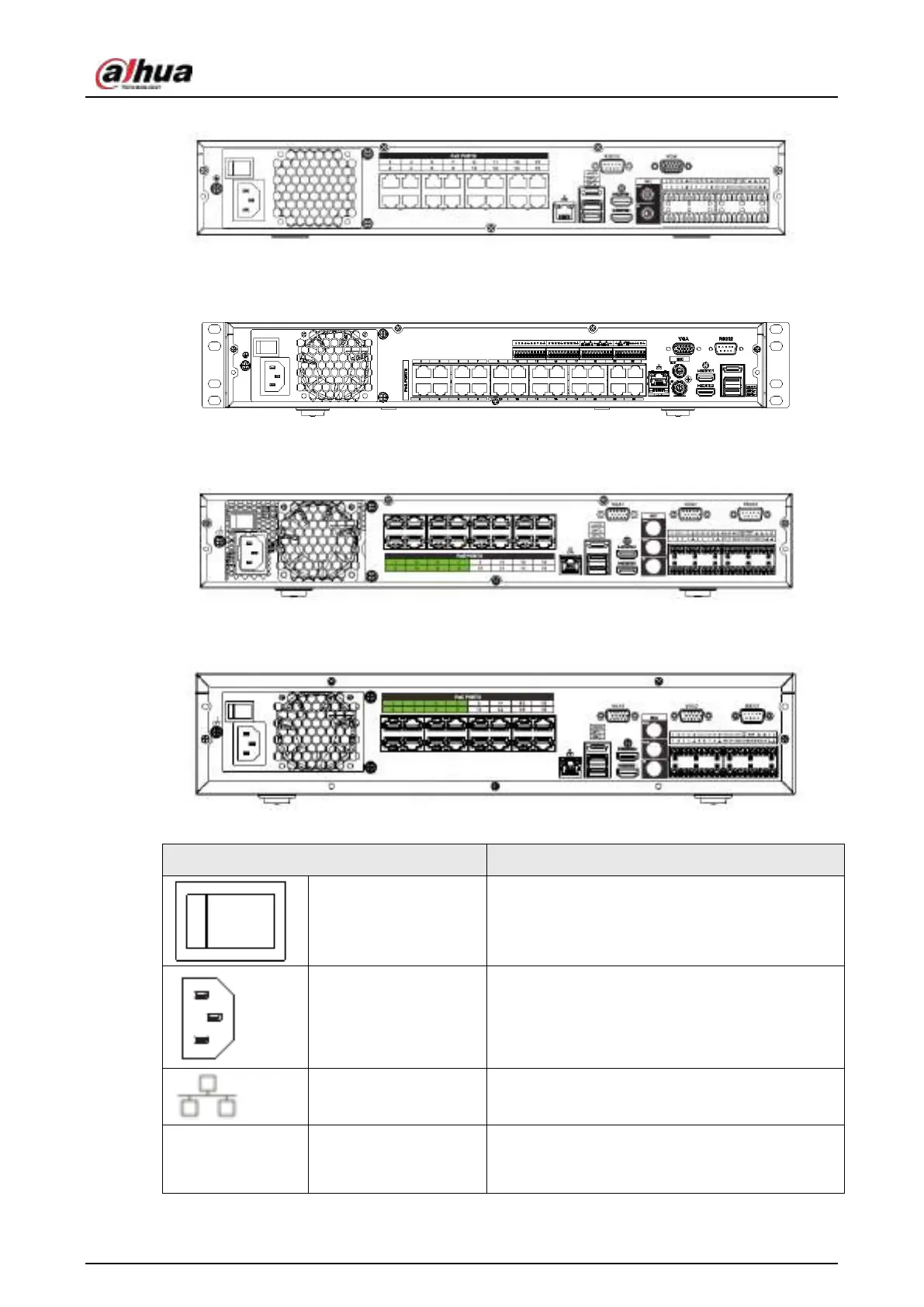

Figure 2-40 Rear panel
The NVR54-24P-4KS2 series rear panel is shown as below.
Figure 2-41 Rear panel
The NVR54-16P-4KS2E series rear panel is shown as below.
Figure 2-42 Rear panel
The NVR58-16P-4KS2E series rear panel is shown as below.
Figure 2-43 Rear panel
Table 2-19
Name Function
Power switch Power on-off button
Power input port Input 100–240V AC.
Network port
10M/100M/1000Mbps self-adaptive Ethernet
port. Connect to the network cable.
eSATA eSATA port
External SATA port. It can connect to the device
of the SATA port. Please jump the HDD when
there is peripheral connected HDD.
