normal. X means there is error. - means there is no HDD. If disk is damaged, system
shows as “?”. Please remove the broken hard disk before you add a new one.
 SN: You can view the HDD amount the device connected to. ﹡ means the second
HDD is current working HDD.
 Type: The corresponding HDD properties.
 Total space: The HDD total capacity.
 Free space: The HDD free capacity.
 Status: HDD can work properly or not.
 SMART: Display HDD information. See Figure 3-50.

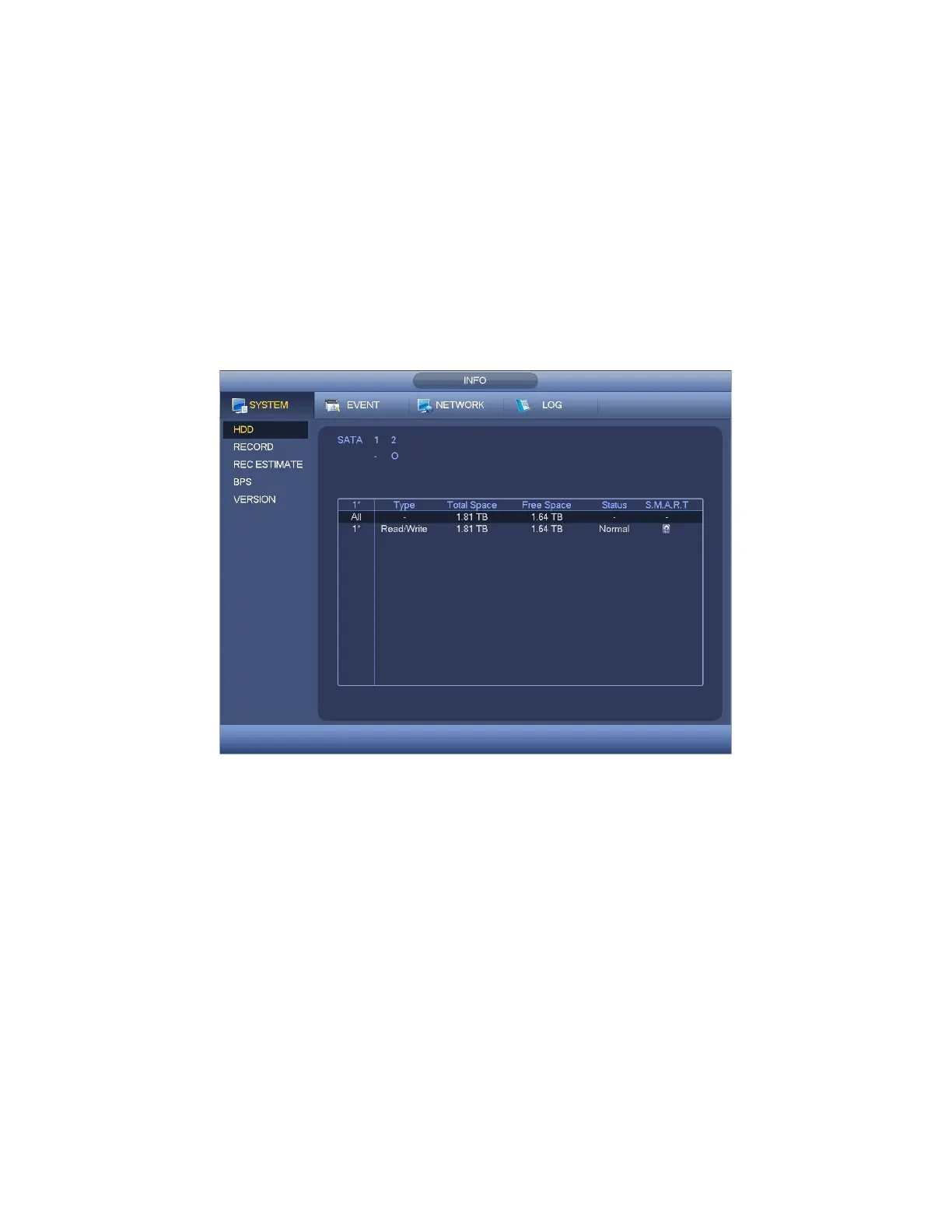

Figure 3-49
Double click one HDD information; you can see the HDD SMART information. . See
Figure 3-50.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
