Dahua XVR User Manual

57

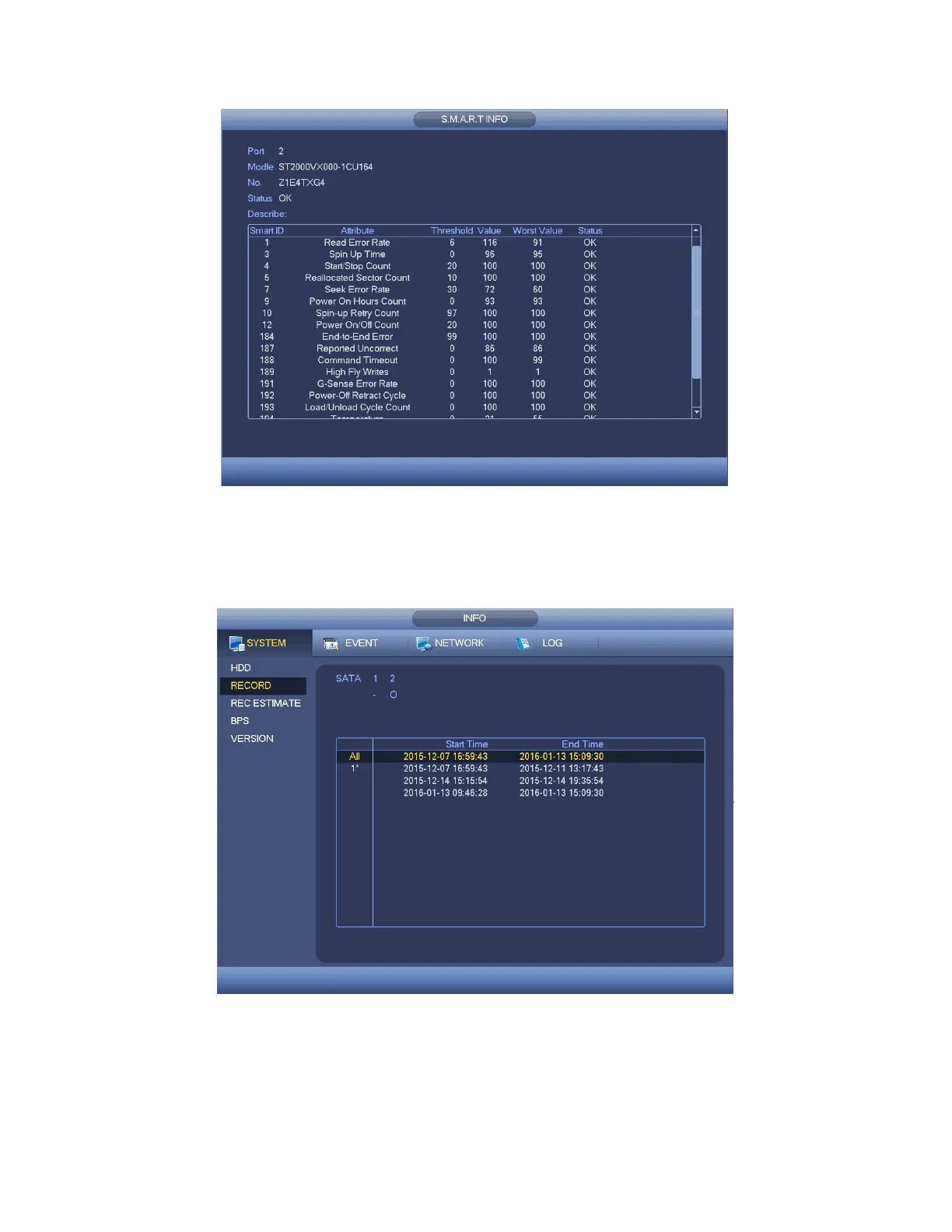

Figure 3-50
3.10.1.2 Record Info
It is to view record start time and end time. See Figure 3-51.
Figure 3-51
3.10.1.3 Record Estimate
System can calculate the record time based on the HDD space, or you can input the
record time you want to calculate the HDD space you need. See Figure 3-52.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
