Figure 2- 43

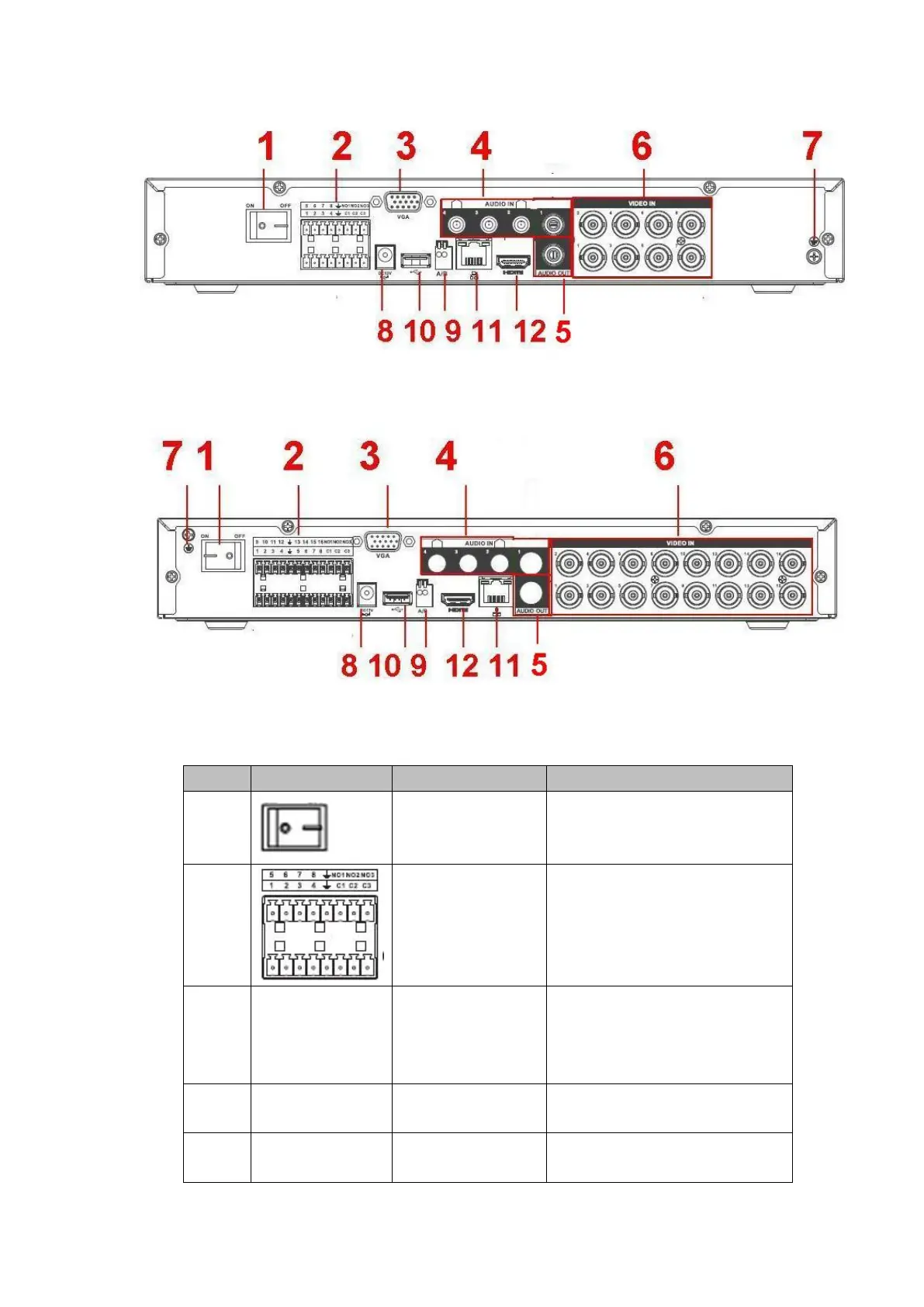

The HCVR4116HE-S2 series rear panel is shown as below. See Figure 2- 44.
Figure 2- 44
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off
button
Power on/off button.
2
Alarm input/Alarm
output
Input/output alarm signal.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
4
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
5
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
