253
SN
Icon
Name
Function
6
VGA
VGA video
output port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
7
Power switch
Power on/off button.
8
GND
Ground port
9
AUDIO OUT
Audio output
port
Connect to sound box and etc to output audio signal.
10
A
RS485
communicatio
n port
RS485_A port. It is the cable A. You can connect to the
control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the control
devices such as speed dome PTZ.
11
Power socket
Power input port
2.2.35 HCVR72XXAN-4M Series

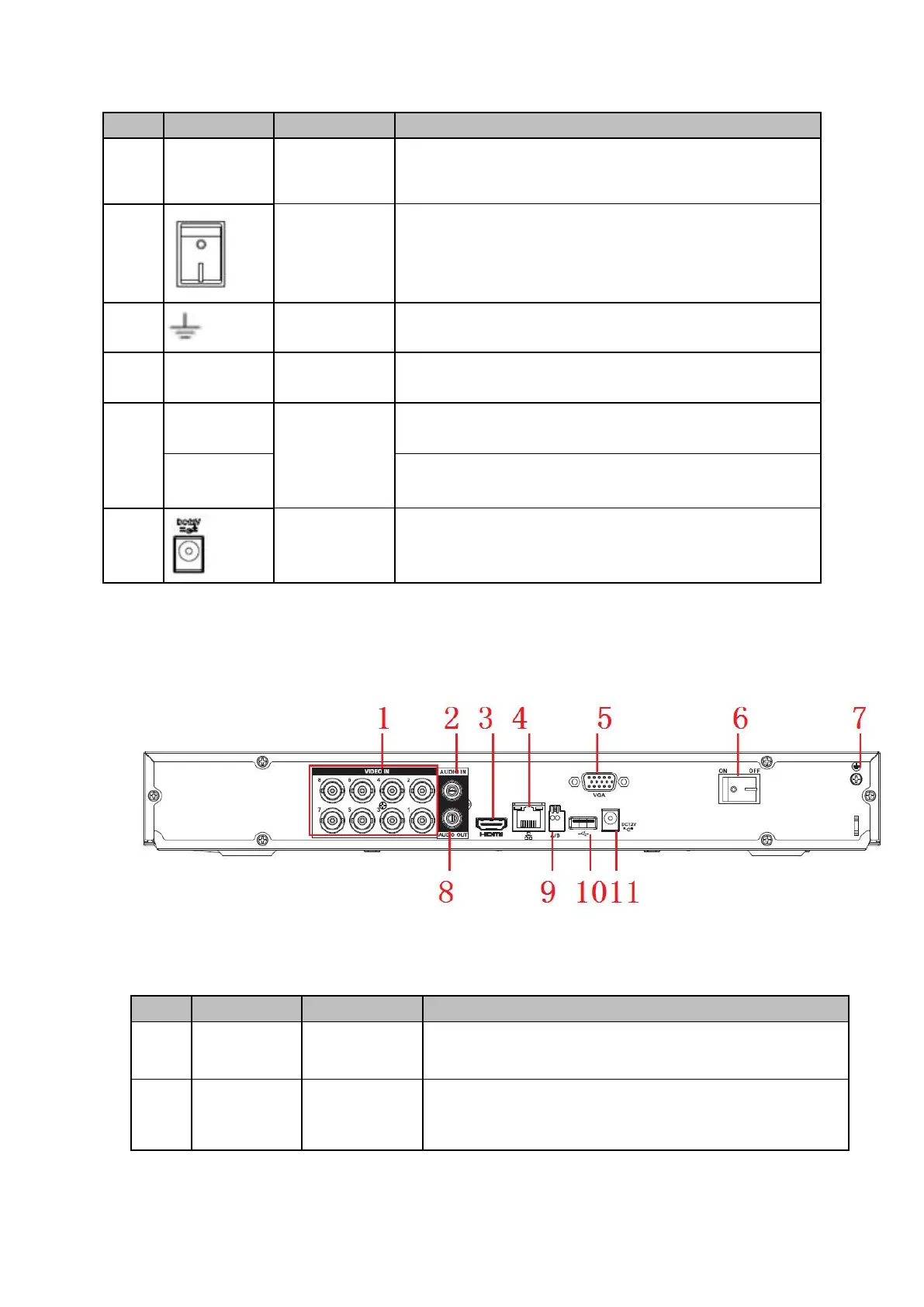

The rear panel is shown as in Figure 2- 83.
The following figure is based on the HCVR7208SAN-4M series product.
Figure 2- 83
Please refer to the following sheet for detailed information.
SN
Icon
Name
Function
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to microphone and etc to input signal.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5116HS and is the answer not in the manual?

Dahua XVR5116HS Specifications

General IconGeneral
USB Interface2 USB 2.0 ports
Power SupplyDC 12V/2A
Video Output1 HDMI, 1 VGA
Operating SystemEmbedded Linux
Video CompressionH.264+/H.264
Analog Camera Input16 channel, BNC
IP Camera InputUp to 16 channels
Audio In/Out1/1, RCA
Display Resolution1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface1 RJ-45 Port (10/100 Mbps)
HDD1 SATA port, up to 6 TB
Dimensions260 mm × 238 mm × 48 mm (W × D × H)
Smart FunctionsSMD Plus
VGA Output1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature-10°C to +55°C
Operating Humidity10%–90% (RH), non-condensing
