Dahua XVR5116HS User Manual

499

1: Fisheye: Click to adjust fisheye installation mode and display mode. See Figure
5- 16. Please note this function is for some series only.

2: Digital zoom: Click this button and then left drag the mouse in the zone to zoom in.
right click mouse system restores original status.

3: Local record. When you click local record button, the system begins recording and
this button becomes highlighted. You can go to system folder RecordDownload to
view the recorded file.

4: Snapshot picture. You can snapshot important video. All images are memorized in
system client folder PictureDownload (default).

5: Audio :Turn on or off audio.(It has no relationship with system audio setup )

6: Close video.
5.6.1 Fisheye de-warp

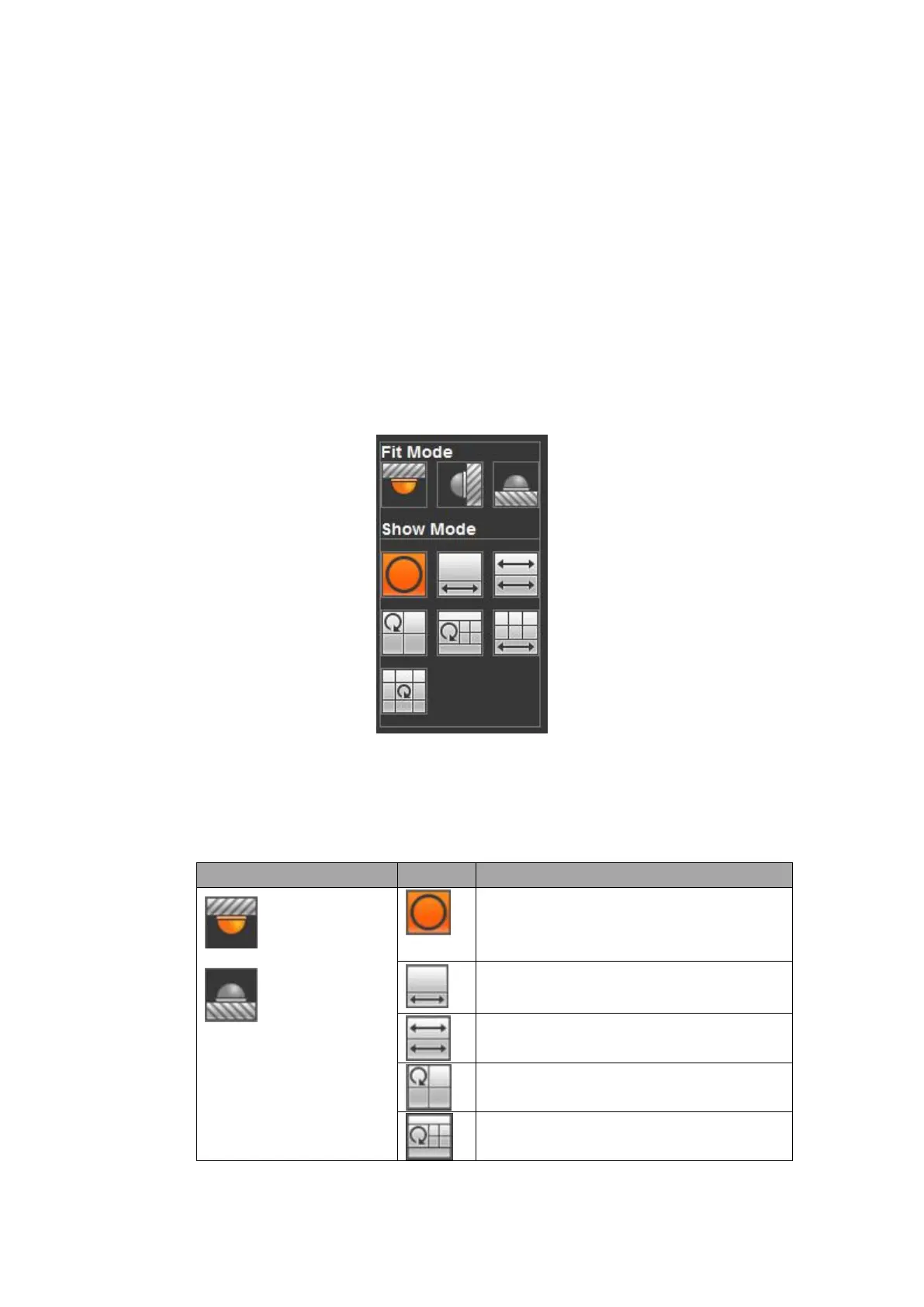

Fisheye de-warp interface is shown as in Figure 5- 16.
Figure 5- 16
There are three installation modes: ceiling mount/wall mount/ground mount. The
different installations modes have different de-warp modes.
Please refer to the following sheet for detailed information.
Installation modes
Icon
Note
（Ceiling mount）
（Ground mount）
360°panorama original view
1 de-warp window+1 panorama
stretching
2 panorama stretching view
1 360° panorama view+3 de-warp
windows
1 360°panorama view+4 de-warp
windows

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
