upper-level.

The following figure for reference only. Slight difference may be found on the user
interface.

Window split mode: You can select window amount and then select channels.

Previous screen/next screen: Click it to go to the previous screen/next screen.

PTZ: Click it to go to PTZ interface.

Auto focus: Please make sure you connected network camera supports this function.

Color setting: Set video corresponding information.

Display: Set video output rate.

Face search: It is to display human face list and view human face record.

Search: Click it to go to Search interface to search and playback a record file.

Record control: Enable/disable record channel.

Alarm output: Enable/disable alarm output function.

Remote device: Click it to add remote device.

Video matrix: Set video matrix tour channel and interval.

Main menu: Go to system main menu interface.

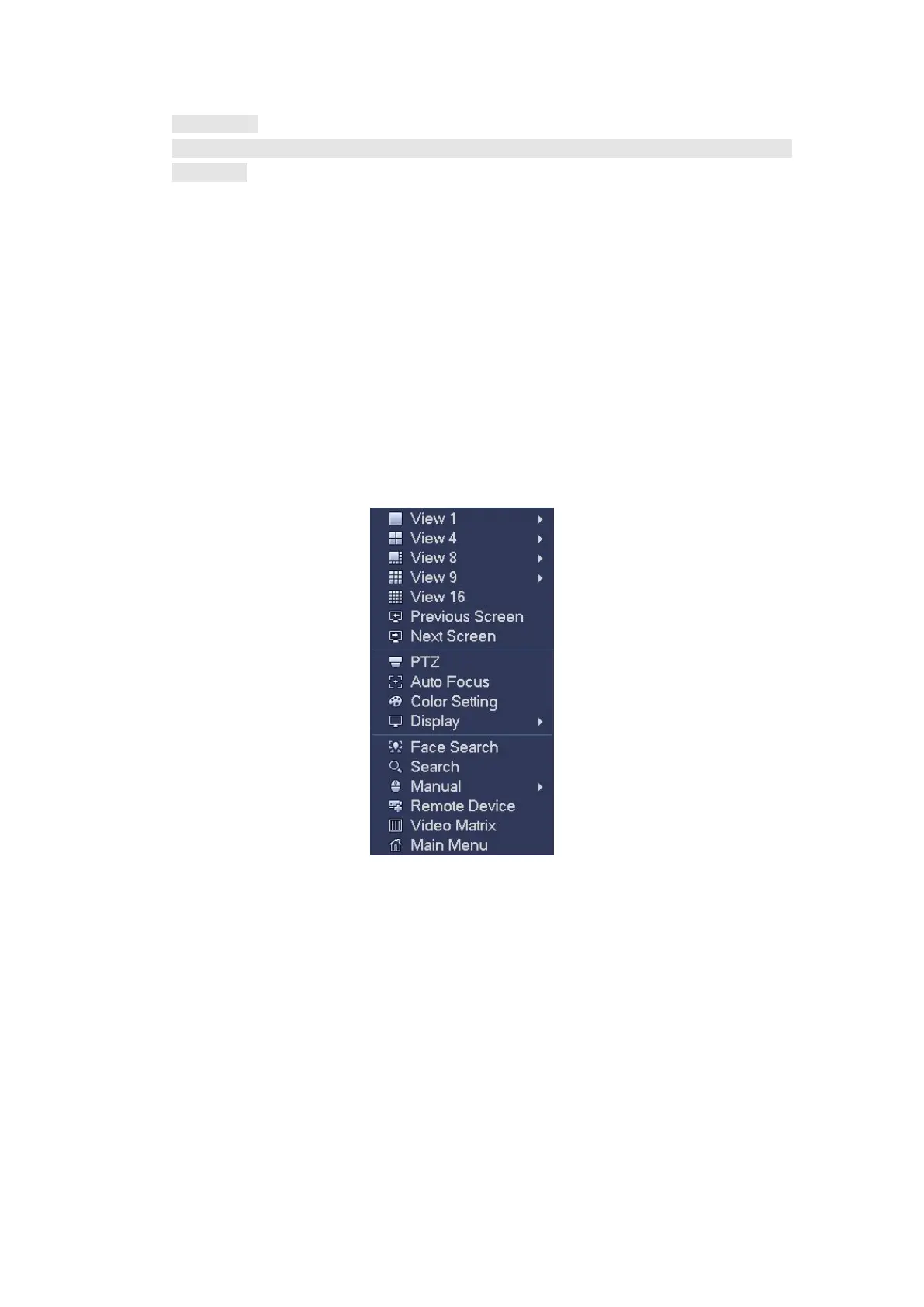

Figure 4- 52
4.3.1 Window Switch
System supports 1/4/8/9-window (The options here depend on your product channel
amount). You can select from the dropdown list. See Figure 4- 53.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
