Dahua XVR5116HS User Manual

370

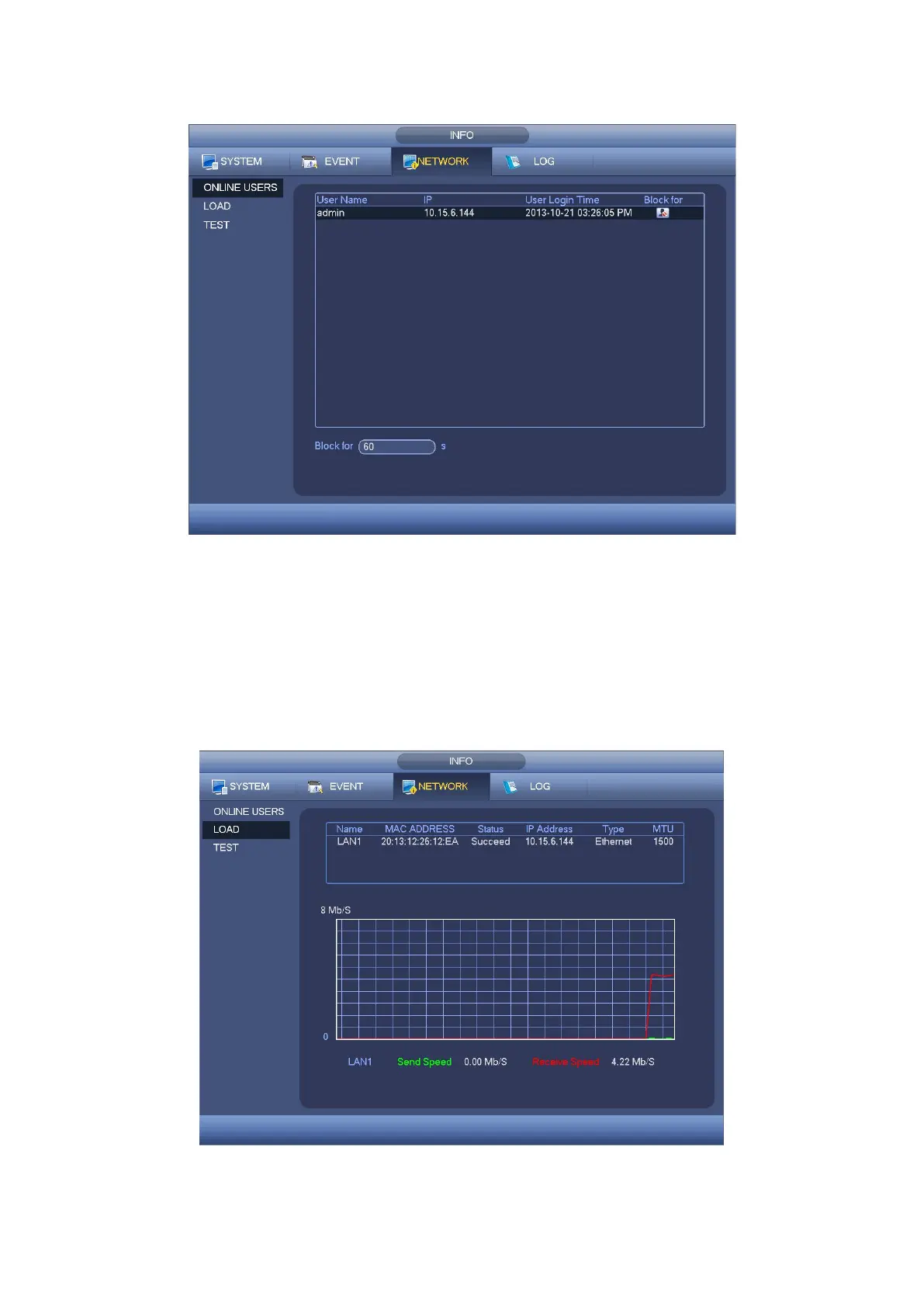

Figure 4- 96
4.8.3.2 Network Load
Network load is shown as in Figure 4- 97. Here you can view the follow statistics of the
device network adapter.
Here you can view information of all connected network adapters. The connection status
is shown as offline if connection is disconnected. Click one network adapter, you can view
the flow statistics such as send rate and receive rate at the top panel.
Figure 4- 97

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
