Dahua XVR5116HS User Manual

345
4.3.9 Record Control
Please refer to chapter 4.9.4.5 for detailed information.
4.3.10 Alarm Output
Please refer to chapter 4.9.3.10 for detailed information.
4.3.11 Remote Device
Please refer to chapter 4.9.1.1 for detailed information.
4.3.12 Video Matrix
Please refer to chapter 4.9.5.3 for detailed information.
4.3.13 Main menu
Please refer to chapter 4.6 for detailed information.
4.4 Navigation Bar
You need to go to the Main menu->Setting->System->General to enable navigation
bar function; otherwise you cannot see the following interface.

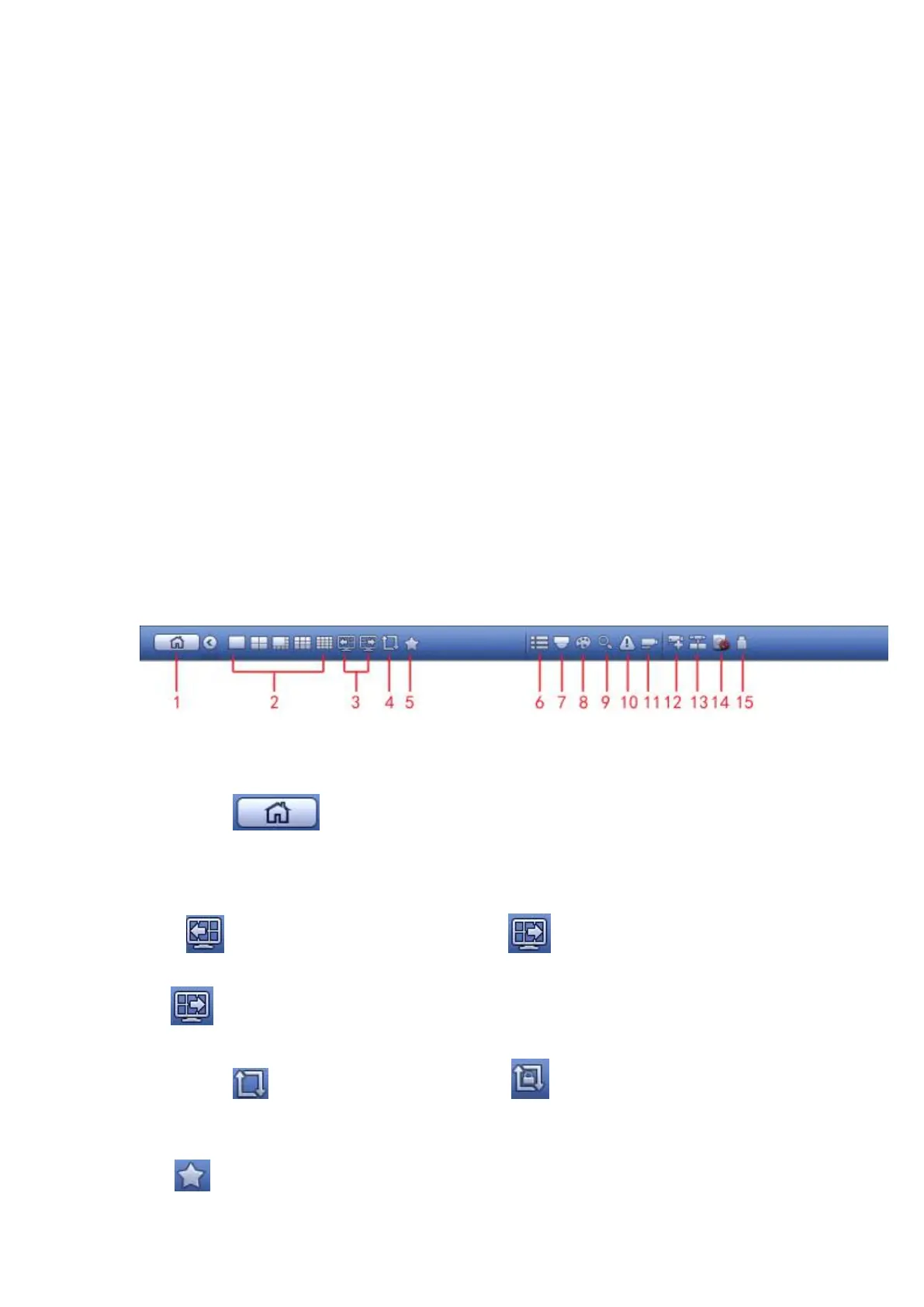

The navigation bar is shown as below. See Figure 4- 66.
Figure 4- 66
4.4.1 Main Menu
Click button to go to the main menu interface.
4.4.2 Output Screen
Select corresponding window-split mode and output channels.
4.4.3 Previous/Next Screen
Click to go to the previous screen, click to go to the next screen. For
example, if you are using 4-split mode, the first screen is displaying the channel 1-4,
click , you can view channel 5-8.
4.4.4 Tour
Click button to enable tour, the icon becomes , you can see the tour is in
process.
4.4.5 Favorites
Click , system pops up add/edit favorites. See Figure 4- 67.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
