Dahua XVR5116HS User Manual

269
SN
Icon
Name
Note
6
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
7
GND
Ground end
8
AUDIO
OUT
Audio output
port
Connect to video output device such as sound box.
9
A
RS485
(RS-485)
communicati
on port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
10
Power input
port
Input 12V DC.
11
Power switch
Power on/off button.
12
Power cable
fastener
Use clamp to secure the power cable on the device in
case there is any loss.
2.2.39 HCVR720XAN-4K Series

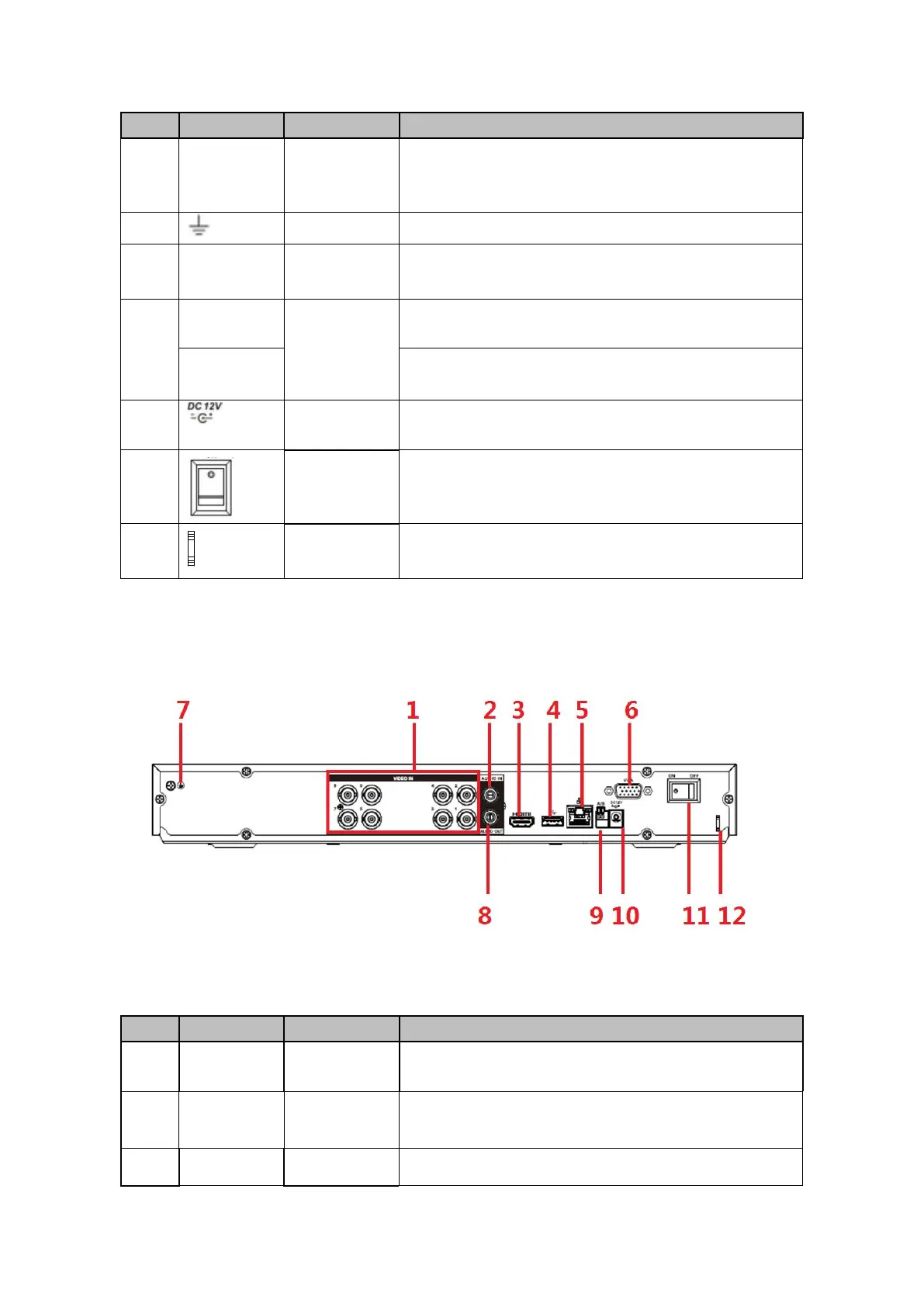

This series product rear panel is shown as in Figure 2- 91.
Here we use HCVR7108AN-4K for an example.
Figure 2- 91
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
3
HDMI
High
High definition audio and video signal output port. It

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
