Dahua XVR5116HS User Manual

580

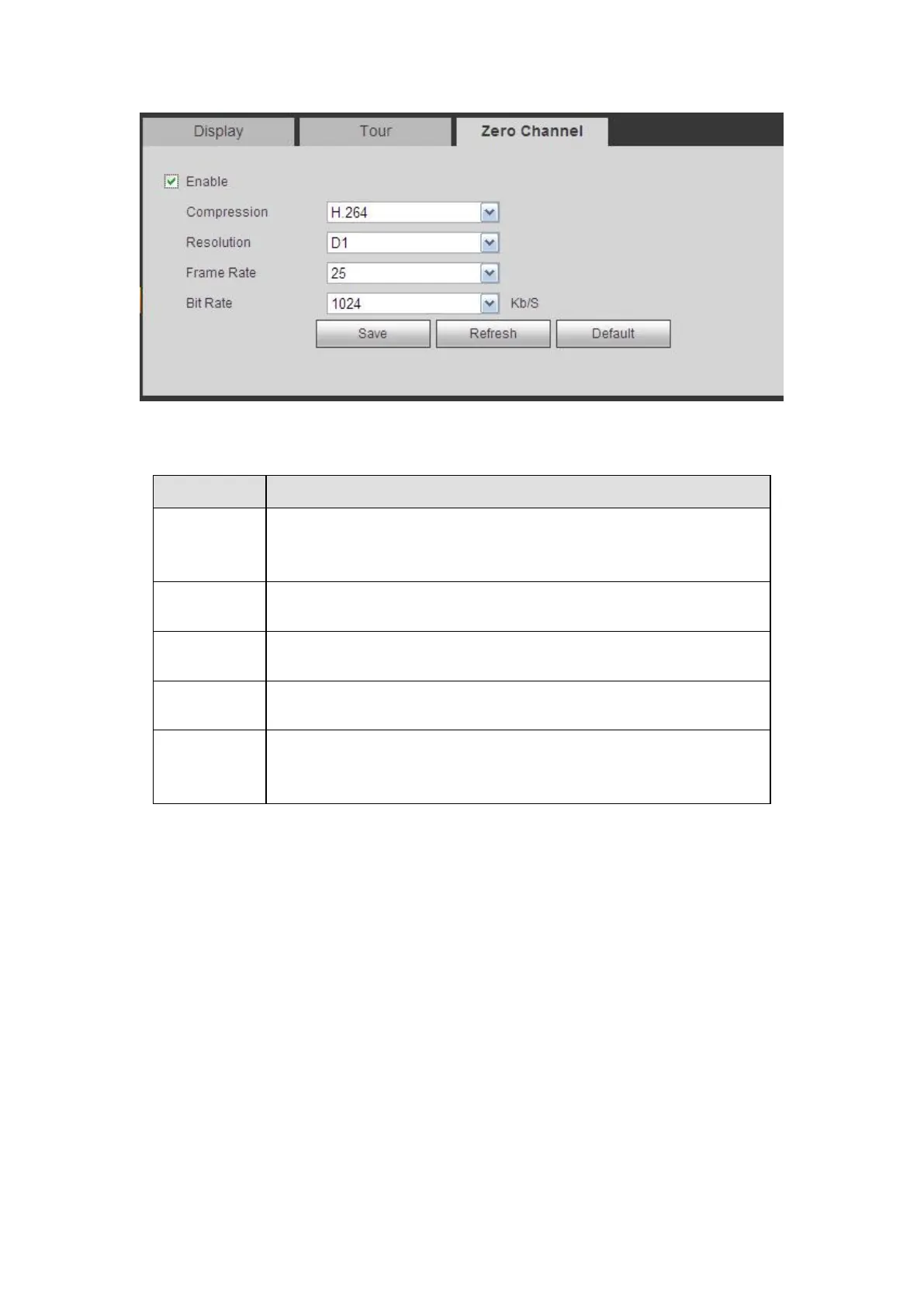

Figure 5- 119
Please refer to the following sheet for detailed information.
Parameter
Function
Enable
This function is disabled by default. Check the box here to enable
this function so that you can control the zero-channel encoding
function at the WEB.
Compression
System default setup is H.264. You can set according to device
capability.
Resolution
The resolution value may vary due to different device capabilities.
Please select from the dropdown list.
Frame rate
The frame rate value may vary due to different device capabilities.
Please select from the dropdown list.
Bit Rate
The default setup is 1024Kb/S. The bit rate value may vary due to
different device capabilities and frame rate setups. Please select
from the dropdown list.
5.10.5.3 Video Matrix
The interface is shown as in Figure 5- 120.
Here you can set video output channel and interval.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
