268
SN
Icon
Name
Note
15
eSATA
eSATA port
External SATA port. It can connect
to the device of the SATA port.
Please make sure there is power
supplying when there is peripheral
connected HDD.
16
Network port
1000Mbps Ethernet port
17
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2.2.38 HCR710XH-4K Series

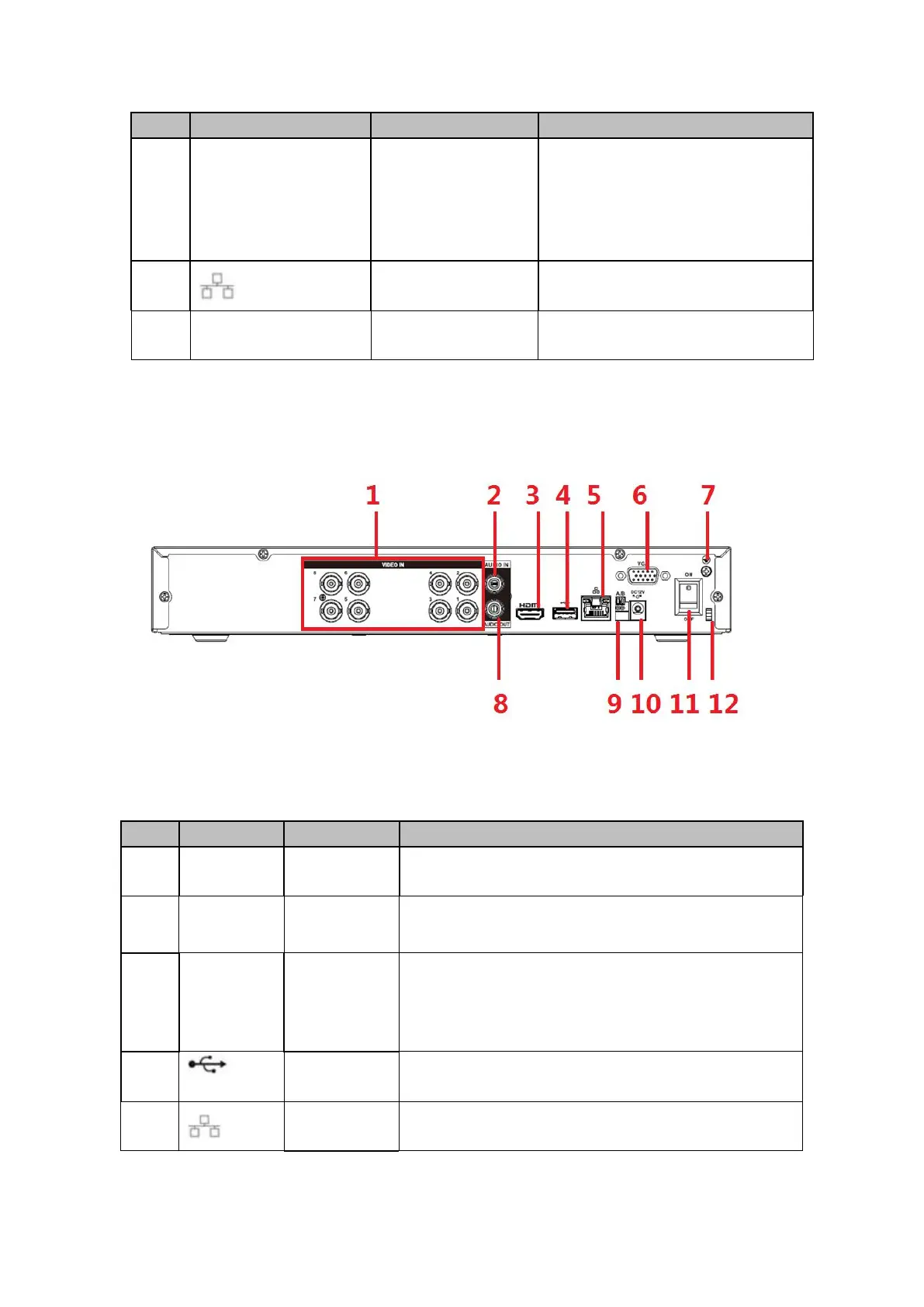

This series product rear panel is shown as in Figure 2- 90.
Here we use HCVR7108H-4K for an example.
Figure 2- 90
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
3
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
4
USB port
Connect to USB storage device, mouse, burning
DVD-ROM and etc.
5
Network port
1000M Ethernet port
