283
4

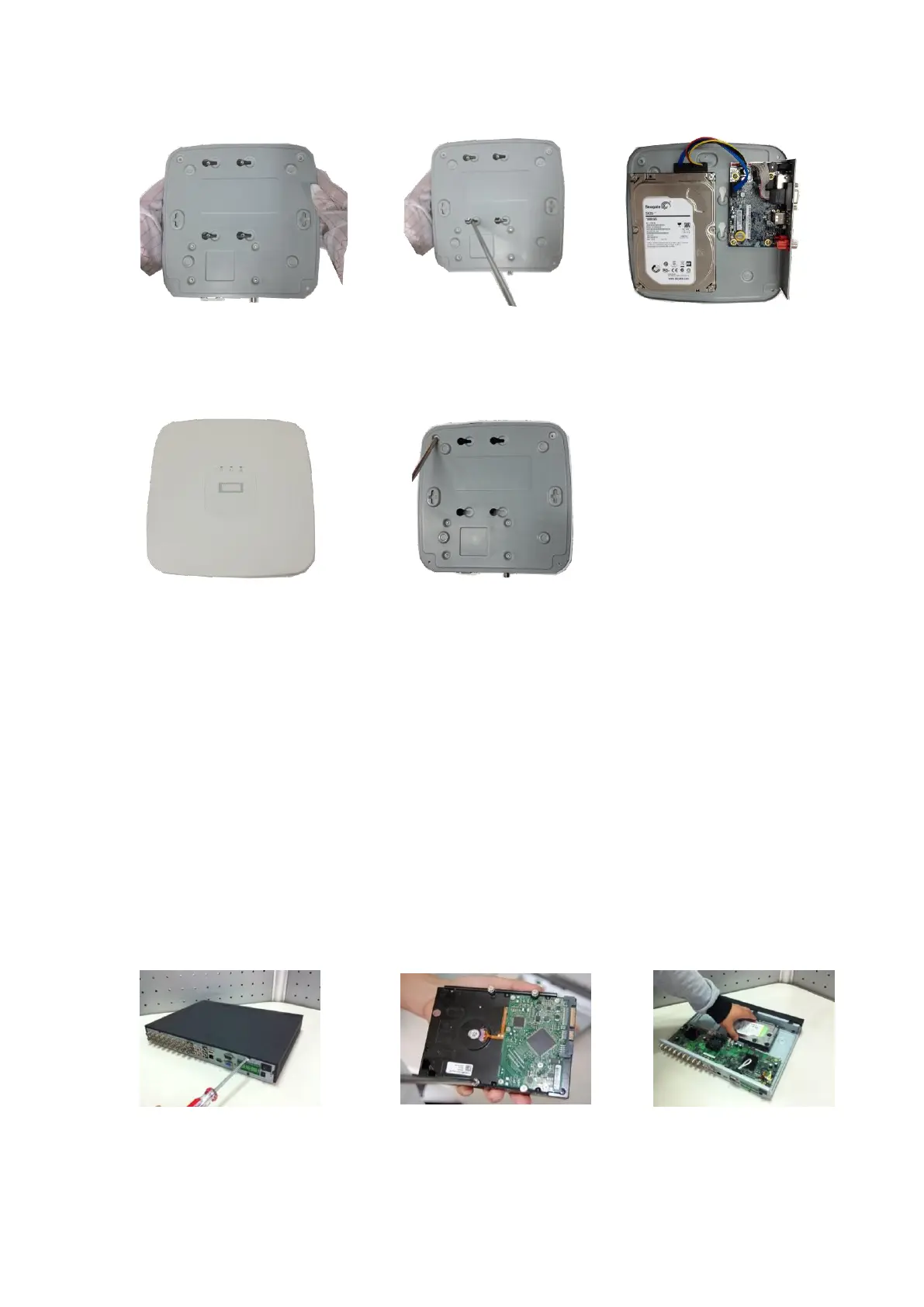

Turn the device upside down and
then turn the screws in firmly.
5
Fix the HDD firmly
.
6
Connect the HDD cable and
power cable.
7
Put the cover in accordance with
the clip and then place the upper cover
back.
8
Secure the screws in the rear panel and the side panel.
3.3.3 Compact 1U and Mini 1U Series
The mini 1U series includes
HCVR51XXH/51XXHC/51XXHE/51XXH-V2/HC-V2/HE-V2/71XXH-V2/71XXHC-V2/7
1XXHE-V2/ HCVR41XXHE-S2/ HCVR51XXH-S2/ HCVR51XXHE-S2/
HCVR710XH-S2/HCVR710XHE-S2/XVR41XXHE/XVR51XXHE/XVR71XXH/XVR71
XXHE/HCVR710XH-4K/XVR51XXH-S2/XVR51XXHE-S2 and etc.
The compact 1U series includes HCVR41XXHS-S2/HCVR2108HS-S2/
HCVR2116HS-S2/HCVR21XXHS-S2/XVR21XXHS/XVR41XXHS/51XXHS/7104HS/
XVR41XXHS-S2/ XVR51XXHS-S2 and etc.
The series DVR has one SATA HDD.
Loosen the screws of the upper cover
and side panel.
Fix four screws in the HDD (Turn
just three rounds).
Place the HDD in accordance
with the four holes in the bottom.
